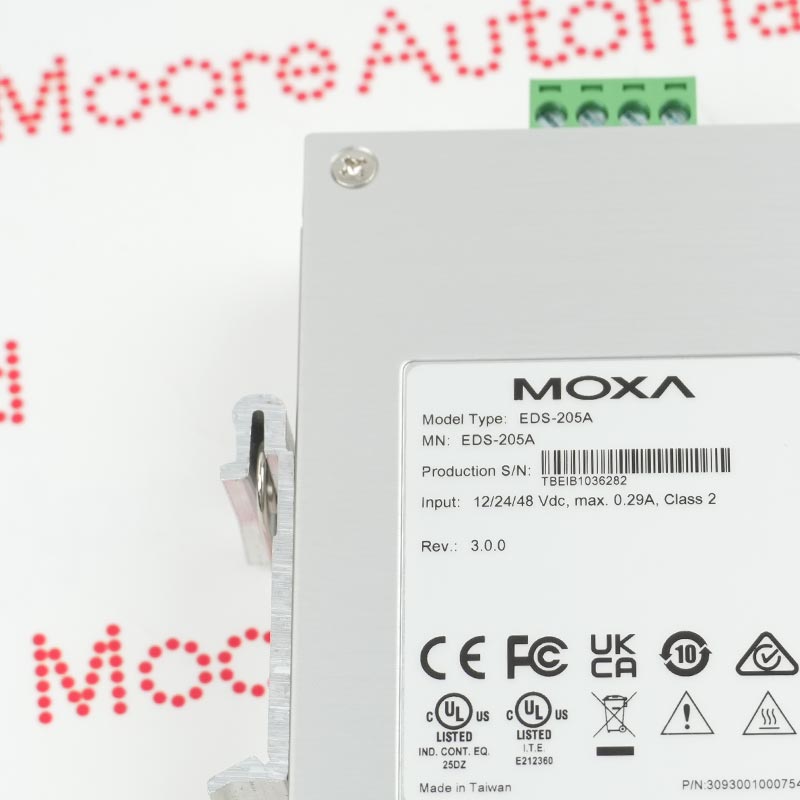

      Moxa EDS-205A
      Moxa EDS-205A
      Moxa EDS-205A
      Moxa EDS-205A
      Moxa EDS-205A
      Moxa EDS-205A
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      EDS-205A

      5-port unmanaged Ethernet switches
      In Stock

      Product Information:

      5-port unmanaged Ethernet switches

      10/100BaseT(X) (RJ45 connector),

      100BaseFX (multi/single-mode, SC or ST

      connector)

      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for EDS-205A

      • Manufacturer:
        Moxa
      • Product Category:
        General Automation
      • Estimated shipping dimensions:
        3 x 11.5 x 7 cm
      • Weight:
        0.175 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • MAC Table Size:
        1 K
      • Packet Buffer Size:
        384 kbits
      • Processing Type:
        Store and Forward
      • Operating Voltage:
        9.6 to 60 VDC
      • Input Voltage:
        12/24/48 VDC, Redundant dual inputs
      • Ethernet Interface:
        Broadcast storm protection
      • Housing:
        Aluminum
      • IP Rating:
        IP30
      • Stock:
        10
      Ask for Quote

      Manuals

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What essential network connectivity does the EDS-205A provide in industrial communication systems?
        The EDS-205A is a 5-port unmanaged Ethernet switch with five 10/100 BaseT(X) RJ45 ports that auto-negotiate speed and support full/half-duplex as well as auto MDI/MDI-X, enabling plug-and-play Layer 2 connectivity without complex configuration.
      • How does the EDS-205A comply with Ethernet standards to ensure interoperability and robust data flow?
        The EDS-205A adheres to IEEE 802.3 (10 Mbps), IEEE 802.3u (100 Mbps), and IEEE 802.3x (flow control) standards, ensuring deterministic and compatible communication with industrial devices and controllers across 10/100 Mbps networks.
      • What power input range and protections are supported by the EDS-205A for reliable operation in harsh environments?
        The EDS-205A supports a broad operating voltage range from 9.6 to 60 VDC with redundant dual 12/24/48 VDC inputs, overload current protection, and reverse polarity protection—features that enhance robustness against power anomalies typical in industrial settings.
      • What physical installation options and mechanical properties does the EDS-205A offer for industrial deployments?
        The EDS-205A features a rugged IP30 aluminum housing that is DIN-rail mountable, with optional wall-mounting kits available, and compact dimensions (~30 × 115 × 70 mm) suitable for tight control panels or field cabinets.
      • How large is the forwarding capacity of the EDS-205A, and what are its buffering characteristics for traffic management?
        The EDS-205A switch includes a 1 K MAC address table and a 384 kbit packet buffer, using store-and-forward processing to optimize accurate frame delivery and minimize collision or frame errors under varying traffic loads.
