Features:
- Modicon Premium Automation platform
- Analog input module, Modicon Premium
- 4 high level inputs, 16 bits conversion, 660mA at 5VDC
This module features four independent channels capable of receiving various standard industrial signals, such as voltage (+/-10V, 0-10V, etc.) and current (0-20mA, 4-20mA). With its high resolution and interference immunity, this module is widely used in industrial process control applications requiring high precision.
It boasts comprehensive diagnostic and safety mechanisms, supporting circuit breaker detection, overflow monitoring, and independent parameter configuration between channels, greatly simplifying on-site commissioning. Furthermore, it can seamlessly exchange data with advanced controllers, providing a fast sampling cycle to ensure real-time monitoring of critical analog parameters such as temperature, pressure, or flow rate.

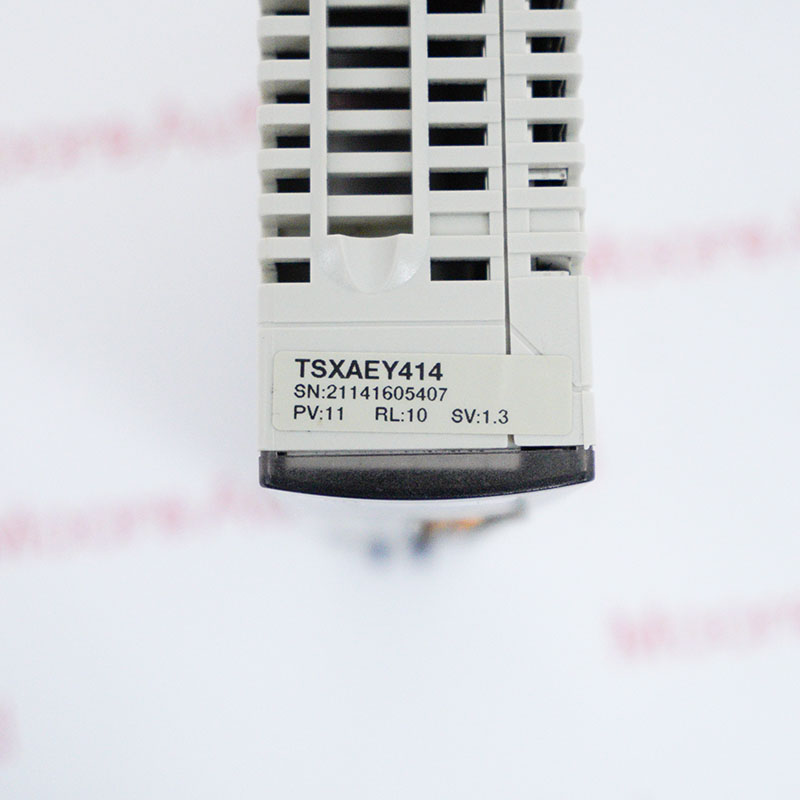

The TSXAEY414 Schneider Electric Analog input module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric TSXAEY414 Analog input module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
10…95 % without condensation for operation
5…95 % without condensation for storage
- Commercial Status: This module was discontinued on October 18, 2022.
- Service Life: Standard maintenance and repair services are expected to end on December 31, 2026.
- Alternative Product: Schneider Electric recommends the Modicon X80 BMXART0414 module as a modern alternative.
