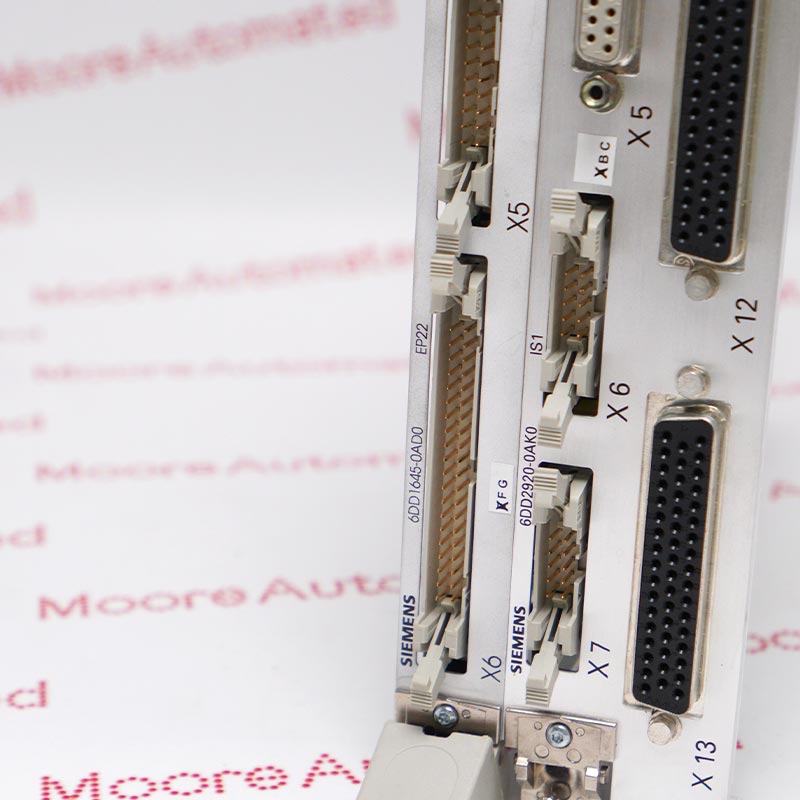

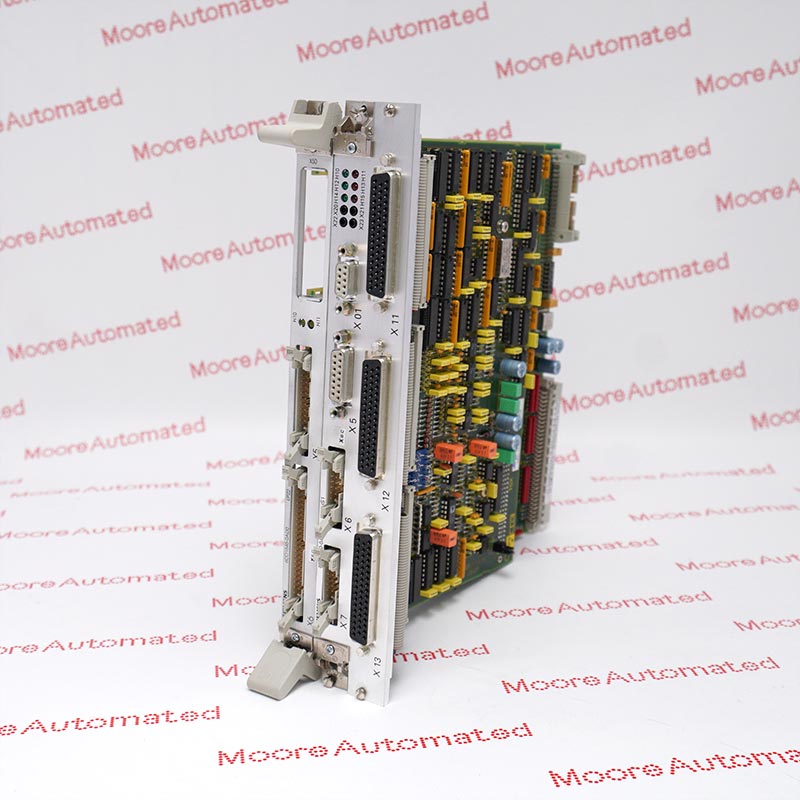

The Siemens 6DD1645-0AD0 is a SIMADYN D EP22 signal processor module from the SIMADYN D family. It is designed for legacy SIMADYN D control systems requiring EP22 signal processing. The complete order number identifies the exact Siemens hardware configuration, so the full model suffix must be used for engineering, compatibility checks and spare-part replacement.
In its documented technical configuration, the Siemens 6DD1645-0AD0 provides EP22 signal processor, Siemens reference 465 645 9003 00, SIMADYN D subrack integration and Associated replacement assembly 6DD2920-0AN1. These characteristics define the available control, communication, visualization, safety or motion resources and must be matched to the connected system. The corresponding Siemens PDF should be used to verify ratings, interfaces, environmental limits and configuration requirements.
For field installation of the Siemens 6DD1645-0AD0, Isolate the subrack, follow Siemens ESD handling, verify the EP22 slot and preserve the original control project. Preserve the original engineering project, firmware context, parameter data and wiring records, then perform functional testing after commissioning. Siemens lifecycle and replacement planning should also consider 6DD2920-0AN1 replacement assembly for service.
