Features:
- VM600 CPUM and IOCN modular CPU card and input/output card
- Front-panel alarm reset (AR) button
- Communications redundancy with multiple fieldbuses: Ethernet and/or serial
The VM600 CPUM and IOCN modular CPU card, along with input/output cards, form a pair of rack controllers and communication interface cards, which can be used as system controllers and data communication gateways for the VM600 rack-mounted machinery protection system (MPS) and/or condition monitoring system (CMS) in the Meggitt Vibro-Meter® product line.
The CPUM/IOCN card pair is used with the VM600 ABE04x system rack. The CPUM card can be used independently or paired with its associated IOCN card, depending on application/system requirements. The CPUM is a double-width card, occupying two VM600 rack slots. The IOCN is a single-width card, occupying one VM600 slot. The CPUM is installed at the front of the rack (slots 0 and 1). The associated IOCN is installed at the rear of the rack, in a slot directly behind the CPUM (slot 0). Each card connects directly to the rack backplane via two connectors.

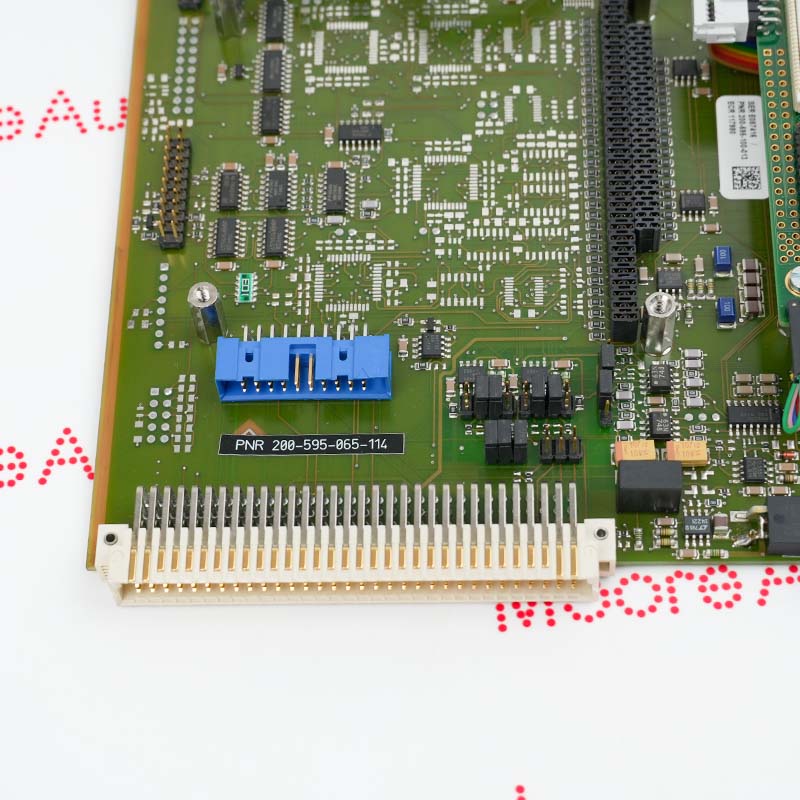

The VM600 CPU M 200-595-065-114/200-595-100-013 Vibro-Meter CPU module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter VM600 CPU M 200-595-065-114/200-595-100-013 CPU module datasheet(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The rack controller simplifies the installation, configuration, management, and daily operation of the VM600 machine monitoring system. CPUM/IOCN can manage the configuration of MPC4/IOC4T and AMC8/IOC8T card pairs, including hot-swapping. It can also manage the configuration of XMx16/XIO16T card pairs, eliminating the need for a VibroSight server in some applications.
The VM600 system is widely used in the power generation and oil and gas industries to protect and monitor critical rotating machinery.
Target Equipment: The system monitors high-value assets, including gas turbines, steam turbines, water turbines, generators, compressors, pumps, fans, and motors.
System Management: CPU M provides "one-click" configuration management, allowing users to configure all cards in the rack simultaneously via Ethernet or serial connection.
Data Integration: The system utilizes industry-standard protocols such as Modbus RTU/TCP and PROFINET to bridge the gap between raw vibration/mechanical data and plant-wide control systems (DCS or PLC).
Predictive Maintenance: By acquiring and processing high-resolution vibration data, the system enables operators to detect potential signs of failure early, facilitating the development of proactive maintenance plans.
