Features:
- This module establishes a communication bridge between the PROCONTROL process stations and external computing systems
- It typically links the automation system with Process Operator Stations (POS), Programming, Diagnosis and Display Systems (PDDS), or Control Diagnosis Stations (CDS)
- Its operation is not localized; it can communicate data across the entire PROCONTROL network infrastructure

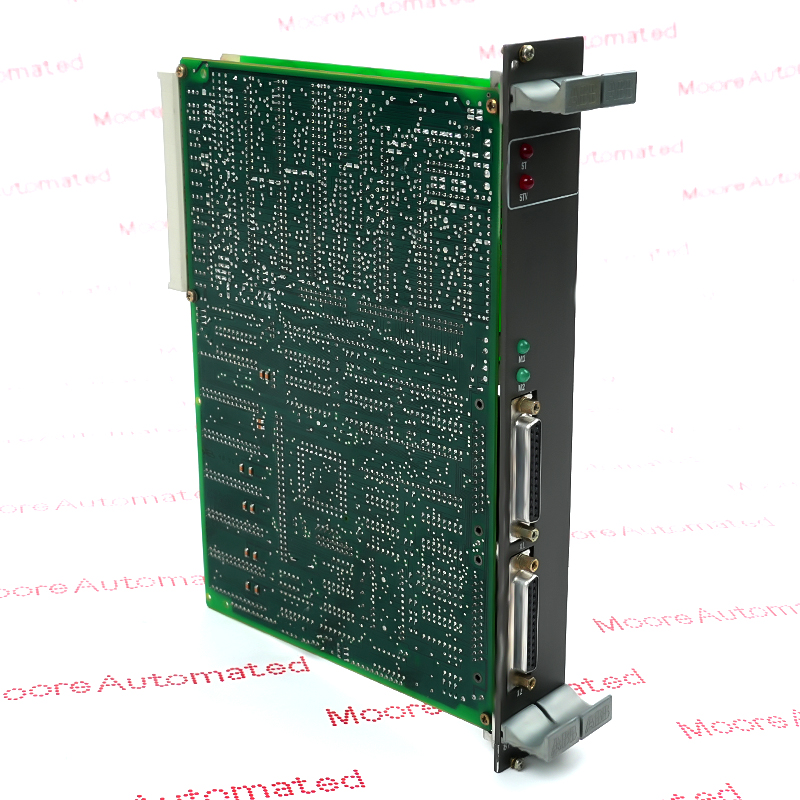

The ABB 87TS01K-E (GJR2368900R1551) is a high-performance coupling/interface module designed specifically for industrial automation control systems. As a critical communication bridge within the system, its core function is to enable bidirectional data interconnection between external hosts, serial devices, or third-party computers and the PROCONTROL industrial control system. Through this module, the system can easily connect to operator workstations (POS), programmable diagnostic display systems (PDDS), and control diagnostic stations (CDS), thereby expanding the data coverage and management depth of the entire control network.
This module boasts high compatibility and robust industrial protection capabilities. It not only features standard RS-232C or RS-422 serial communication interfaces but also ensures high precision and real-time stability for long-distance data transmission. In practical applications, it supports system developers in remotely diagnosing faults, modifying parameters in real time, and intuitively monitoring data from the underlying PLC programmable controller.
The GJR2368900R1551 87TS01K-E ABB Communication coupling module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2368900R1551 87TS01K-E Communication coupling module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1.Serial Protocol: This module uses a dedicated serial interface configuration, typically supporting RS-232C or RS-422 standard connections.
2.Industrial Applications: Primarily used in large power plants, it is a critical spare component in GE gas turbine and steam turbine control systems.
3.Design Flexibility: The suffix R1551 defines specific hardware versions, firmware versions, and connection configurations within the 87TS01 product line.
1. Human-Machine Interface (HMI) and Operator Connectivity:
Process Operator Station (POS) Connectivity: Connects the internal controller bus to a high-performance HMI computer.
Real-time Visualization: Enables plant operators to monitor real-time numerical values, sensor data, and system metrics on graphical displays.
Command Transfer: Allows users to securely transfer commands issued from workstations to the plant bus network, enabling safe changes to process parameters.
2. Deep System Diagnostics and Health Auditing:
Control Diagnostic Station (CDS) Connectivity: Works with dedicated diagnostic hardware to extract system logs over long operating cycles.
P14 Web/Software Diagnostics: Operates in a legacy or upgraded P14 diagnostic environment (e.g., P14 Diagnosis 1.0), using serial setup to precisely pinpoint faults in localized physical components.
Module Register Auditing: Allows dedicated analyzers to delve directly into target station registers, helping to track intermittent hardware failures without interrupting plant operations.
3. Engineering, Programming, and Optimization
PDDS Interface Deployment: Serves as a local connection point for the Programming, Diagnostic, and Display System (PDDS).
Firmware and Control Loop Optimization: Provides field engineers with a serial line entry point to safely push logic optimizations, setpoint adjustments, or program updates to the processing module.
