Features:

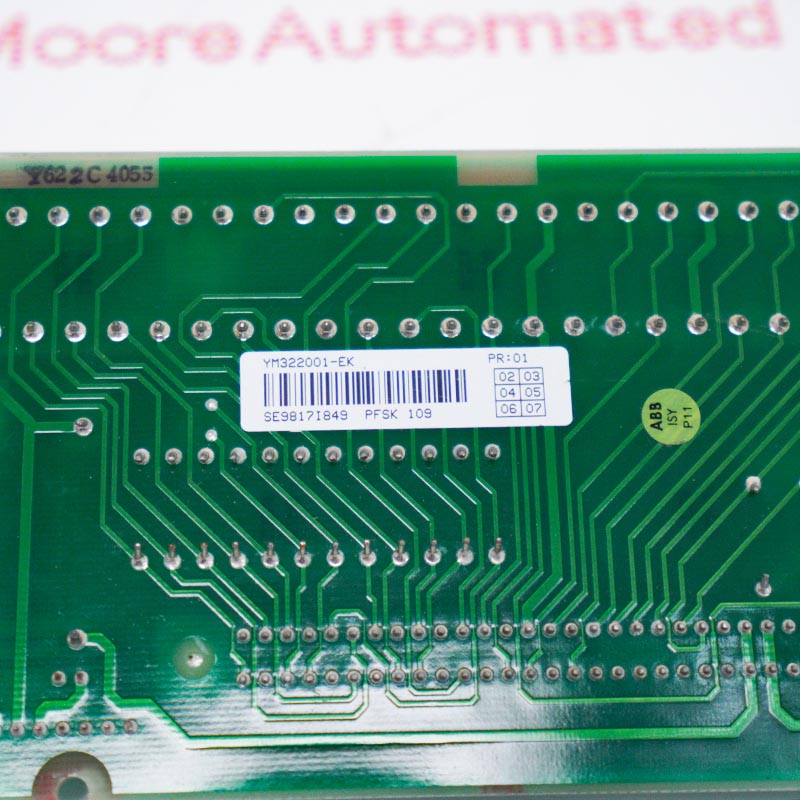

- Robotics Industrial Connection Unit Board
- This board, acting as a connection unit, is installed inside the control cabinet
- Built-in optical/electromagnetic signal isolation (rated ≥ 500 V)
As the electrical hub of large-scale automation networks, PLCs (Programmable Logic Controllers), or fieldbus systems, its main function is to establish a stable and standardized physical connection channel between the core control board (such as a channel control board or main processor module) and external field devices. It is responsible for centrally aggregating, classifying, and terminating complex field signal lines or main field cables, playing a crucial "signal bridging" role in industrial production environments.
Its circuit boards typically integrate precision isolation components and filter networks to effectively block reverse interference from external power grid surges, static electricity, and high-frequency noise to the internal sensitive microprocessor, thereby protecting the main system from overvoltage damage.
The PFSK109 YM322001-EK ABB Industrial Connection Unit Board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB PFSK109 YM322001-EK Industrial Connection Unit Board INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PFSK109 module enables high-speed, noise-resistant serial electrical link communication. In a typical rolling mill environment, it works in conjunction with the ABB Pressductor® flatness measurement system. The module routes signals from the measuring roll to the central processing unit and is equipped with onboard DIP switches/jump wires for appropriate line termination matching based on the layout topology.
Its operating principle is entirely based on the physical layer electrical mapping and distributed interface routing mechanism of modern industrial buses. During system operation, physical electrical signals from various sensors or external control consoles are connected to the terminals of the PFSK109 via external wiring harnesses.
The internal circuit board (PCB) employs specific copper foil routing logic to convert these dispersed input/output signals into socket pin definitions that match standard buses or dedicated flat cables (such as ribbon cables connecting channel boards).
During this signal routing process, built-in protection circuitry performs transient voltage suppression (TVS) and anti-interference filtering on the signals, ensuring that the signal waveform is transmitted to the main control system in real time with extremely high fidelity and extremely low transmission loss, thereby achieving seamless integration of low-level field data and high-level decision-making algorithms.
