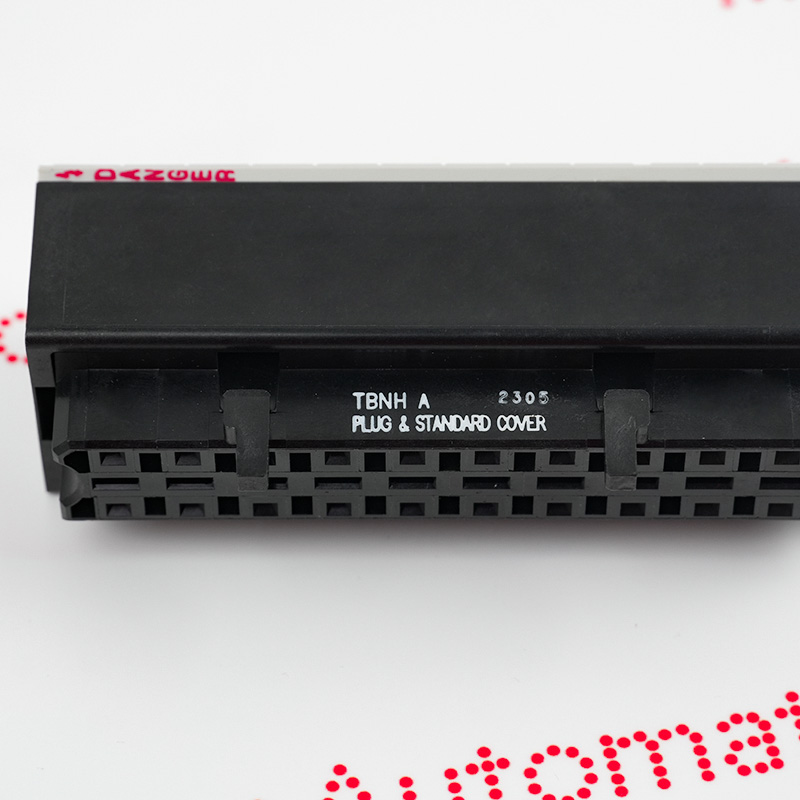

      1756-TBNH

      ControlLogix removable terminal block
      In Stock

      Product Information:

      removable terminal block or RTB module.

      ControlLogix series module

      The wires that are connected to the 1756-TBNH

      removable terminal block should all be the same

      size and they should either be all solid wires or

      all stranded wires because a mix of solid and

      stranded wires is not supported by the block.


      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 1756-TBNH

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC System
      • Spare Part Number:
        1756TBNH 1756-TBNH/A
      • Estimated shipping dimensions:
        11.7x3.4x4.7cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Line:
        ControlLogix
      • Module Type:
        Terminal Block
      • Clamp Type:
        Screw-Clamp
      • Pins:
        20-Pin Connection
      • Backplane Current (5Volts):
        1,200 milliamps
      • Backplane Current (24 Volts):
        2.5 milliamps
      • Power Dissipation (Max):
        6.19 Watts
      • Wire Size:
        20 AWG
      • Operating Temperature:
        0°C to +60°C
      • Stock:
        60
      Ask for Quote

      Revisions

      Revision Part #

      Also known as

      1756-TBNH/A
      1756-TBNH Ser A, Series A, Rev A
      Get Parts Quote

      Information

      Overview Manuals Principle

      Features:

      • ControlLogix removable terminal block
      • Removable terminal block or RTB module
      • ControlLogix series by Allen-Bradley/Rockwell Automation
      All wires connected to the 1756-TBNH detachable terminal block must be of the same size and must be either all single-strand or all multi-strand, as this terminal block does not support mixed single-strand and multi-strand wiring. This detachable terminal block is a NEMA clip-on terminal block. The 1756-TBNH detachable terminal block can connect up to 20 wires at a time.

      The Allen-Bradley 1756-TBNH is a detachable terminal block (RTB) for the 1756 I/O module. It is an accessory for the I/O module and must be ordered separately. The 1756-TBNH provides flexible wiring for connecting the 1756 I/O module and industrial equipment. It inserts into the front of the I/O module. The 1756-TBNH detachable terminal block is a 20-position NEMA screw clip-on terminal block. Its screw torque is 1.36 Nm, and the maximum screwdriver width is 8 mm (5/16 inch). It measures 5.51 x 4.41 x 5.71 inches and weighs 0.3 lbs.

      The 1756-TBNH Allen Bradley ControlLogix removable terminal block may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Allen Bradley 1756-TBNH ControlLogix removable terminal block Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      Do not connect more than two wires to any single terminal. Each ControlLogix I/O module can be installed in any ControlLogix chassis and requires a removable terminal block (RTB) for all field wiring. Each I/O module has a variety of applications, covering everything from high-speed digital processing to process control. In the ControlLogix architecture, input and output states are shared between multiple controllers in the same or different chassis via producer-consumer technology.
