Features:
- The electric TK-3E generates 0-to-5000 cpm target motion with a 50-to-254 µm peak-to-peak wobulator range.
- A metric spindle micrometer and AISI 4140 target support repeatable gap and vibration-response checks.
- Ordering code 02-02-00 identifies the metric scale, European power cord and no-approval configuration.

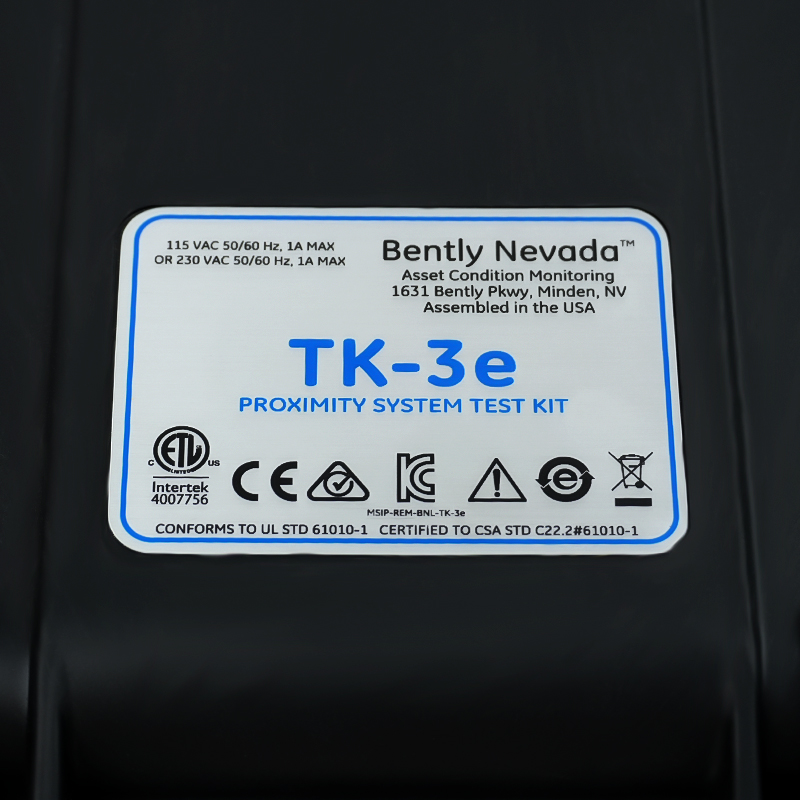

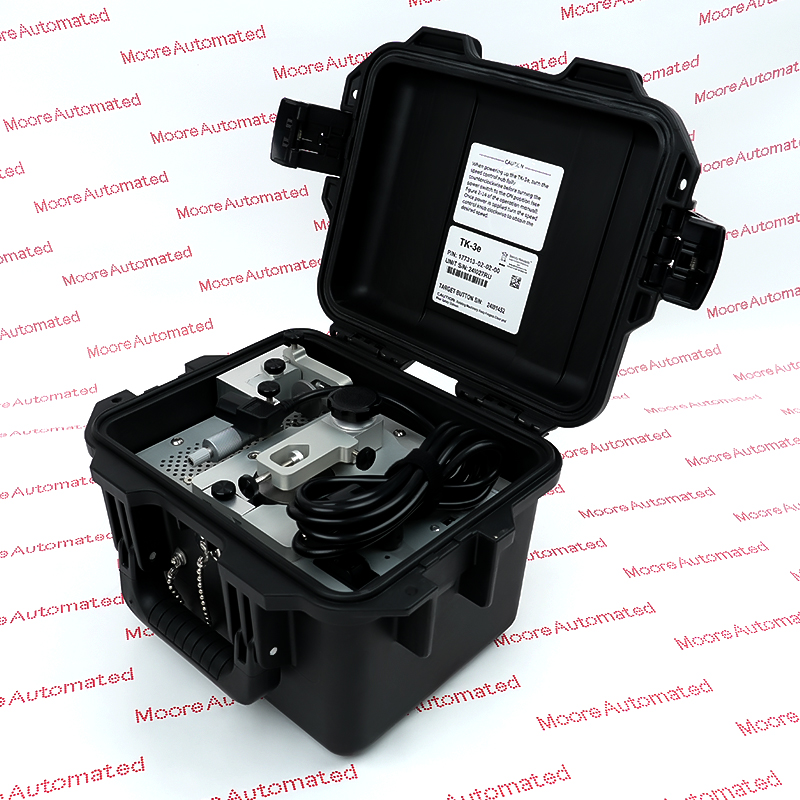

Bently Nevada TK-3E 177313-02-02-00 is the electric-driven form of the TK3 Proximity System Test Kit. Scale option 02 supplies metric measurement, power option 02 provides the European cord and approval option 00 specifies no agency approval. The kit simulates shaft vibration and position by rotating an AISI 4140 steel target while the probe is positioned with a spindle micrometer. The electric wobulator covers 50 to 254 µm peak-to-peak and the spindle operates from 0 to 5000 cpm. These controlled mechanical inputs let technicians verify proximity probes, Proximitor Sensors and monitor channels and observe whether the complete system responds correctly. Before use, the voltage selection, cord, target material, probe bracket, scale units and monitor setup must be confirmed.
Manufacturer reference: official TK3 Proximity System Test Kit documentation.
Moore Automated supports exact-item verification and spare-part enquiries for TK-3E 177313-02-02-00.
Bently Nevada TK-3E 177313-02-02-00 Electric proximity-system test kit manual (Datasheet), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Select the correct mains voltage, fit the required probe bracket and align the sensor to the AISI 4140 target before rotation.
Use the documented 50-to-254 µm peak-to-peak wobulator range and 0-to-5000 cpm spindle speed for the selected test.
Move the probe with the metric micrometer and compare mechanical travel, gap voltage and monitor indication through the complete channel.
