Features:
- Velomitor CT Velocity Transducer
- 190501 Velomitor CT Transducer
- Low-frequency version of our standard Velomitor Piezo-velocity Sensor

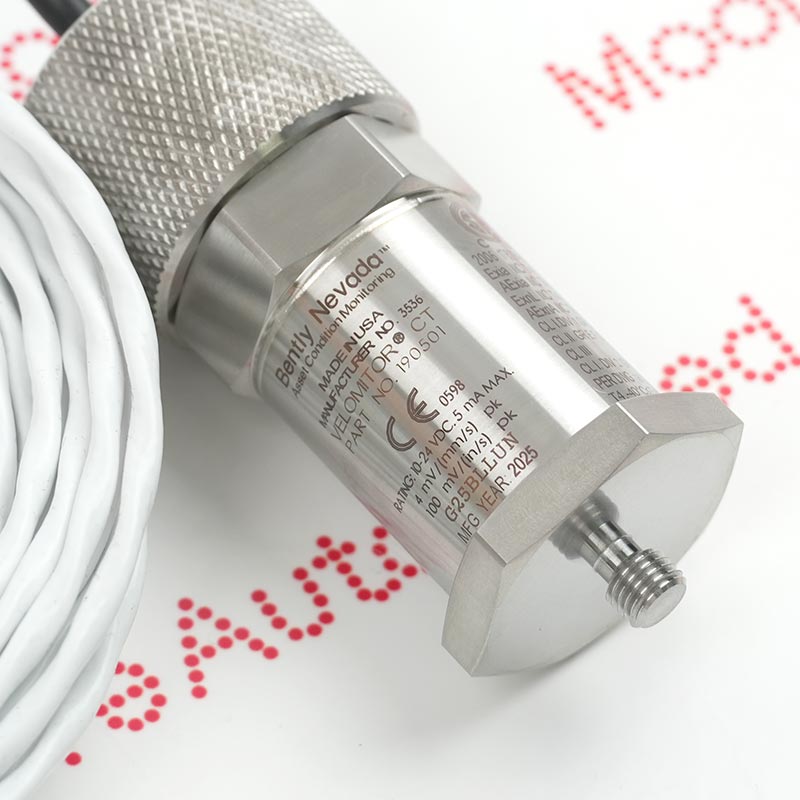

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
This sensor accurately captures structural vibration responses of equipment within a typical operating range of 100–300 rpm and at low frequencies ≥90 rpm, while also being compatible with excitation vibration frequency signals from fan motors and reduction gears. It provides a reliable data foundation for equipment condition monitoring, fault diagnosis, and preventative maintenance by outputting an electrical signal proportional to the vibration velocity in real time.
The 190501-12-99-04 Bently Nevada Velomitor CT Velocity Transducer may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 190501-12-99-04 Velomitor CT Velocity Transducer Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Its internal sensing structure generates an electrical charge response through the relative motion of a mass block and piezoelectric elements, which is then converted into a stable velocity-proportional signal via a built-in signal conditioning circuit, achieving high-sensitivity detection of low-frequency structural vibrations. This design optimizes frequency response characteristics under low-speed conditions, maintaining excellent measurement accuracy and signal stability in cooling tower fan systems and transmission systems with reduction gears.
Cooling Towers: Primarily designed to measure the shell vibration velocity of cooling tower fan assemblies.
Air-Cooled Heat Exchangers: Designed for heat exchanger fan assemblies operating at speeds of 90 rpm or higher (typically 100 to 300 rpm).
Low-Speed Mechanical Monitoring: Captures the vibration amplitude of the fan itself, as well as the vibration frequency generated by the associated fan motor and reducer.
Hazardous Area Operations: The "-04" option in the part number indicates multiple certifications (e.g., ATEX, IECEx, and CSA) making it suitable for potentially explosive or hazardous industrial environments.
