Features:
- 3300 XL 16mm High Temperature Proximitor Sensor
- 3300 XL High Temperature Proximity System
- Designed specifically to withstand the extreme temperatures inside gas turbines, steam turbines, and other types of rotating machinery
The extremely high temperatures generated by gas turbines and steam turbines are sufficient to damage or destroy conventional proximity probes. The Model 3300 High Temperature Proximity Measurement System (HTPS) is an ideal solution to this problem. HTPS can measure vibration, thrust, position, differential pressure expansion, and other parameters in the high-temperature regions of these machines.
The 3300 XL High-Temperature Near-Field Measurement System is used to protect and manage critical equipment in your plant, improving safety and efficiency. When measuring at the mid-span of a steam turbine, this system can also be used for modal shape analysis. Modal shape analysis is crucial for the research and development of new steam or gas turbine designs, or for troubleshooting existing designs. The modal identification probe provides lateral modal shape information, which is essential for balancing rotating machinery and identifying faults such as shaft cracks, bearing failures, rotor-stator friction, and other mechanical problems.
The 330380-90-00 Bently Nevada High Temperature Proximitor Sensor may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330380-90-00 High Temperature Proximitor Sensor Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

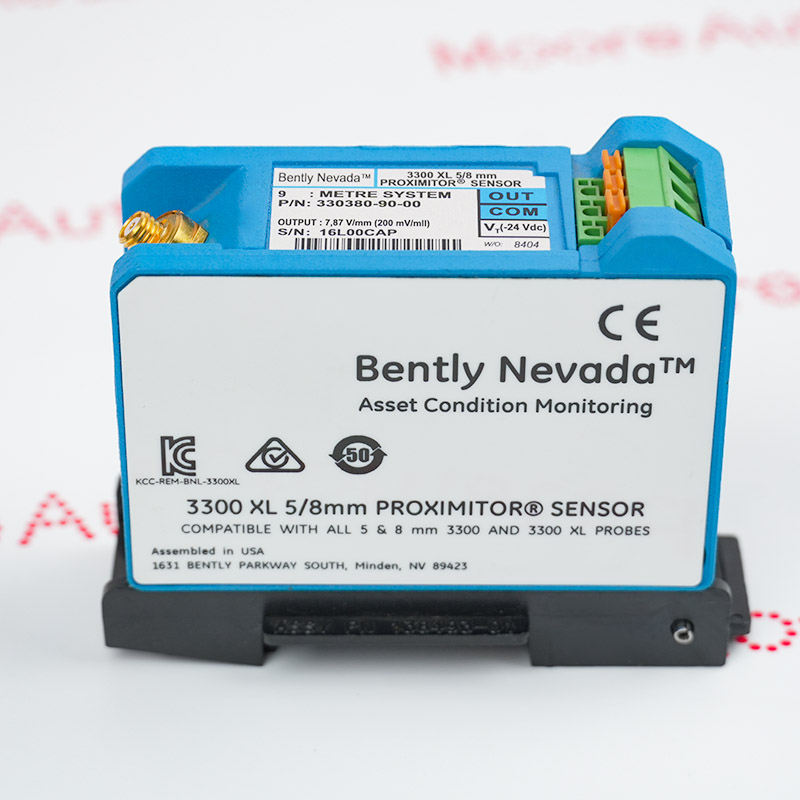

- Model: 330380-90-00
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3300 XL High Temperature Proximity System
3300 XL 16mm High Temperature Proximitor Sensor
330380-AA-BB (replaced 330300)
A: Total Length and Mounting
90: 9 meter, panel mount
91: 9 meter, DIN mount
92: 9 meter, no mounting hardware
B: Agency Approval
00: Not required
The Bently Nevada 3300 XL High Temperature Proximity Sensor System is an advanced sensor designed for proximity measurements at high-temperature bearing locations in machinery. This sensor provides reliable service even in harsh environments, making it an ideal solution for proximity probes used in high-temperature environments.
High-Temperature Rotating Machinery: Used for vibration and position monitoring of hot-end components in gas turbines, steam turbines, and boilers.
Modal Shape Analysis: Specifically designed for turbine mid-span locations to identify lateral modal shapes, crucial for mechanical balancing and identifying faults such as shaft cracks or rotor-stator friction.
Harsh Environmental Protection: Withstands continuous operation up to +350°C (+662°F) and 100% humidity, protecting critical equipment in harsh industrial environments.
Mechanical Diagnostics: Can be used as a Keyphasor® reference for speed measurement and phase analysis in hydrodynamic bearing machinery.
