- 3300 XL 11 mm Extension Cable
- 3300 XL 11 mm Proximity Transducer System
- Make sure that the extension cable length and the probe length, when added together
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.

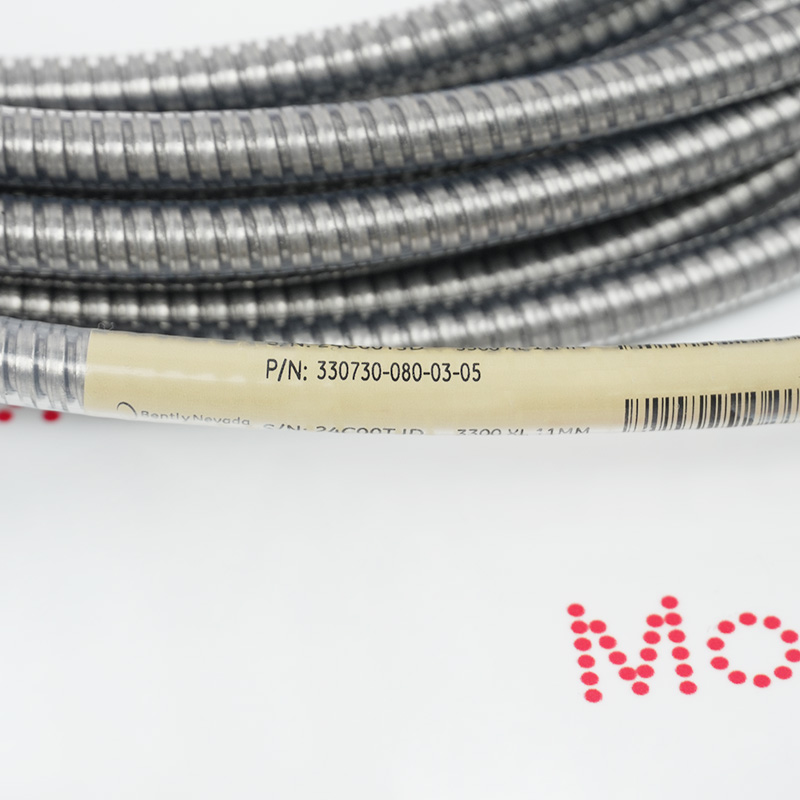

The 330730-080-03-05 Bently Nevada 3300 XL 11 mm Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330730-080-03-05 3300 XL 11 mm Extension Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm probe is available in a variety of probe housing configurations, including ½-20, 5/8-18, M14 x 1.5, and M16 x 1.5 threaded interfaces with and without protective covers. Reverse-mounted 3300 XL 11 mm probes come standard with either a 3/8-24 or M10 x 1 threaded interface. All components of the sensor system utilize gold-plated brass ClickLoc connectors. The ClickLoc connectors lock securely in place, preventing loosening.
Axial (Thrust) Position Measurement: Monitors the longitudinal movement of the central shaft in large rotating machinery.
Differential Expansion: Measures the relative expansion of a steam turbine rotor and its casing during startup and under different thermal loads.
Reciprocating Compressors: Used for monitoring "piston rod drop," detecting pressure band wear by tracking the vertical position of the piston rod.
Large Linear Measurement Range Requirements: Suitable for applications requiring a measurement range of up to 4.0 mm (160 mils), almost twice that of a standard 8 mm system.
