- 3300 XL 11 mm Extension Cable
- 3300 XL 11 mm Proximity Transducer System
- Make sure that the extension cable length and the probe length, when added together
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
The 330730-080-10-00 Bently Nevada 3300 XL 11 mm Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).

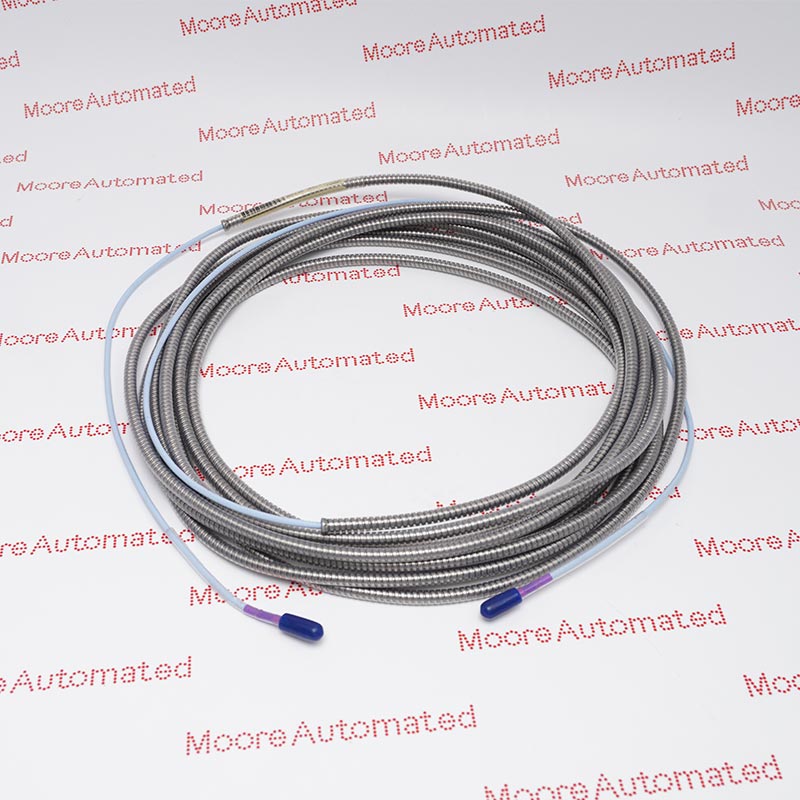

Bently Nevada 330730-080-10-00 3300 XL 11 mm Extension Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose.
The 11 mm system is designed for applications requiring a longer linear measurement range than the standard 8 mm system. Common applications include:
1. Axial (thrust) position measurement in large machinery.
2. Steel turbine differential pressure measurement.
3. Piston rod drop measurement in reciprocating compressors.
1. System Sensitivity: When used with the correct probe and sensor, the system provides an output of 3.94 V/mm (100 mV/mil).
2. Operating Temperature: Suitable for extreme environments from -51°C to +177°C (-60°F to +351°F).
3. Capacitance: Typical value is 69.9 pF/m (21.3 pF/ft).
4. Connector Type: Uses gold-plated brass ClickLoc connectors with a locking mechanism to prevent accidental loosening during operation.
