Features:

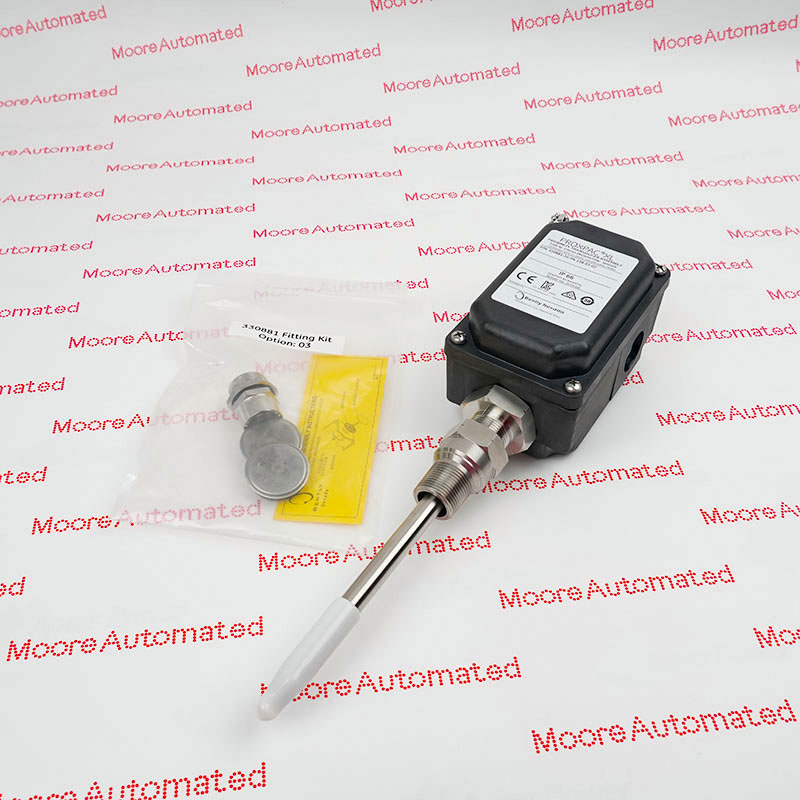

- PROXPAC XL Proximity Transducer Assembly
- Similar to our 31000/32000 Proximity Probe Housing Assemblies
- Made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic

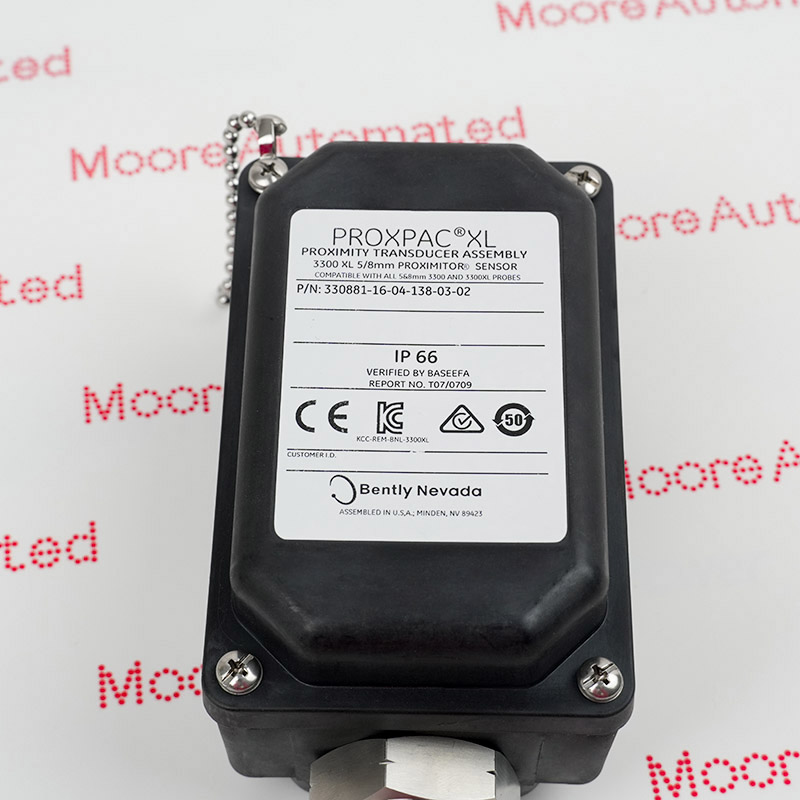

The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.
This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
The 330881-16-04-138-03-02 Bently Nevada PROXPAC XL Proximity Transducer Assembly may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330881-16-04-138-03-02 PROXPAC XL Proximity Transducer Assembly Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PROXPAC XL housing is made of polyphenylene sulfide (PPS), an advanced molding thermoplastic material. This material replaces the steel and aluminum used in previous housings in the Bently Nevada product line. Furthermore, glass fiber and conductive fibers are added to the PPS to enhance housing strength and more effectively dissipate static charge. The PROXPAC XL housing meets Type 4X and IP66 protection ratings, providing extra protection in harsh environments.
