- 3300 NSv Proximity Probes

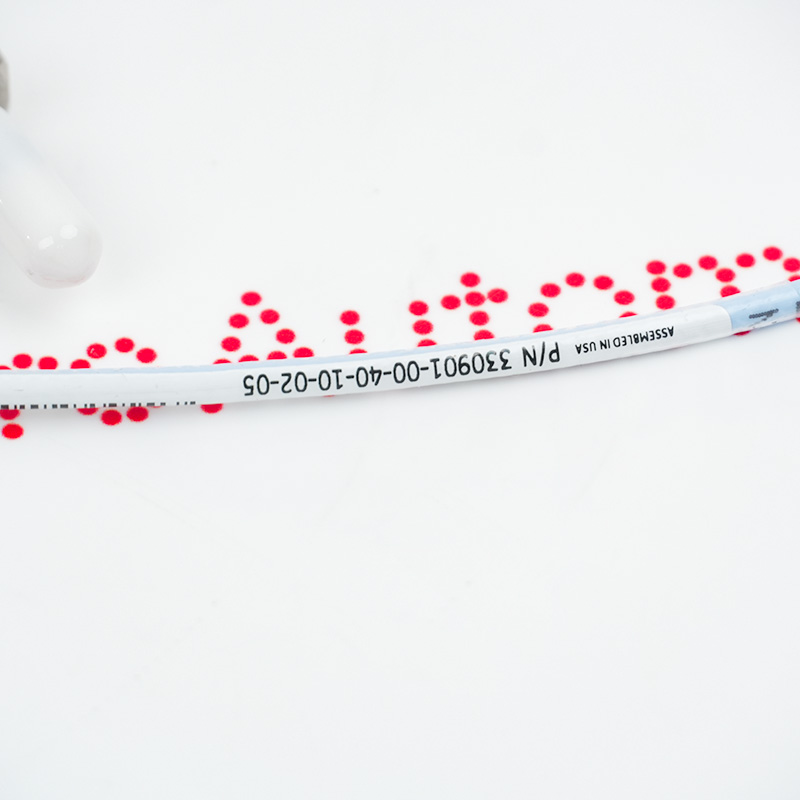

- 330901 3300 NSv Probe, 1/4-28 UNF thread, without armor
- 3300 XL NSv Proximity Transducer System
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
The 330901-00-40-10-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-40-10-02-05 3300 NSv Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv sensor system has an average scale factor of 7.87 V/mm (200 mV/mil), which is the most commonly used output value for eddy current sensors. Its enhanced side-view and small-target characteristics result in a shorter linear range than the Bently Nevada 3300 XL series 5 mm and 8 mm sensor systems. Its 1.5 mm (60 mil) linear range surpasses that of the 3000 series 190 sensor system.
This probe is primarily used for vibration and position monitoring in compact rotating machinery:
Centrifugal air compressors: The most common application, where standard probes cannot be used due to narrow side-view angles or counterbore limitations.
Refrigeration and process gas compressors: For dedicated compressor units with limited internal space, facilitating sensor installation.
Tachometer and Keyphasor® signal: Provides phase reference and zero-speed measurement per revolution for diagnostic analysis.
