Features:

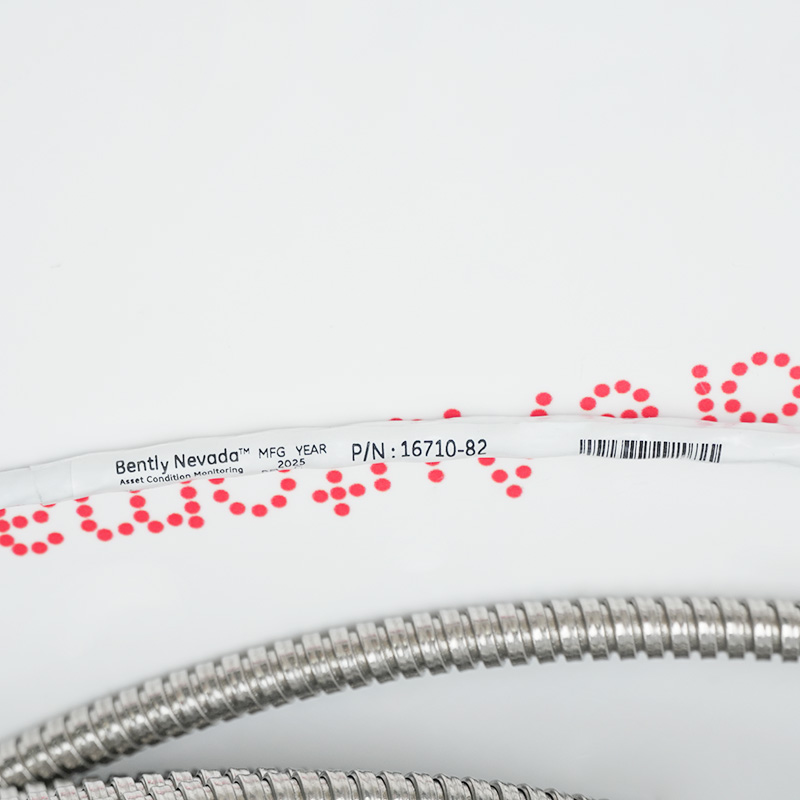

- 16710-82 Interconnect Cable
- Interconnect Cables for 330400 and 330425 Accelerometer
- 3-conductor shielded 22 AWG (0.5 mm2) armored cable with 3-socket plug at one end

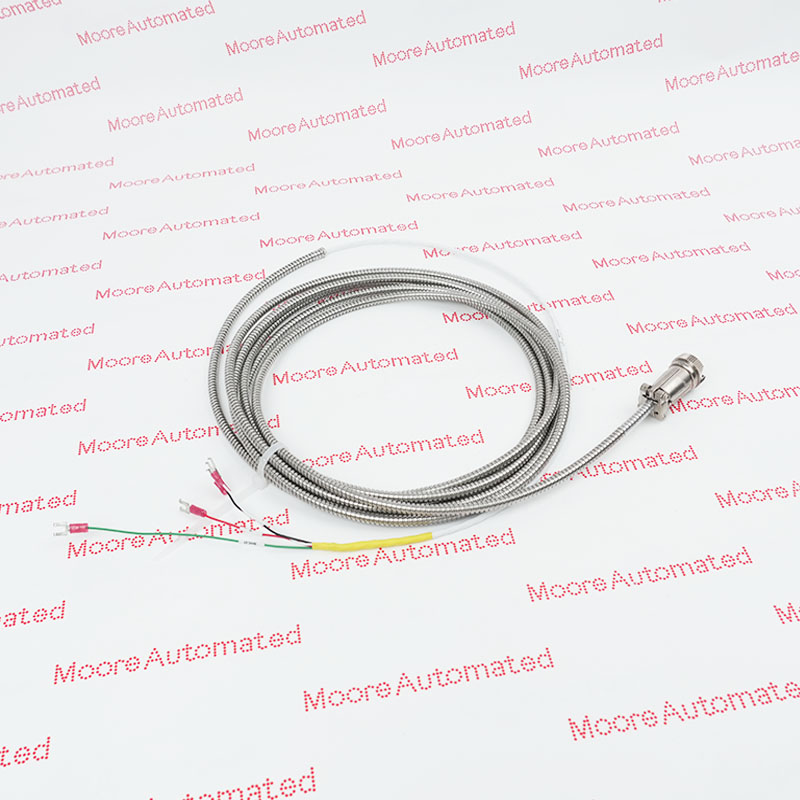

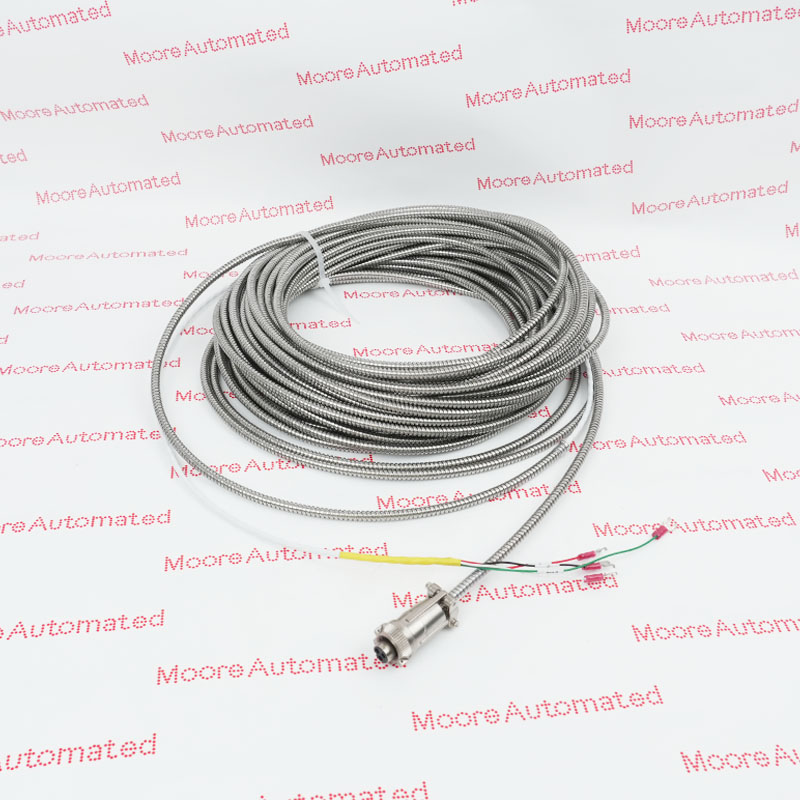

3-conductor shielded 22 AWG (0.5 mm2) armored cable with 3-socket plug at one end, terminal lugs at the other end. Minimum length of 3.0 ft (0.9 m), maximum length of 99 ft (30 m).
These accelerometers are suitable for critical mechanical applications requiring the measurement of housing acceleration, such as gear meshing monitoring. The Model 330400 accelerometer is designed to meet the American Petroleum Institute (API) 670 standard for accelerometers. It has a peak amplitude range of 50 g and a sensitivity of 100 mV/g. The Model 330425 accelerometer is similar, but has a larger peak amplitude range (75 g) and a sensitivity of 25 mV/g.
The 16710-82 Bently Nevada Interconnect Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 16710-82 Interconnect Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
If housing measurements are performed for comprehensive machine protection, the applicability of the measurements to each application should be considered. Most common machine failures (imbalance, misalignment, etc.) originate from the rotor and cause increased (or at least altered) rotor vibration. For any individual housing measurement to effectively protect the entire machine, it must be ensured that rotor vibration is accurately transmitted to the bearing housing or housing, and more specifically, to the sensor mounting location.
The primary application of the 16710 series is transmitting critical data from vibration sensors to centralized monitoring racks, such as the Bently Nevada 3500 series.
Sensor Connectivity: Designed for connecting 330400 and 330425 accelerometers or 3300 XL series proximity probes.
Industrial Environments: Its armored construction and oil-resistant PVC sheath allow it to operate in harsh environments such as petrochemical plants, offshore platforms, and steel mills, functioning even under mechanical friction or chemical corrosion.
Signal Integrity: Its optimized 3-core shielded 22 AWG design suppresses electromagnetic noise from motors and frequency converters, ensuring accurate signal transmission over long distances.
