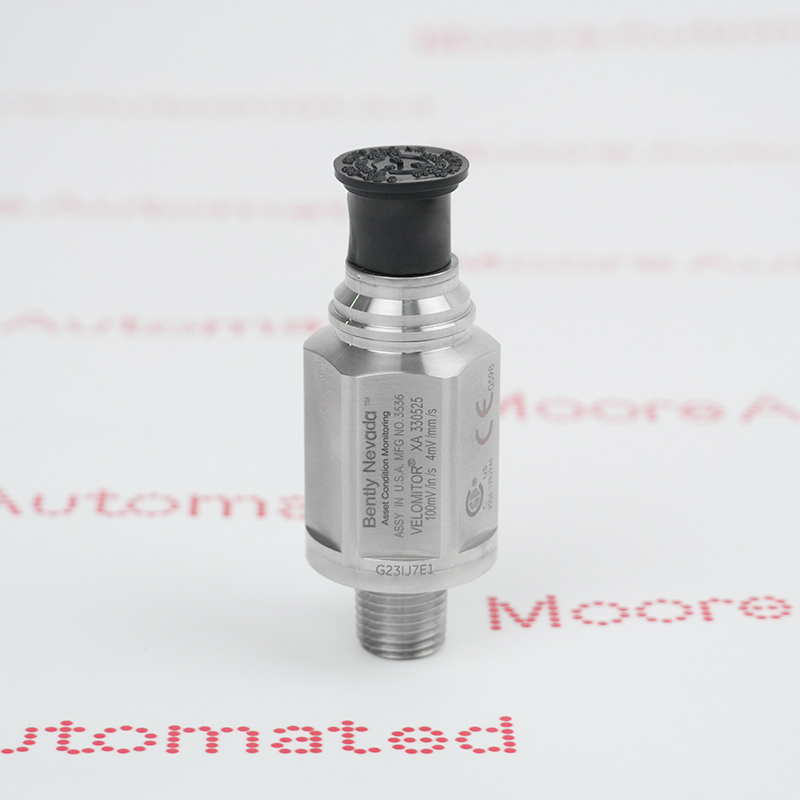

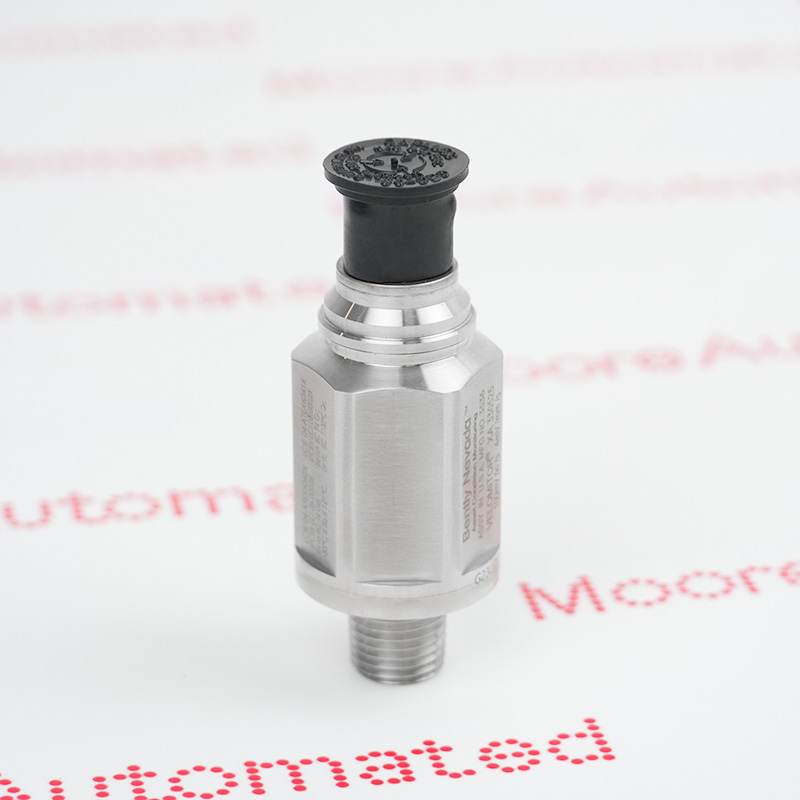

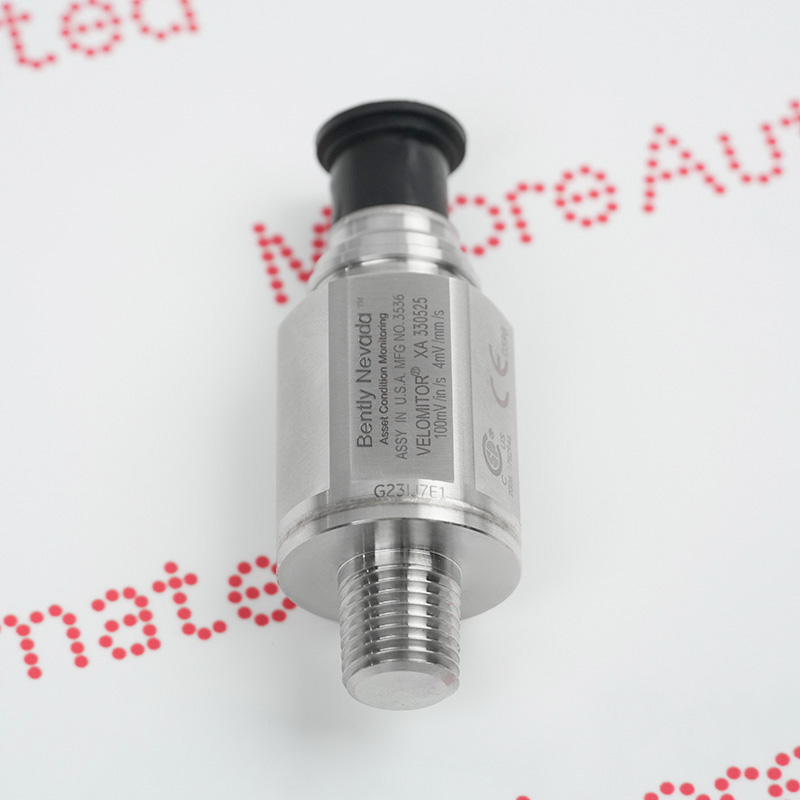

      Velomitor XA piezo-velocity sensor

      330525-00

      Product Information:

      Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor designed to measure machine vibration velocity through a self-contained piezoelectric sensing element. The documented sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5%, with a 1270 mm/s (50 in/s) peak velocity range, transverse sensitivity below 5% and a mounted resonant frequency above 12 kHz.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor for direct measurement of machine vibration velocity. The official datasheet specifies a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, a 1270 mm/s (50 in/s) peak velocity range, transverse sensitivity below 5% and a mounted resonant frequency above 12 kHz. The exact ordering code, mounting arrangement, cable connection and monitoring-channel scaling must be verified before replacement.

          Official source

          Bently Nevada Velomitor XA Piezo-Velocity Sensor datasheet for ordering code 330525-00.
        • APPLICATIONS

          Where it may be used

          Use this sensor at documented rotating-machine measurement points that require the Velomitor XA signal and sensitivity. Confirm the mounting surface, sensor orientation, cable path, receiving monitor input, configured scaling and expected vibration range before commissioning.

          Velocity Signal Monitoring

          Provides the documented 100 mV/in/s vibration-velocity sensitivity.

          High-Range Measurement

          Supports machine points within the specified 50 in/s peak range.

          Low Cross-Axis Response

          Limits transverse sensitivity to less than five percent of axial sensitivity.

          Monitoring-Channel Match

          Connects only where the monitor input and scaling suit the Velomitor XA.
      Technical specifications for

      330525-00

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Bently Nevada
      • Product Category:
        Sensor
      • Agency Approval:
        None Required
      • Sensitivity:
        3.94 mV/mm/s (100 mV/in/s) ±5%
      • Velocity Range:
        1270 mm/s (50 in/s) peak
      • Transverse Sensitivity:
        Less than 5% of sensitivity
      • Mounted Resonant Frequency:
        Greater than 12 kHz
      • Product Family:
        Velomitor XA
      • Stock Availability:
        6
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      Bently Nevada 330525-00 330525 00 330525 Velomitor XA

      Information

      Overview Manuals Sensor Principle Signal Compatibility Installation Guidance

      Features:

      • Velomitor XA self-contained piezo-velocity sensor
      • 3.94 mV/mm/s (100 mV/in/s) nominal sensitivity within ±5%
      • 1270 mm/s (50 in/s) peak velocity measurement range
      • Less than 5% transverse sensitivity and greater than 12 kHz mounted resonance

      330525-00 must be matched by its complete ordering code, mounting configuration, cable connection and monitoring-channel scaling before installation.

      Official source: Bently Nevada Velomitor XA Piezo-Velocity Sensor datasheet.
      Bently Nevada 330525-00 Velomitor XA official datasheet and Moore Automated technical resources.Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included unless listed in the stock item description. All prices are shown in USD.

      Piezo-velocity measurement

      The self-contained sensing element produces a velocity-proportional signal at the documented 100 mV/in/s sensitivity. Channel configuration must match this scaling and the expected vibration range.

      Monitor input verification

      Confirm the receiving channel supports the Velomitor XA signal, connector and cable arrangement. Alarm setpoints and processing must be reviewed whenever the sensor or monitor configuration changes.

      Mounting and cable routing

      Install the sensor on a prepared rigid surface with the documented mounting hardware. Protect the connector, avoid cable strain and verify orientation before returning the machine to service.

      Technical notes

      Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor with a nominal sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5% and a 1270 mm/s (50 in/s) peak velocity range. The official datasheet specifies transverse sensitivity below 5% and a mounted resonant frequency above 12 kHz. Correct replacement depends on the complete ordering code, mounting arrangement, cable interface, signal scaling and monitoring-channel requirements.

      330525 Sensor Identity Check

      Verify the complete 330525-00 ordering code, Velomitor XA marking, connector and mounting configuration, 100 mV/in/s sensitivity and approval option on the label. Request a nameplate photograph if any identifier or suffix is unclear.

      Velomitor XA Quotation Details

      Provide quantity, full 330525-00 code, sensor nameplate photograph, associated monitor or signal interface, mounting hardware, cable details, receiving country and required delivery date so Moore Automated can verify compatibility and quote the exact supply.

      Customs & shipping dimensions / weight

      • Packed shipping dimensions
        Confirmed after final packing
        Confirmed from the supplied-item packing record.
      • Packed shipping weight
        Confirmed after final packing
        Confirmed from actual-item weighing.
      • HS / customs code
        Not officially confirmed
        Verify the destination-country classification before shipment.
      • Country of origin
        Not officially confirmed
        Verify from the supplied-item nameplate or COO.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 330525-00

      • How can the exact 330525-00 sensor be identified?

        Confirm the full 330525-00 ordering code and Velomitor XA marking on the nameplate. Also verify the connector, mounting arrangement and approval option; provide a clear label photograph if any identifier is uncertain.

      • What signal sensitivity should the monitoring channel expect?

        The official value is 3.94 mV/mm/s, equivalent to 100 mV/in/s, with a ±5% tolerance. Configure the monitoring channel and alarm processing for that documented sensitivity.

      • What velocity range is documented for this Velomitor XA?

        The datasheet lists a 1270 mm/s (50 in/s) peak velocity range. The installed monitor, cabling and machine vibration levels must remain compatible with this range.

      • Which machinery can use a 330525-00 sensor?

        It is used for vibration-velocity monitoring on applicable rotating machinery such as motors, pumps, fans and compressors where the mounting surface, signal interface and monitoring channel are compatible.

      • What mounting checks matter before commissioning?

        Use a rigid prepared surface and the documented mounting hardware. Confirm sensor orientation, cable routing, connector condition, channel sensitivity and that the installed mounting does not compromise the specified frequency response.

      • Is Bently Nevada 330525-00 available from stock?

        Availability changes with allocation. Provide the complete ordering code and quantity so Moore Automated can confirm the exact unit and current stock in the quotation.

      • What warranty is supplied with this sensor?

        Moore Automated supplies the quoted 330525-00 with a one-year warranty, subject to the written quotation and standard warranty terms.

      • How is 330525-00 quoted and dispatched?

        Provide quantity, full model, nameplate photo, associated monitor or transducer interface, receiving country and required delivery date. The confirmed unit is handled within three days with fast shipping available.
