Features:
- This supplied order string identifies a full-size 19-inch EIA rack with 14 module slots and rack mounting, but omits the final EE ordering option.
- The rack backplane holds compatible 3500 monitor modules and rack power supplies and supports communication among installed modules.
- The 3500 system uses other configured components, including power-supply, TDI, monitor and I/O modules; this rack alone is not a complete monitoring system.

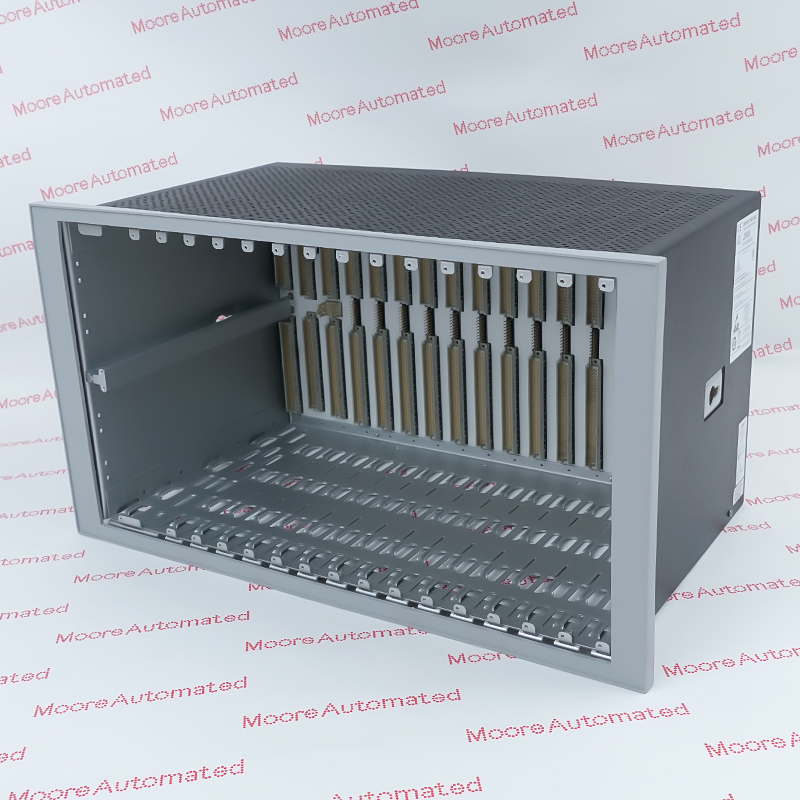

The Bently Nevada 3500/05 is the instrument rack at the center of a modular 3500 machinery-protection installation. It provides the mechanical and backplane structure for compatible monitoring modules, power supplies and interfaces.
Before replacement, confirm the complete suffix—especially the final approval option—from the nameplate, then match the mounting arrangement, installed module layout, power-supply configuration and system revision. This 3500/05 order code describes a Bently Nevada rack; it does not establish compatibility with another protection-platform family.
The Bently Nevada 3500 platform remains listed by the OEM with lifecycle support and maintenance services; availability of this exact rack order code should be confirmed with the OEM. Moore Automated can source 3500 replacement modules and spare parts after verifying the rack configuration and installed system.
Bently Nevada 3500/05 System Rack Datasheet (141525), Link
Important Notice: Confirm the complete rack order code, including the final compliance option, from the nameplate before replacement.
Order-code interpretation
- AA = 01: 19-inch full-size rack with 14 monitor-module slots
- BB = 02: rack-mount option for a 19-inch EIA rack
- CC = 00: no agency-approval option
- DD = 00: reserved option
- EE: not supplied; confirm the European-compliance option from the nameplate
Module and cabinet fit
Verify the installed rack power supplies, rack interface module, monitor positions, rear I/O connections and any internal barriers. Internal barriers change the rack depth and require the specified earthing arrangement.
Confirm cabinet depth, ventilation, cable clearance and 19-inch EIA mounting-hole alignment before moving modules into a replacement rack.
Rack replacement checks
- Record every module position, power-supply position and rear I/O connection.
- Confirm the complete 3500/05 order code from the nameplate.
- Isolate power and field wiring under the approved procedure.
- Install modules in their documented positions and restore power in sequence.
- Verify rack communication, alarms and every affected monitoring channel.
