Features:
- 3500/05 System Rack To Mount
- Prevents accidental contact with live backplanes, reducing the risk of electric shock
- Typically made of anodized aluminum (black or industrial gray), it can withstand harsh industrial environments

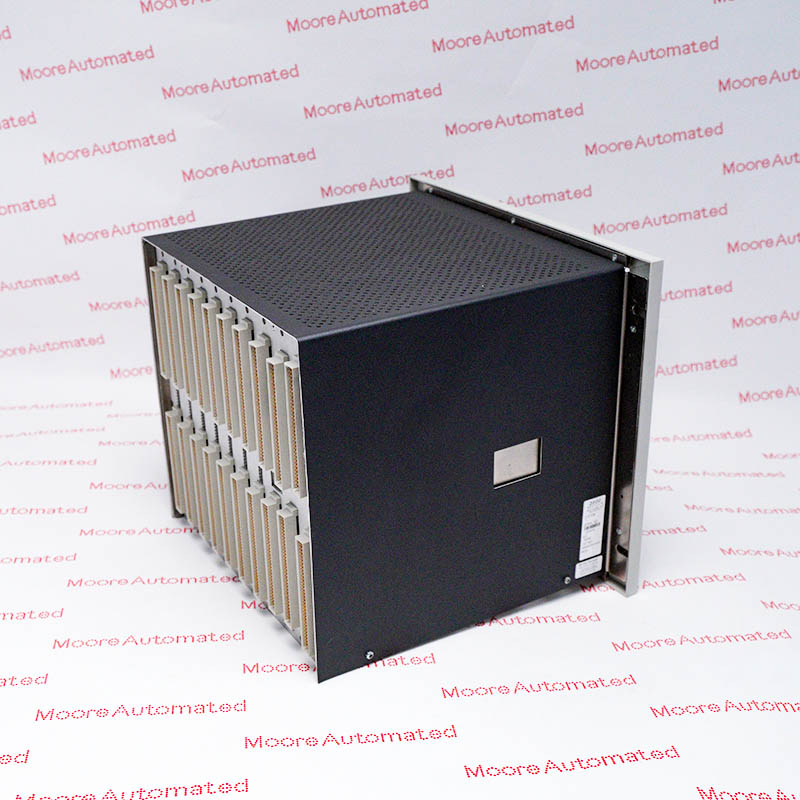

The 3500 system rack design can accommodate all 3500 monitoring modules and rack power supplies. It allows the individual 3500 modules to communicate with each other, and the power supply can distribute power to each module as needed.
The power supply and rack interface modules must be installed in the leftmost rack position. The remaining 14 rack positions (7 for mini racks) can be used to install any combination of modules.

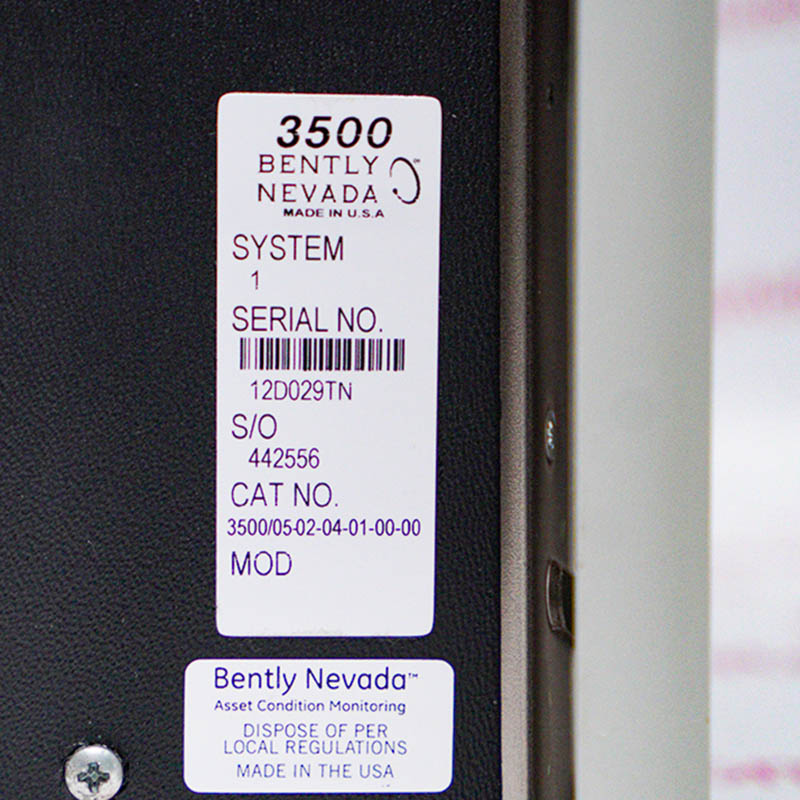

The 3500/05-02-04-01-00-00 Bently Nevada 3500 System Rack may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/05-02-04-01-00-00 3500 System rack module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 3500/05 rack serves as the "hardware motherboard" and "communication hub" of the entire monitoring system. Through an integrated high-density backplane bus, it provides stable power distribution and high-speed data channels for all inserted modules (such as power supplies, rack interface modules, and various monitors).
The 3500 series racks offer three mounting options:
- Panel mount: This rack format mounts to rectangular cutouts in panels, and secures to the panel using clamps supplied with the rack. Wiring connections and I/O modules are accessible from the rear of the rack.
- Rack mount: This rack format mounts the 3500 Rack on 19-inch EIA rails. Wiring connections and I/O modules are accessible from the rear of the rack.
- Bulkhead mount: This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack. Wiring connections and I/O modules are accessible from the front of the rack. The 3500/05 Mini-Rack is not available in this format.
The power supplies and rack interface module must occupy the far-left rack positions. The remaining 14 rack positions (seven rack positions for the mini-rack) are available for any combination of modules.
