Features:
- Module of GE Fanuc series 90-30 PLC systems
- Discrete Input Module
- This module features Thirty-Two (32) 24VDC input channels

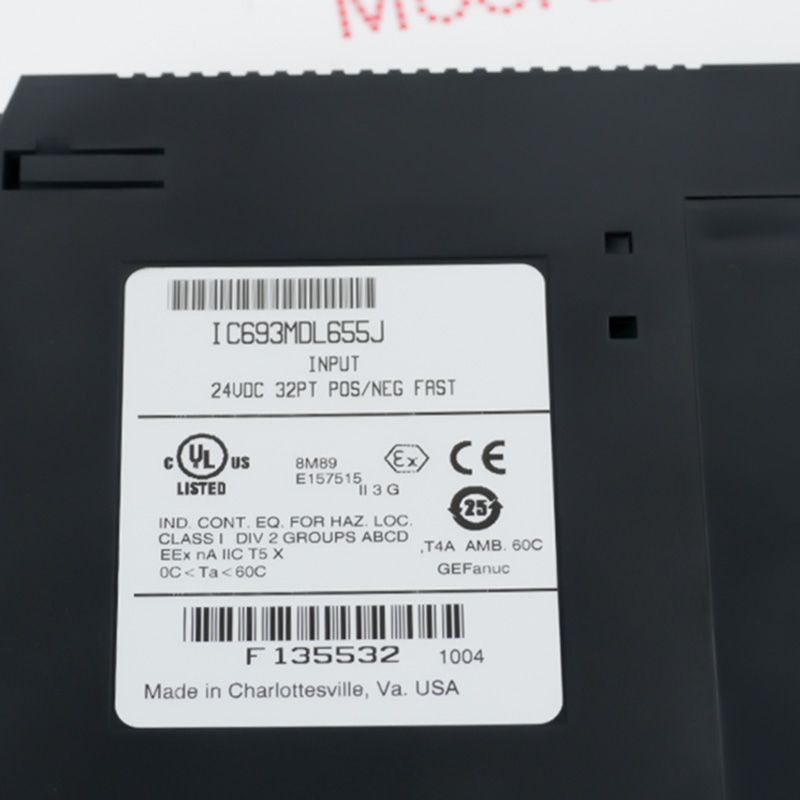

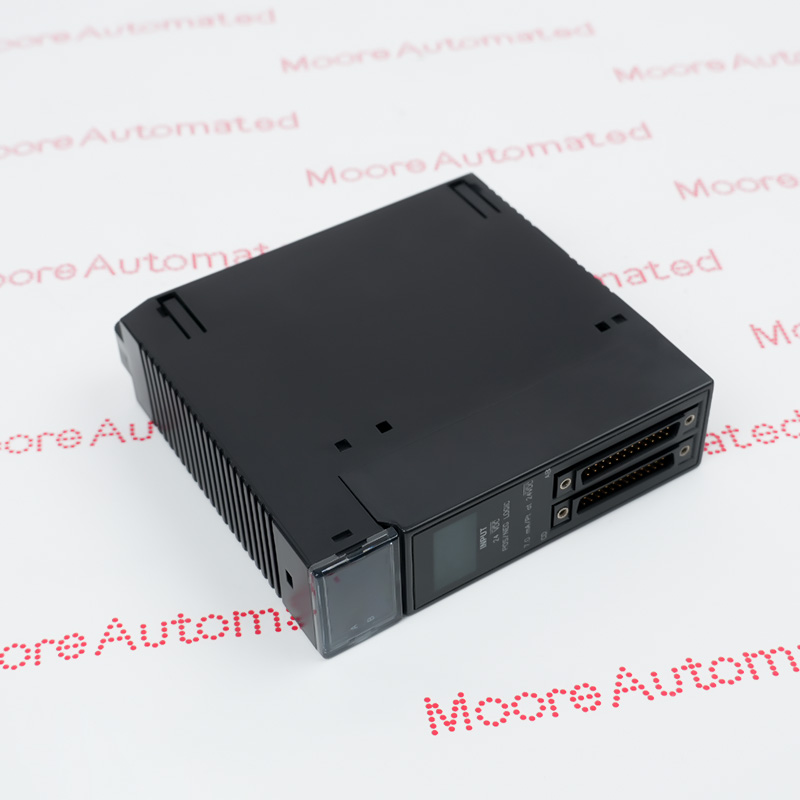

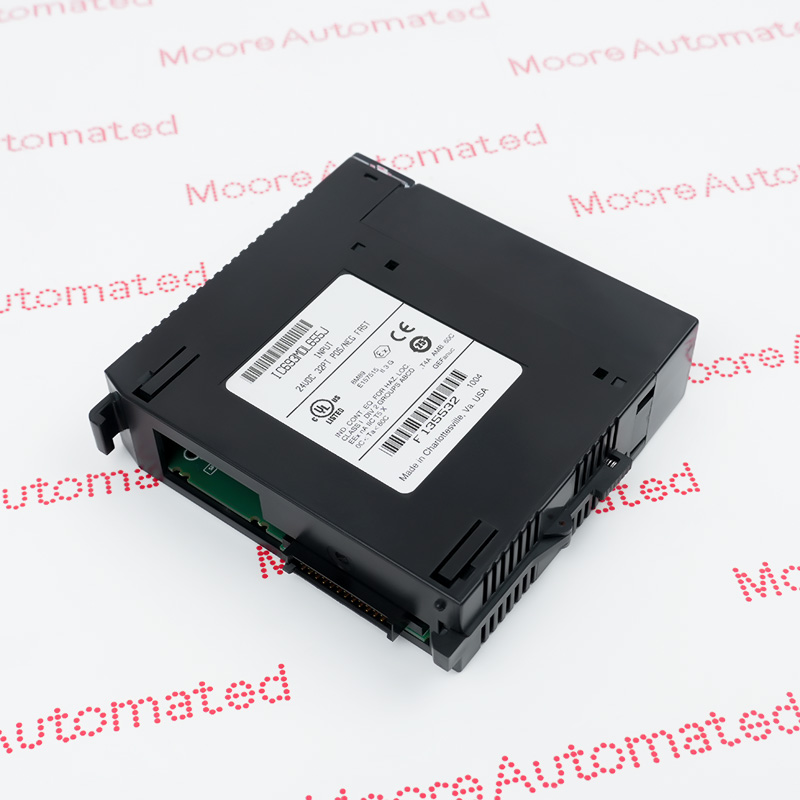

The IC693MDL655 is a 90-30 series discrete input module, originally manufactured by GE Fanuc and now owned by Emerson Automation. This module features 32 24VDC input channels, supporting positive/negative logic wiring configurations. Its input voltage range is 0-30VDC, and the input current is 7mA. The backplane current is 195mA at 5VDC and 224mA at 24VDC.
24V DC Positive/Negative Logic Input Module for 90-30 Series Programmable Logic Controllers Provides 32 discrete input points. These input points are divided into four groups of eight, isolated from each other (A1-A8, B1-B8, C1-C8, and D1-D8); each group has its own common terminal. These inputs are either positive or negative logic inputs, and the operating voltage can reach up to 30V.
The IC693MDL655 GENERAL ELECTRIC Discrete Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GENERAL ELECTRIC IC693MDL655 Discrete Input Module datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This module is configured as a 32-point input type and uses 32 bits of discrete %I input data. Current into an input point results in a logic 1 in the input status table. Power to operate field devices can be supplied by the user, or from the isolated +24 VDC supply available at the module’s I/O connectors. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
Revision Part #
Also known as
IC693MDL655 B
IC693MDL655-B, Series B, Rev B
IC693MDL655 C
IC693MDL655-C, Series C, Rev C
IC693MDL655 D
IC693MDL655-D, Series D, Rev D
IC693MDL655 E
IC693MDL655-E, Series E, Rev E
IC693MDL655 F
IC693MDL655-F, Series F, Rev F
