Features:
- Analog input module
- High-performance safety platform
- Designed for large-scale, safety-critical production processes
This system provides comprehensive process monitoring, emergency shutdown, and critical control functions to ensure safe operation in complex industrial environments such as oil and gas, power generation, and chemicals. It integrates modular I/O, redundant processors, and configurable safety logic, enabling operators to implement customized safety and automation strategies while maintaining high availability.
In addition to safety controls, the system supports real-time diagnostics, system monitoring, and predictive maintenance. Its user-friendly interface and scalable architecture allow for seamless integration with existing control systems, supporting efficient process monitoring, automated reporting, and improved operational efficiency.

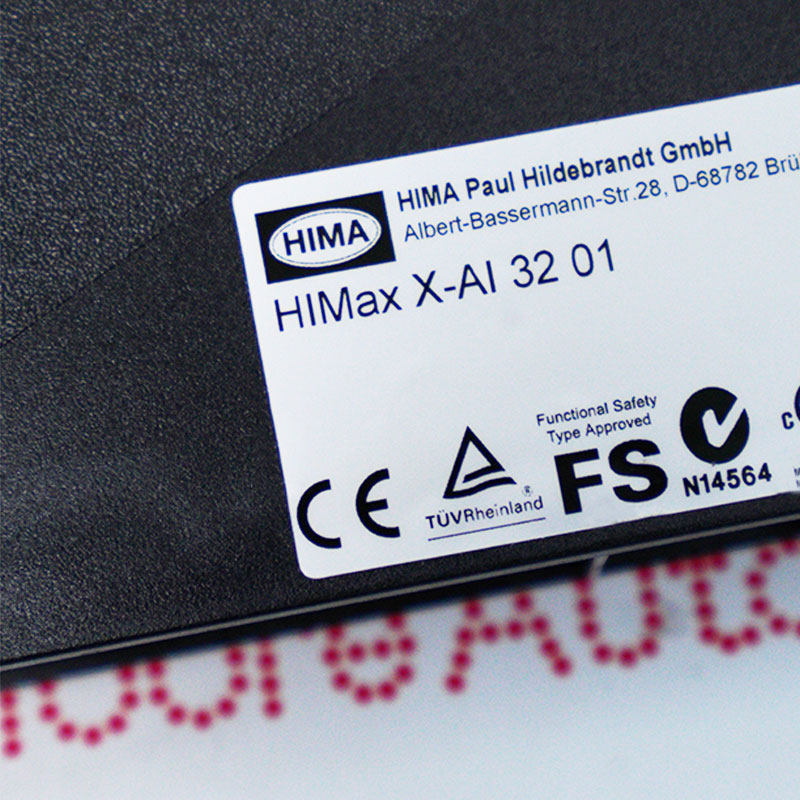

The HIMAX X-AI3201 HIMA Analog input module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA HIMAX X-AI3201 Analog input module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The system works by continuously acquiring signals from field devices and sensors, processing these inputs through a redundant safety controller, and executing pre-configured safety logic. Based on an evaluation of these signals, the system generates deterministic output actions to control actuators, trigger alarms, or initiate emergency shutdown procedures, thereby ensuring the reliable and safe operation of industrial processes.
High-Density Data Acquisition: A single module can evaluate up to 32 analog current signals (standard 0/4–20 mA), making it ideal for large industrial plants with high I/O counts.
Safety Loop Integrity: Capable of measuring current in connected devices with safety-related accuracy and providing a minimum voltage guarantee for transmitter power supply.
Continuous Operation: Supports hot-swappable redundancy, allowing you to replace a faulty module during system operation without interrupting the process.
Fault Management: In the event of an internal or signal fault, the module automatically enters a safe state, sending a default value of "0" to the user program to trigger safety logic.
