Features:
- Digital Input Module
- High-performance safety platform
- Designed for large-scale, safety-critical production processes
This system provides comprehensive process monitoring, emergency shutdown, and critical control functions to ensure safe operation in complex industrial environments such as oil and gas, power generation, and chemicals. It integrates modular I/O, redundant processors, and configurable safety logic, enabling operators to implement customized safety and automation strategies while maintaining high availability.
In addition to safety controls, the system supports real-time diagnostics, system monitoring, and predictive maintenance. Its user-friendly interface and scalable architecture allow for seamless integration with existing control systems, supporting efficient process monitoring, automated reporting, and improved operational efficiency.

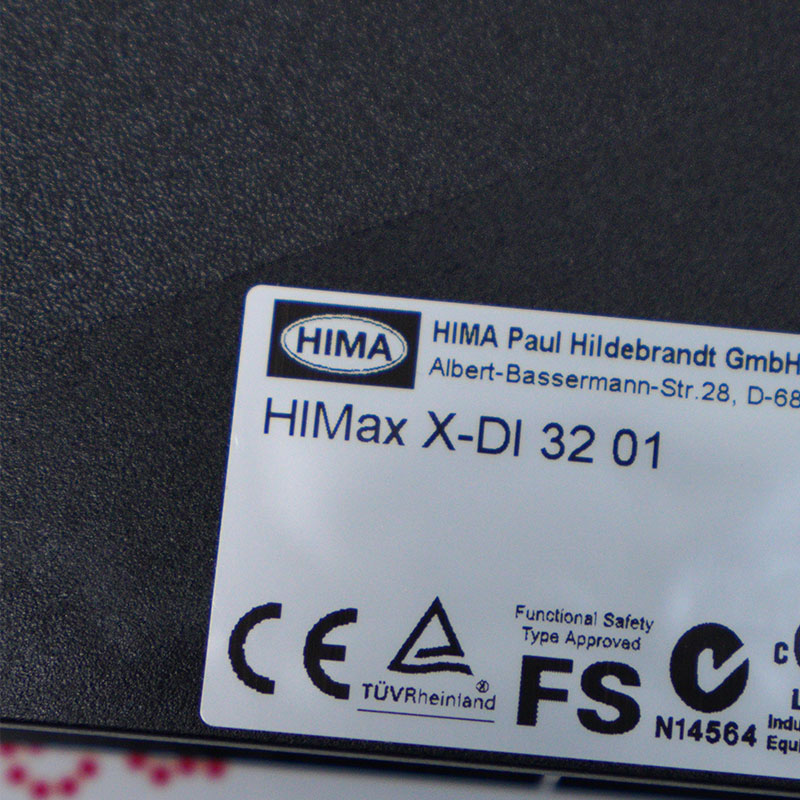

The HIMAX X-DI3201 HIMA Digital Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA HIMAX X-DI3201 Digital Input Module info(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The system works by continuously acquiring signals from field devices and sensors, processing these inputs through a redundant safety controller, and executing pre-configured safety logic. Based on an evaluation of these signals, the system generates deterministic output actions to control actuators, trigger alarms, or initiate emergency shutdown procedures, thereby ensuring the reliable and safe operation of industrial processes.
Safety Loop Monitoring: Monitors the status of safety-critical field devices such as emergency stop buttons, pressure switches, level switches, and valve position indicators.
Uninterrupted Process Control: Supports hot-swappable and redundant (XMR) architecture, suitable for systems requiring module replacement or testing without interrupting industrial processes.
Event Sequence (SOE) Logging: Records signal changes with precise 1-millisecond resolution, enabling operators to perform high-fidelity root cause analysis after system tripping.
Line Monitoring: Detects short circuits and open circuits in field wiring for specific wiring configurations, ensuring proper functioning of the entire safety loop from buttons to controllers.
