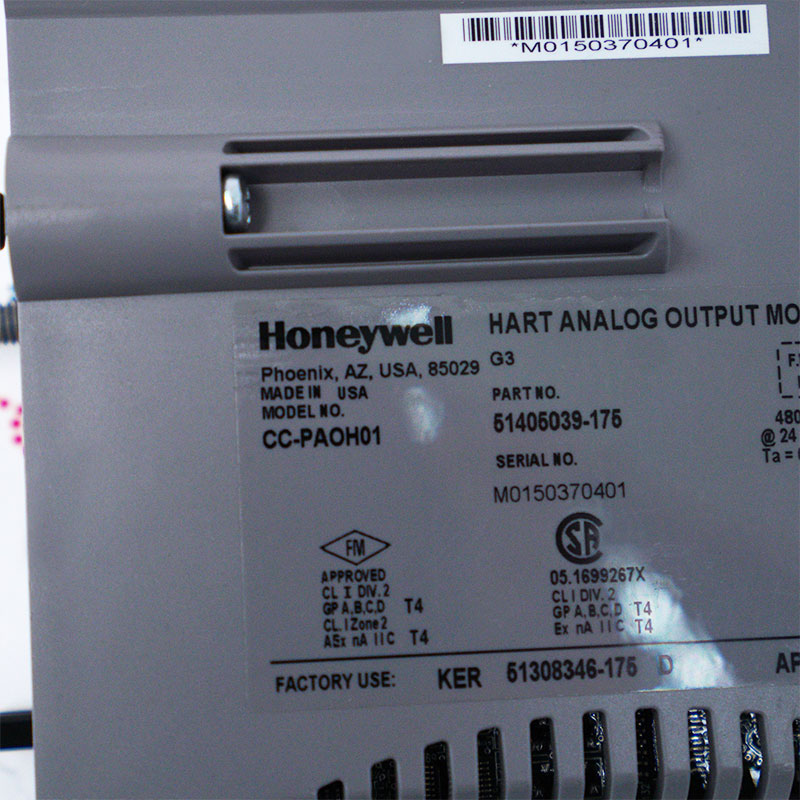

      Honeywell CC-PAOH01 51405039-175
      Honeywell CC-PAOH01 51405039-175
      Honeywell CC-PAOH01 51405039-175
      Honeywell CC-PAOH01 51405039-175
      Honeywell CC-PAOH01 51405039-175
      Honeywell CC-PAOH01 51405039-175
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      CC-PAOH01 51405039-175

      Analog Output Module
      In Stock

      Product Information:

      The Analog Output (AO) Module

      delivers high-level constant current

      to actuators and recording/indicating

      devices


      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for CC-PAOH01 51405039-175

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        51405039-175
      • Estimated shipping dimensions:
        5.5 x 16.2 x 14.5 cm
      • Weight:
        0.42 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Output Type:
        4-20 mA
      • Output Channels:
        16 channels
      • Output Ripple:
        < 100 mV peak-to-peak at power line frequency, across 250  load
      • Output Temperature Drift:
        0.005% of Full Scale/°C
      • Maximum Open Circuit Voltage:
        22 V
      • Stock:
        30
      Ask for Quote

      Information

      Overview Manuals Principle Core Applications

      Features:

      • HART-capable, multivariable instruments
      • Multiple modems for fast collection of control variables
      • Safe-state (FAILOPT) behaviors configurable on a per channel basis
      The Analog Output (AO) module provides a high-level constant current to actuators and recording/indicating devices.This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.

      The C-Series AO modules support setting fault parameters for each channel. Users can configure each channel to either maintain the previous value or decrease to a safe value. If the electronic components of the IOM device fail, the output will always decrease to zero, indicating a safe state.

      The CC-PAOH01 51405039-175 Honeywell Analog Output Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Honeywell CC-PAOH01 51405039-175 Analog Output Module Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The CC-PAOH01 51405039-175 operates by receiving digital control commands from the DCS via an internal bus, processing them logically, and then inputting them to a high-precision digital-to-analog converter (DAC) circuit. This DAC converts the commands into continuous standard industrial analog signals (e.g., 4–20 mA or equivalent voltage output). Subsequently, signal conditioning circuitry performs isolation, filtering, and linearity correction to improve noise immunity and output stability.
      This module is the standard choice for process industries using "smart" field devices:
      Intelligent Actuator Control: Monitors the operating status, valve position, and internal diagnostic information of control valves while regulating them via HART data.
      Remote Device Configuration: Engineers can calibrate or configure field instruments in the control room using Experion PKS software, reducing the need for field access.
      Process Variable Transmission: Sends 4–20 mA signals to various recording and indicating devices in critical batch and continuous processes.
      High-Reliability Environments: Commonly found in power plants, refineries, and chemical plants where high-density I/O and reliable electrical isolation are required.

      Manuals

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What primary analog signal generation role does the CC-PAOH01 51405039-175 fulfill within distributed control environments? The CC-PAOH01 51405039-175 functions as a high-integrity analog output module designed to convert digital control instructions from a DCS into standardized high-level analog signals for industrial actuators. Q2: How does the CC-PAOH01 51405039-175 achieve high-fidelity analog output synthesis in process automation systems? The CC-PAOH01 51405039-175 employs precision digital-to-analog conversion circuitry combined with signal conditioning stages to generate stable, linear, and accurate analog outputs. Q3: Why is the CC-PAOH01 51405039-175 critical for closed-loop regulatory control in industrial process applications? The CC-PAOH01 51405039-175 provides deterministic output signals that regulate final control elements such as valves, dampers, and actuators, ensuring stable feedback-driven process control. Q4: What types of industrial applications are best suited for deployment of CC-PAOH01 51405039-175? The CC-PAOH01 51405039-175 is commonly utilized in oil & gas processing, chemical manufacturing, power generation, and refining industries, where precise analog actuation is essential. Q5: How does the CC-PAOH01 51405039-175 ensure electromagnetic robustness and signal integrity in harsh industrial environments? The CC-PAOH01 51405039-175 integrates electrical isolation, filtering mechanisms, and robust analog circuitry design to minimize noise susceptibility and maintain output stability. Q6: How is the CC-PAOH01 51405039-175 integrated into Honeywell distributed control system architectures? The CC-PAOH01 51405039-175 interfaces via system backplanes within Honeywell Experion or compatible DCS platforms, enabling real-time process control execution. Q7: What diagnostic and fault detection capabilities are embedded in the CC-PAOH01 51405039-175? The CC-PAOH01 51405039-175 supports channel-level diagnostics including open-loop detection, output deviation monitoring, and module health status reporting. Q8: How does the CC-PAOH01 51405039-175 support fail-safe operation in mission-critical process systems? The CC-PAOH01 51405039-175 is engineered to transition to predefined safe output states in the event of system anomalies, ensuring process containment and operational safety. Q9: What installation and configuration parameters are essential for optimal CC-PAOH01 51405039-175 performance? Correct grounding, signal shielding, backplane alignment, and output range configuration are critical to maintaining accuracy and stability of the CC-PAOH01 51405039-175. Q10: How does the CC-PAOH01 51405039-175 contribute to predictive maintenance strategies in industrial automation? By continuously monitoring output behavior and detecting deviations, the CC-PAOH01 51405039-175 enables early identification of actuator degradation or wiring faults. Q11: Why is the CC-PAOH01 51405039-175 regarded as a high-reliability analog output solution in DCS environments? The CC-PAOH01 51405039-175 combines precision output generation, industrial-grade isolation, and advanced diagnostics, making it suitable for mission-critical process control applications. Q12: How does the CC-PAOH01 51405039-175 enhance overall process efficiency and control accuracy? The CC-PAOH01 51405039-175 ensures precise actuator modulation and stable analog signaling, reducing process variability and improving system-level operational efficiency.
        What primary analog signal generation role does the CC-PAOH01 51405039-175 fulfill within distributed control environments? The CC-PAOH01 51405039-175 functions as a high-integrity analog output module designed to convert digital control instructions from a DCS into standardized high-level analog signals for industrial actuators. Q2: How does the CC-PAOH01 51405039-175 achieve high-fidelity analog output synthesis in process automation systems? The CC-PAOH01 51405039-175 employs precision digital-to-analog conversion circuitry combined with signal conditioning stages to generate stable, linear, and accurate analog outputs. Q3: Why is the CC-PAOH01 51405039-175 critical for closed-loop regulatory control in industrial process applications? The CC-PAOH01 51405039-175 provides deterministic output signals that regulate final control elements such as valves, dampers, and actuators, ensuring stable feedback-driven process control. Q4: What types of industrial applications are best suited for deployment of CC-PAOH01 51405039-175? The CC-PAOH01 51405039-175 is commonly utilized in oil & gas processing, chemical manufacturing, power generation, and refining industries, where precise analog actuation is essential. Q5: How does the CC-PAOH01 51405039-175 ensure electromagnetic robustness and signal integrity in harsh industrial environments? The CC-PAOH01 51405039-175 integrates electrical isolation, filtering mechanisms, and robust analog circuitry design to minimize noise susceptibility and maintain output stability. Q6: How is the CC-PAOH01 51405039-175 integrated into Honeywell distributed control system architectures? The CC-PAOH01 51405039-175 interfaces via system backplanes within Honeywell Experion or compatible DCS platforms, enabling real-time process control execution. Q7: What diagnostic and fault detection capabilities are embedded in the CC-PAOH01 51405039-175? The CC-PAOH01 51405039-175 supports channel-level diagnostics including open-loop detection, output deviation monitoring, and module health status reporting. Q8: How does the CC-PAOH01 51405039-175 support fail-safe operation in mission-critical process systems? The CC-PAOH01 51405039-175 is engineered to transition to predefined safe output states in the event of system anomalies, ensuring process containment and operational safety. Q9: What installation and configuration parameters are essential for optimal CC-PAOH01 51405039-175 performance? Correct grounding, signal shielding, backplane alignment, and output range configuration are critical to maintaining accuracy and stability of the CC-PAOH01 51405039-175. Q10: How does the CC-PAOH01 51405039-175 contribute to predictive maintenance strategies in industrial automation? By continuously monitoring output behavior and detecting deviations, the CC-PAOH01 51405039-175 enables early identification of actuator degradation or wiring faults. Q11: Why is the CC-PAOH01 51405039-175 regarded as a high-reliability analog output solution in DCS environments? The CC-PAOH01 51405039-175 combines precision output generation, industrial-grade isolation, and advanced diagnostics, making it suitable for mission-critical process control applications. Q12: How does the CC-PAOH01 51405039-175 enhance overall process efficiency and control accuracy? The CC-PAOH01 51405039-175 ensures precise actuator modulation and stable analog signaling, reducing process variability and improving system-level operational efficiency.
      • How does the CC-PAOH01 51405039-175 achieve high-fidelity analog output synthesis in a process automation system?
        The CC-PAOH01 51405039-175 employs a precision digital-to-analog converter circuit, combined with a signal conditioning stage, to generate stable, linear, and accurate analog outputs.
      • Why is the CC-PAOH01 51405039-175 crucial for closed-loop regulation and control in industrial process applications?
        The CC-PAOH01 51405039-175 provides a deterministic output signal for regulating final control elements such as valves, dampers, and actuators, thereby ensuring stable feedback-driven process control.
      • In which industrial sectors is the CC-PAOH01 51405039-175 best suited?
        The CC-PAOH01 51405039-175 is commonly used in industries such as oil and gas processing, chemical manufacturing, power generation, and refining, where accurate analog actuation is crucial.
      • How does the CC-PAOH01 51405039-175 support predictive maintenance strategies in industrial automation?
        By continuously monitoring output behavior and detecting deviations, the CC-PAOH01 51405039-175 can detect actuator performance degradation or line faults early.
      • Why is the CC-PAOH01 51405039-175 considered a highly reliable analog output solution for DCS environments?
        The CC-PAOH01 51405039-175 combines accurate output generation, industrial-grade isolation, and advanced diagnostics, making it suitable for mission-critical process control applications.
