Features:
- DC/DC converter 24 Vdc to 30 Vdc/1 A converter (FTA-T-15)
- Used to provide an isolated 30 Vdc / 1 A to other field termination assemblies (FTAs)
- The LED is on and the relay contact is closed if the local DC/DC output voltage is OK

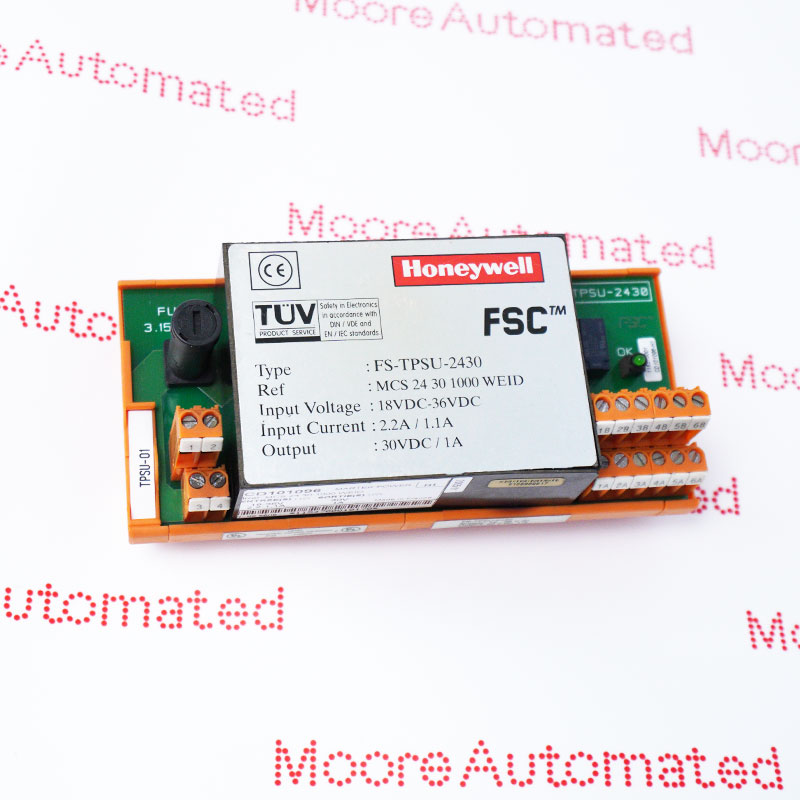

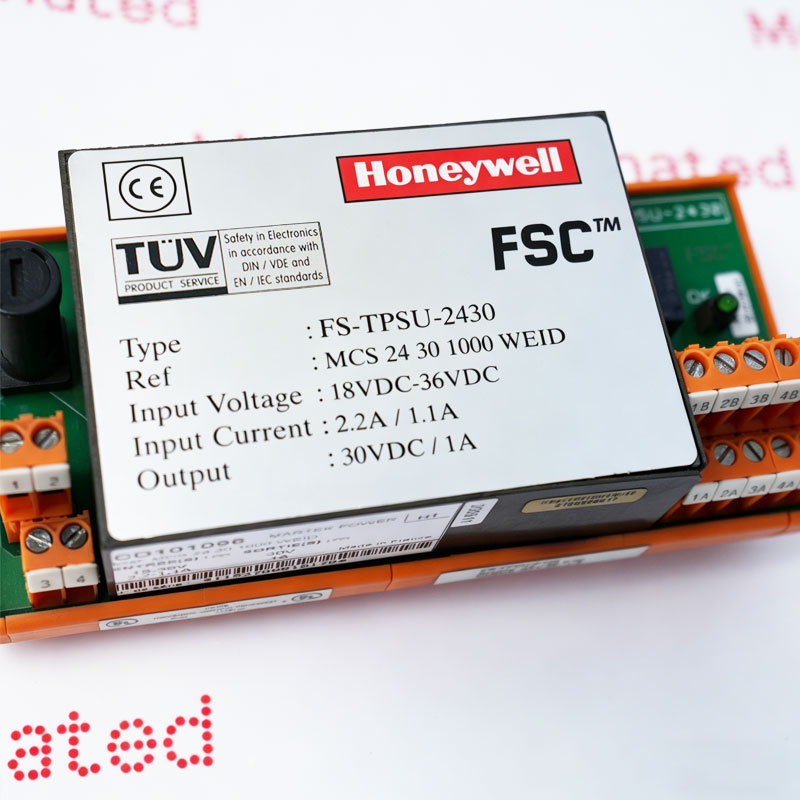

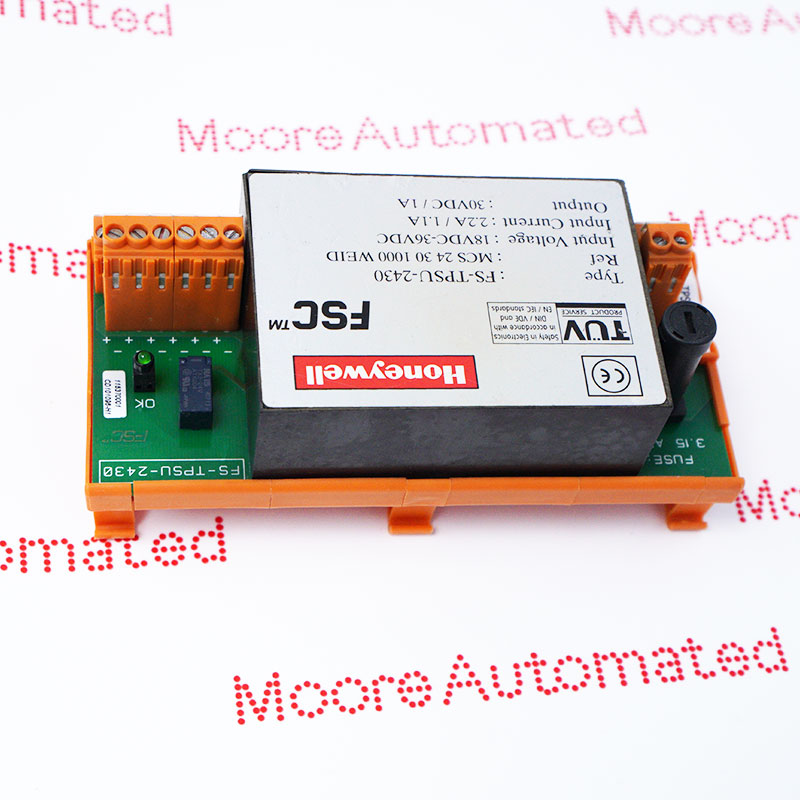

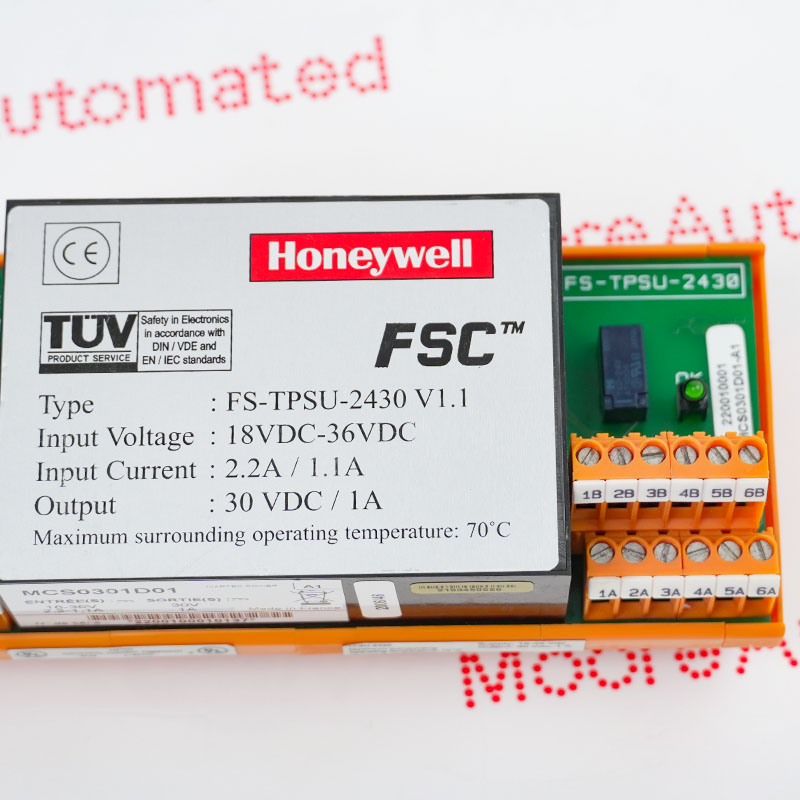

The FS-TPSU-2430 module is a DC/DC converter used to provide isolated 30 Vdc / 1 A power to other field terminal assemblies (FTAs), such as the analog input FTA module FTA-T-14, FS-TSAI1620m, FS-TSHART-1620m, or the active analog input FTA module FTA-T-16.
It features voltage monitoring (indicated by a local LED) and alarm functionality (reading relay contacts). If the local DC/DC output voltage is normal, the LED will light up, and the relay contacts will close.
The FS-TPSU-2430 Honeywell 24 V DC to 30 V DC/1 A converter may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TPSU-2430 24 V DC to 30 V DC/1 A converter Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FS-TPSU-2430 operates based on an industrial-grade AC/DC power conversion and voltage regulation mechanism. Its core function is to convert input AC or unstable DC power into a stable 24V DC output through rectification, filtering, and a high-frequency switching converter circuit, providing a continuous and reliable power supply for control systems, I/O modules, and field devices.
Analog Field Terminal Assembly (FTA) Power Supply: This module is designed to provide isolated power to field terminal assemblies (FTAs), particularly suitable for analog input modules such as the TSAI-1620m and TSHART-1620m.
Safety Management Systems: As a critical power component in SIL3 (Safety Integrity Level 3) applications, this module ensures reliable power for emergency shutdown (ESD) systems, fire and gas protection, and burner management.
Critical Industry Safety: This module is widely used in high-risk industrial environments, including refineries, chemical plants, and power plants.
