Features:
- Fail-safe 0(4)-20 mA analog input FTA (16 channels)
- The FS-TSAI-1620m module has sixteen analog input channels
- Enable monitoring of the external power connected to the FS-TSAI1620m module
The FS-TSAI-1620m Field Terminal Module (FTA) is the interface between field components (sensors, etc.) in the FSC system and the fail-safe high-density analog input module 10105/2/1. It can be used to connect signals from Class I Zone 2 hazardous locations.
The FS-TSAI-1620m module has 16 analog input channels for both safety-related and non-safety-related applications. These 16 channels (divided into two groups of eight, sharing a single 0V power supply) are connected via a System Interconnect Cable (SIC), which plugs into the SIC connector on the FTA module.
The FS-TSAI-1620m Honeywell Analog input module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSAI-1620m Analog input module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

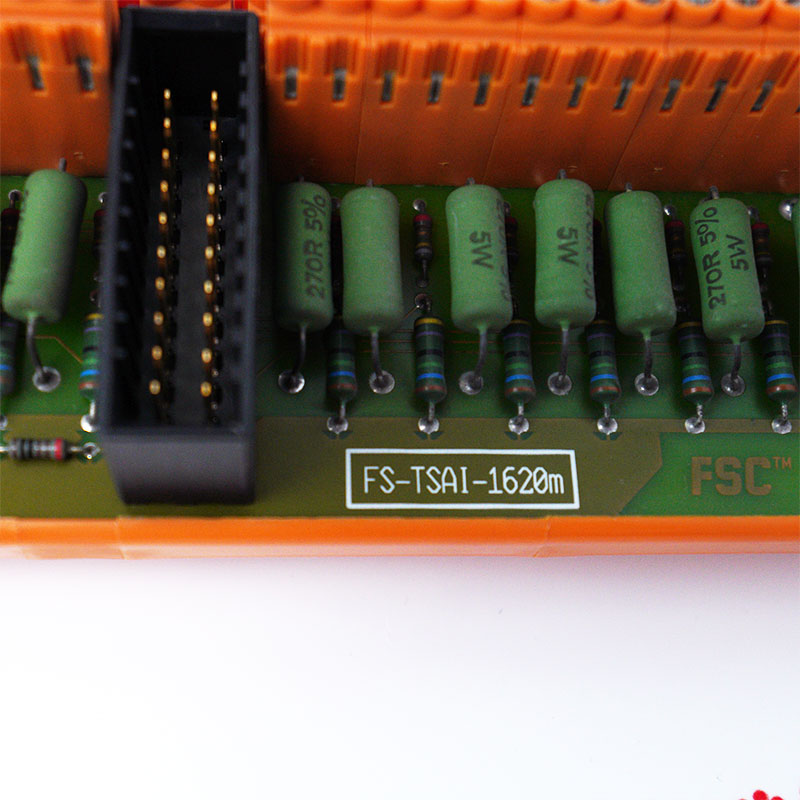

The FTA module uses a universal snap-on mounting method, fits standard DIN EN rails, and is equipped with screw terminals for connecting power, ground, and field wiring. Each channel's input circuitry includes a high-precision resistor to convert the input current (0 to 20 mA) to the input voltage required by the high-density analog input module 10105/2/1. The analog transmitter is powered by a series resistor. Each analog signal has its own independent field cable shield terminal.
Safety-Critical Signal Conditioning: Interfaces to 0(4)–20 mA analog signals from sensors measuring critical process variables such as temperature, pressure, and flow.
Hazardous Location Interface: Certified for use in Class I Zone 2 hazardous locations, providing voltage and current limits to ensure safe operation in explosive environments.
Safety Loop Monitoring: Suitable for safety-related and non-safety-related applications in industries such as oil and gas, chemical, and power generation.
Power Distribution: Distributes power to field transmitters while monitoring external power sources to ensure system integrity.
