- The field termination assembly module FS-TSGAS-1624
- Fail-safe Gas -Flame detector input FTA (0 - 20 mA, 16 channels)
- Module has sixteen analog input channels which may be used for both safety-related and non-safety-related applications

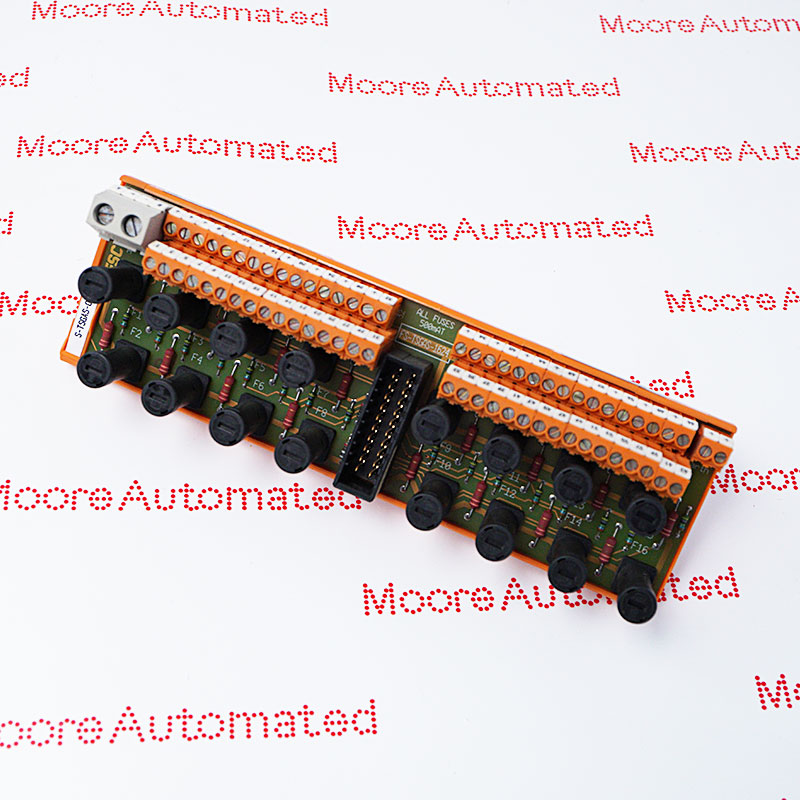

The FS-TSGAS-1624 Field Terminal Module (FTTM) is the interface between field gas/flame detectors and the fail-safe high-density analog input module 10105/2/1 (in the FSC system). The FS-TSGAS-1624 module features 16 analog input channels and can be used for both safety-related and non-safety-related applications.

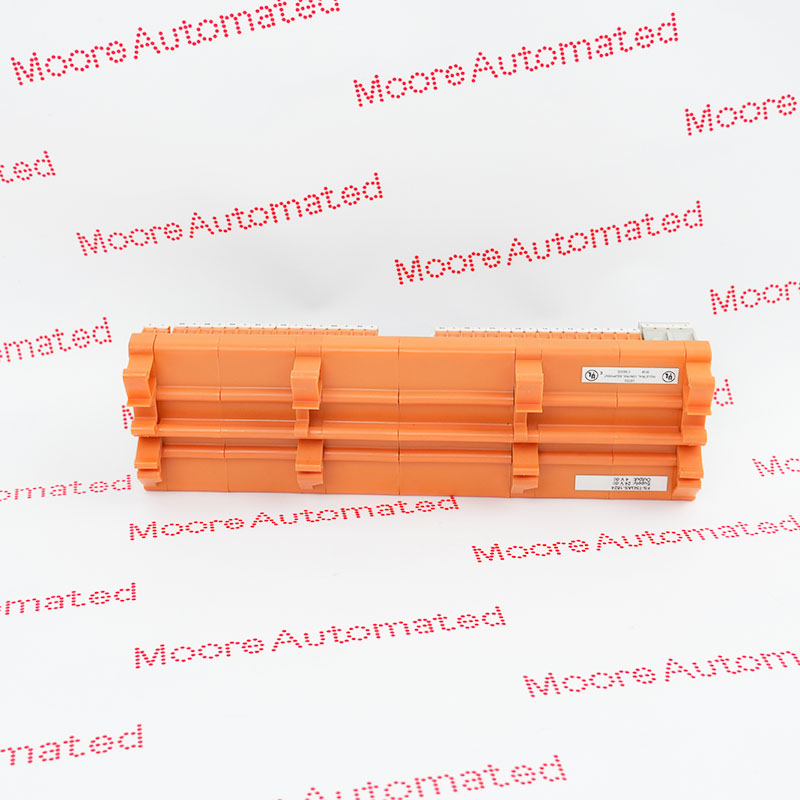

The FS-TSGAS-1624 module uses a SIC-C-12 system interconnect cable to transmit the 16 input signals to a pair of redundant 10105/2/1 modules. The FTA module features a universal snap-on mounting design suitable for standard DIN EN rails and includes screw terminals for connecting power, grounding, and field wiring.
The FS-TSGAS-1624 Honeywell Field termination assembly module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSGAS-1624 Field termination assembly module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

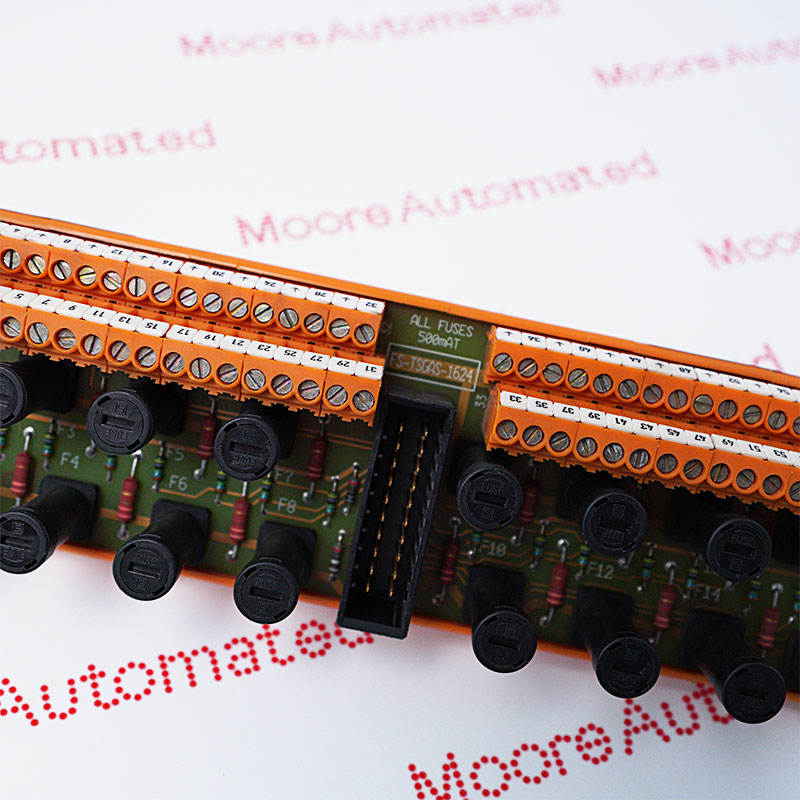

Each channel's input circuitry includes a high-precision resistor that converts the input current (0 to 20 mA) into an input voltage for connection to the high-density analog input module 10105/2/1. Each channel's analog transmitter power supply is equipped with a fuse (500 mA). Each analog input has its own independent field cable shielding terminal.
Gas and Flame Detection: Designed to connect field detectors and Honeywell safety management systems for monitoring leaks or fires in hazardous environments.
Safety-Critical Monitoring: Used for safety-related applications requiring SIL3 safety level compliance (when used in an appropriate system architecture), for fire protection and process safety.
Industrial Safety Systems: Typically deployed in high-risk industries such as oil refineries, chemical plants, and power plants.
