Features:
- Digital output (relay) FTA module
- DO (relay) FTA for AK5/6 applications (8 channels)
- Field termination assembly module FTA module

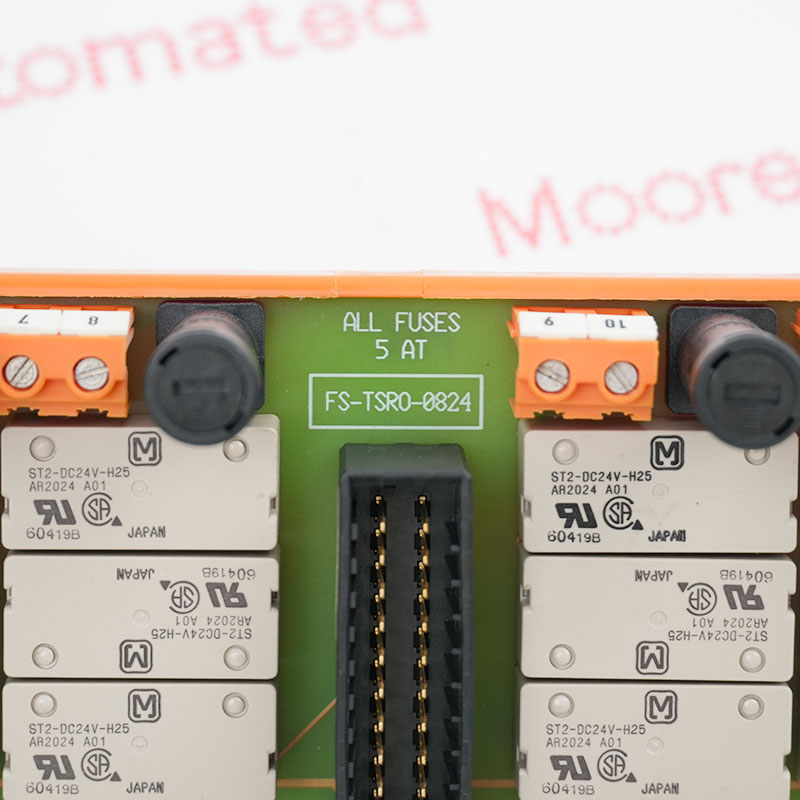

The FS-TSRO-0824 field wiring module is the interface between the system interconnect cable SIC-C-12 and external field wiring (screw terminals). It features eight relay-based passive output channels suitable for applications with safety levels of AK6 and below, requiring no troubleshooting functionality. The FS-TSRO-0824 module meets the general safety requirements for AK5/6 safety levels as defined in DIN V 19250.
These relays can drive a variety of loads, including 115/230 Vac loads, enabling the FSC system to have the 115/230 Vac output capability required for AK5/6 applications. LED indicators on the module show the relay energization status.
The FS-TSRO-0824 Honeywell Digital output (relay) FTA module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TSRO-0824 Digital output (relay) FTA module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
These eight channels can be connected to the FS-TSRO-0824 module via the system interconnect cable SIC-C-12. This cable inserts into the SIC connector on the FTA module and connects to a pair of (redundant) 10201/2/1 modules. The FTA module uses a universal snap-on mounting method, is compatible with standard DIN EN rails, and is equipped with screw terminals for field wiring.
Emergency Shutdown (ESD) Systems: Serving as a safety output interface to trigger critical shutdown procedures in petrochemical and industrial plants.
Fire and Gas Protection: Used to activate fire suppression systems, audible and visual alarms, and visual warning signals in hazardous environments.
Process and Machine Control: Safely regulates the operation of actuators, pumps, and valves to ensure they remain in a fail-safe state in the event of system failure.
HVAC and Infrastructure Safety: Monitors and controls temperature-critical processes and safety-related ventilation systems.
