Features:
- Modbus Master/Slave Enhanced Network Interface Module
- Has one slot and a baud rate from 110 baud to 115.2 kbps
- Single Slot - 1756 ControlLogix® backplane compatible

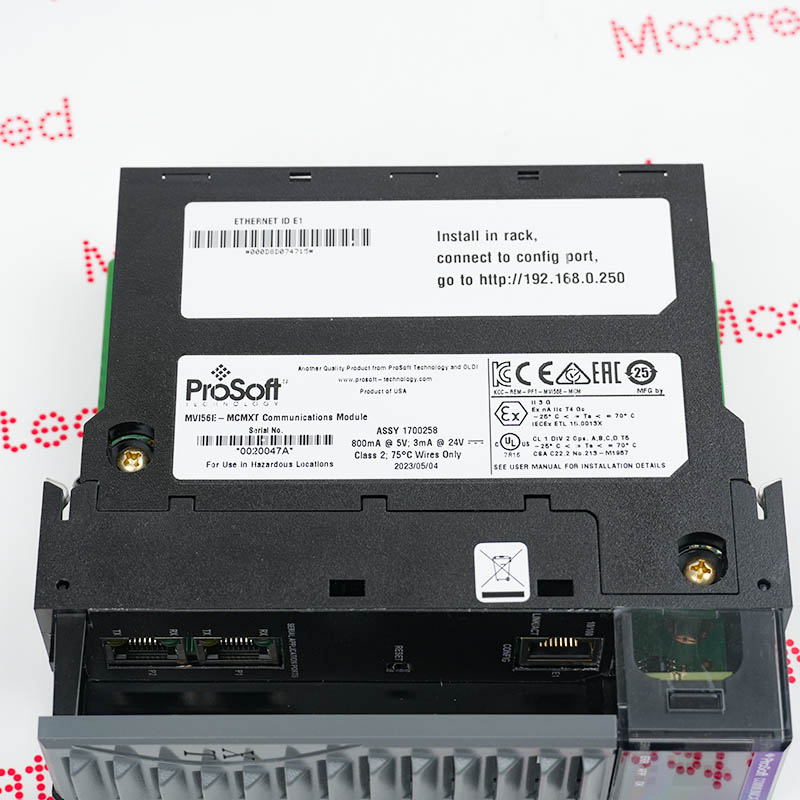

The MVI56E-MCMXT is designed specifically for the Logix-XT™ control platform, enabling it to operate in extreme environments. It can withstand higher operating temperatures and features a conformal coating to protect it from harsh or corrosive environments.
Belongs to the ProSoft series of network interface modules. This module features a single-slot 1756 ControlLogix-compatible backplane, a 4-character scrolling display, an alphanumeric LED display for status and diagnostic data (in simple English), a RIUP (hot start button) function, and a 10/100Mb Ethernet port (with automatic cable cross-detection) for network configuration and diagnostics.
The MVI56E-MCMXT PROSOFT Enhanced Network Interface Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
PROSOFT MVI56E-MCMXT Enhanced Network Interface Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ProSoft MVI56E-MCMXT network interface module uses a non-volatile industrial-grade Compact Flash card design for storing network and module configurations, enabling rapid field module replacement via a transfer CF card. The ProSoft Configuration Generator provides a graphical configuration tool for quickly and easily manipulating the ProSoft MVI56E-MCMXT network interface module's configuration files and viewing module diagnostic information.
Note: When using the MVI56E-MCMXT, a 1756-A5XT or 1756-A7LXT chassis must be used. In these chassis, the spacing between modules is larger than in a standard ControlLogix chassis. Please insert blank spacers between active modules.
The “XT” (Extended Temperature) version is designed for a temperature range of -25°C to 70°C (-13°F to 158°F) and features a conformal coating. This makes it the standard choice for the following industries:
Oil & Gas: Pipeline monitoring, wellhead control, and offshore platforms.
Water and Wastewater: Remote pumping stations and treatment facilities.
Power and Energy: Substation automation and solar/wind farm monitoring.
Mining and Metallurgy: Control systems for dusty, high-temperature, or chemically corrosive environments.
Revision Part #
Also known as
MVI56E-MCMXT/A
MVI56E-MCMXT Ser A, Series A, Rev A
