Features:
- High-performance CPU / Processor Board module
- Designed for DCS industrial automation systems
- ABB's distributed control systems (DCS) and Advant Controller series
The ABB PM630 3BSE000434R1 is a high-performance central processing unit (CPU) core control module designed specifically for the Master Piece 90 control system. As the "brain" of industrial automation systems, it is primarily used to execute complex control logic, perform real-time high-speed data processing, and handle various process input and output signals.
It integrates multiple industrial communication interfaces, supporting efficient data interconnection and protocol conversion with I/O modules, host monitoring systems, and other field devices. The module also features a comprehensive self-diagnostic mechanism that monitors hardware status in real time. Upon detecting an anomaly, it can trigger an alarm or switch to redundant protection mode, thereby minimizing the risk of unplanned downtime due to system failures.
The PM630 3BSE000434R1 ABB CPU processor board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB PM630 3BSE000434R1 CPU processor board INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
As this is a mature, professional industrial automation component, it can be widely sourced through the secondary market, professional automation distributors, and global platforms（moore automated）.

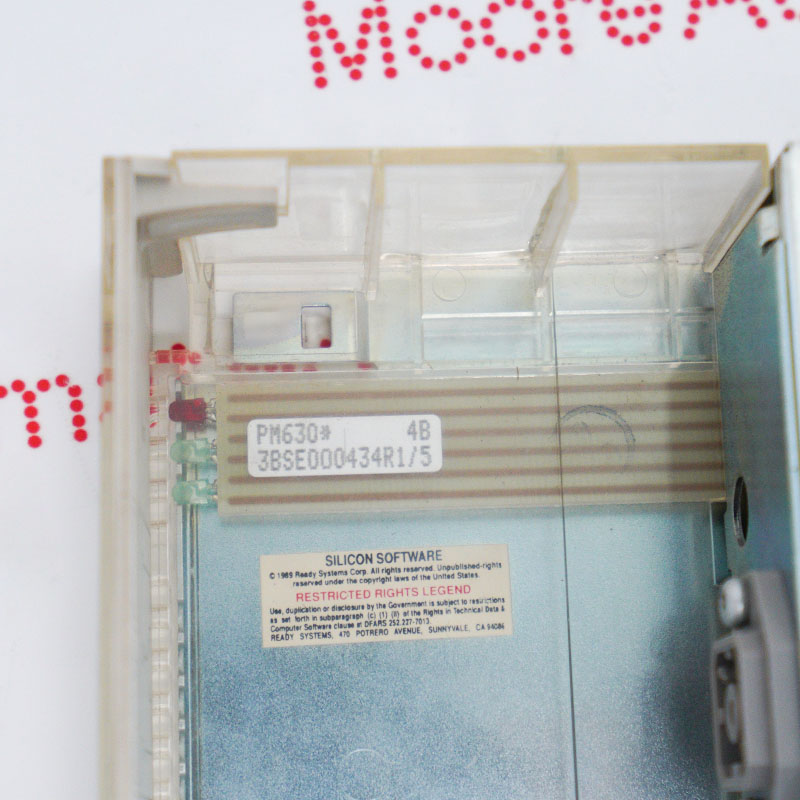

Other model names: This part is listed as PM630 3BSE000434R1/5.
The PM630 3BSE000434R1 operates based on a classic periodic scanning mechanism. During system operation, it first sequentially reads real-time status data from field sensors and input modules via the communication bus and stores it in an internal mirror register.
Subsequently, the microprocessor executes logical operations, PID parameter adjustments, and mathematical calculations line by line according to a pre-written control program.
Finally, the module converts the calculation results into control commands, updates the output mirror area, and drives actuators (such as valves and motors) via the fieldbus, thereby achieving closed-loop precise control of the industrial production process.
