Features:
- INTKM01 is identified by module function Time keeper master within the documented Harmony Sequence of Events system configuration.
- The official specification gives operating supply as 5 VDC +/-5%, which must be retained during selection.
- Commissioning must also preserve typical current (300 mA) and the stated connection limits.

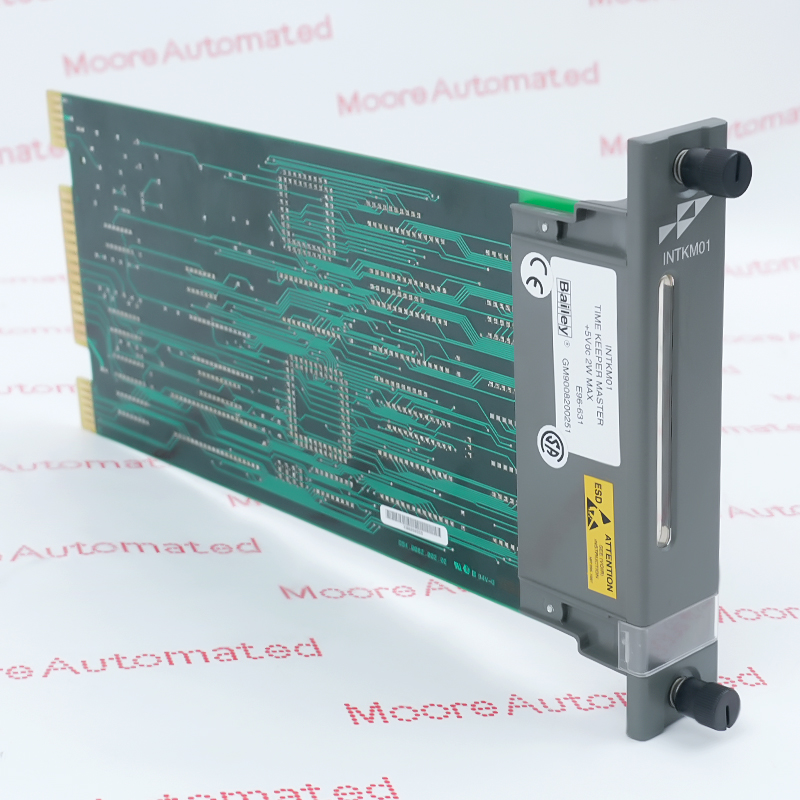

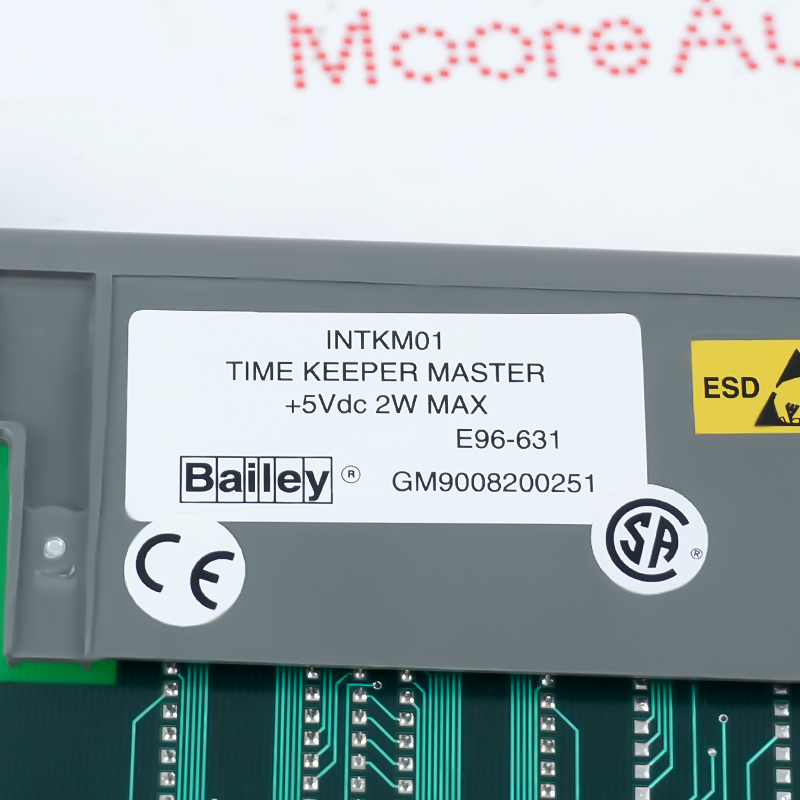

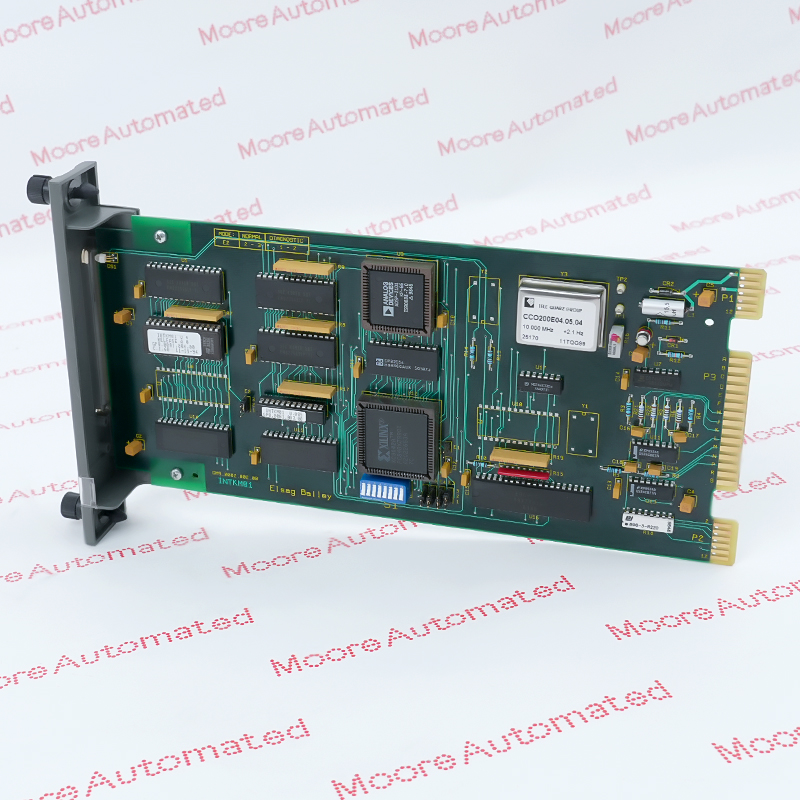

A Harmony Sequence of Events time-keeper master module that receives IRIG-B time through the NTST01 termination unit and distributes synchronized RS-485 timing to event-monitoring hardware. It uses a 16-bit 10 MHz processor and operates from the Harmony 5 VDC module supply. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official Harmony Sequence of Events system documentation.
Moore Automated supports exact-item verification and spare-part enquiries for INTKM01.
ABB INTKM01time keeper master module Manual documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete INTKM01 identity and compare module function, operating supply and typical current with the installed design before approving a replacement.
The module requires the documented Harmony Sequence of Events architecture, 5 V backplane supply, NTST01 time interface, IRIG-B source and RS-485 timing network. Cabinet addressing and companion modules must be confirmed.
Preserve the cabinet slot and addressing record, connect the NTST01 timing path and shielded twinaxial network, verify IRIG-B reception and check synchronization and absolute-time accuracy across the event system.
