Features:
- Interconnection Cables
- 330500 Velomitor Piezo-velocity Sensor
- Min. length: 2.0 ft (0.6 m) and Max. length: 99 ft (30 m)

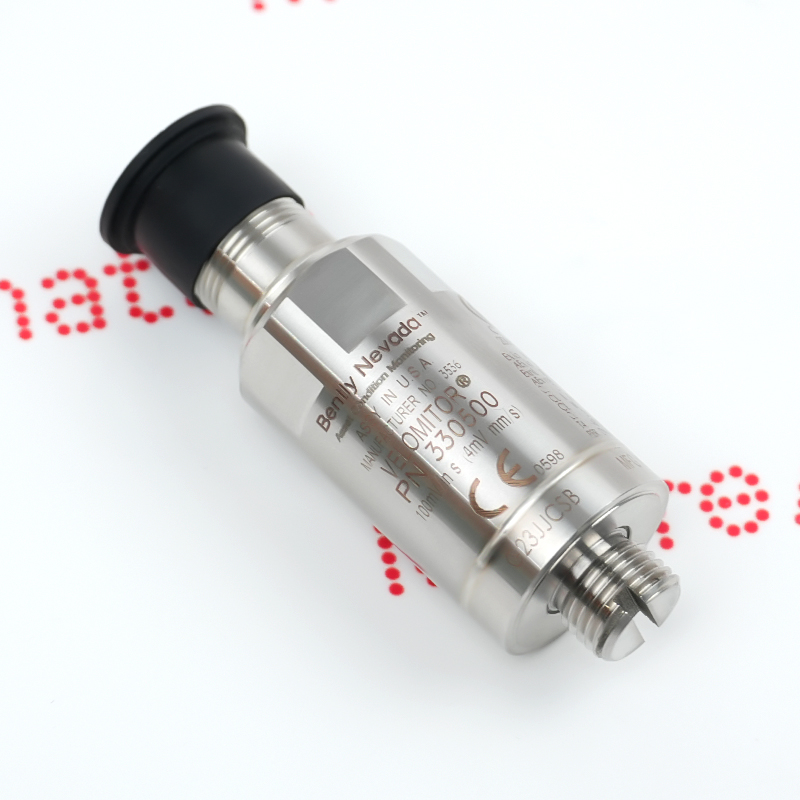

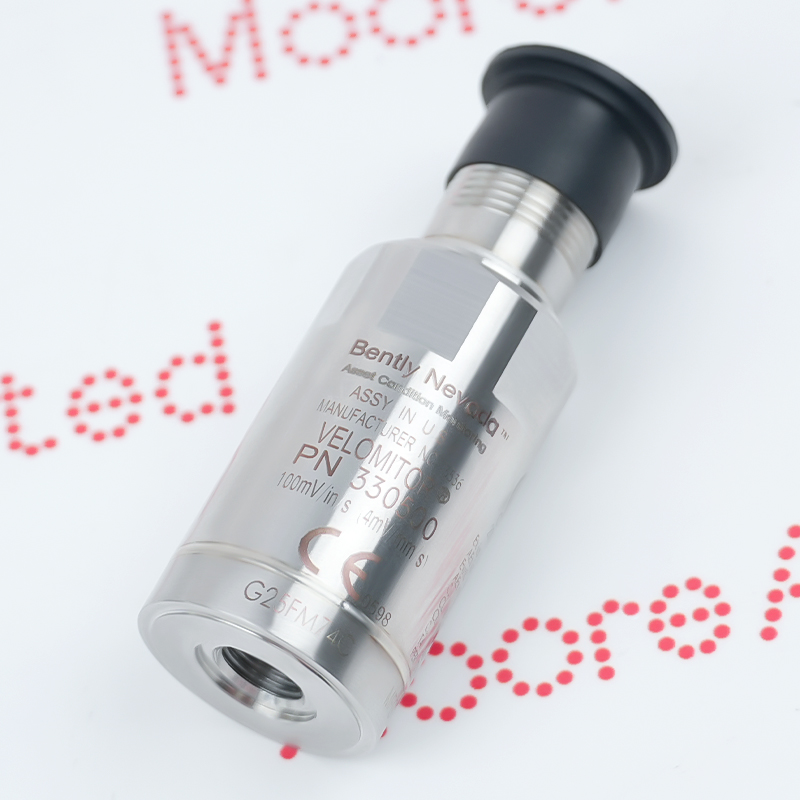

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation
The 125065-12 Bently Nevada Interconnection Cables may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 125065-12 Interconnection Cables Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
If you integrate the 330500 Velomitor output to measure displacement, electrical noise from interference and the transducer circuit can be amplified. The noise can degrade performance of 330500 transducers and produce inaccurate displacement data.
Absolute Vibration Monitoring: Connects to the Model 330500 vibrometer for monitoring absolute vibration velocities in structures, housings, or bearing housings.
Target Machinery: Widely used in machinery employing rolling bearings (ball or roller bearings), including centrifugal pumps, electric motors, cooling tower fans, and air centrifuges.
Installation Warning: This sheathed cable assembly is designed for outdoor, tray-mounted, or standard junction box mounting. It cannot be used within the conventional Model 21128 heavy-duty explosion-proof velocity sensor housing, which requires an unsheathed threaded connection.
