Features:
- Twenty-five-foot (7.6 m) length selected by the -25 order suffix.
- Three shielded 22 AWG (0.5 mm2) conductors for accelerometer signal and power wiring.
- Armored construction provides added mechanical protection along the installed route.

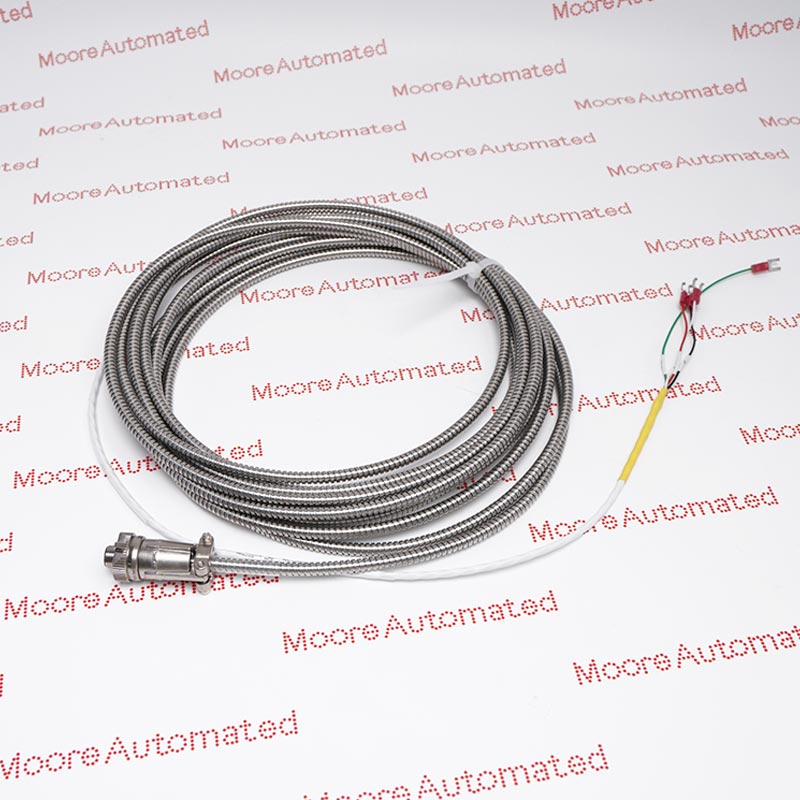

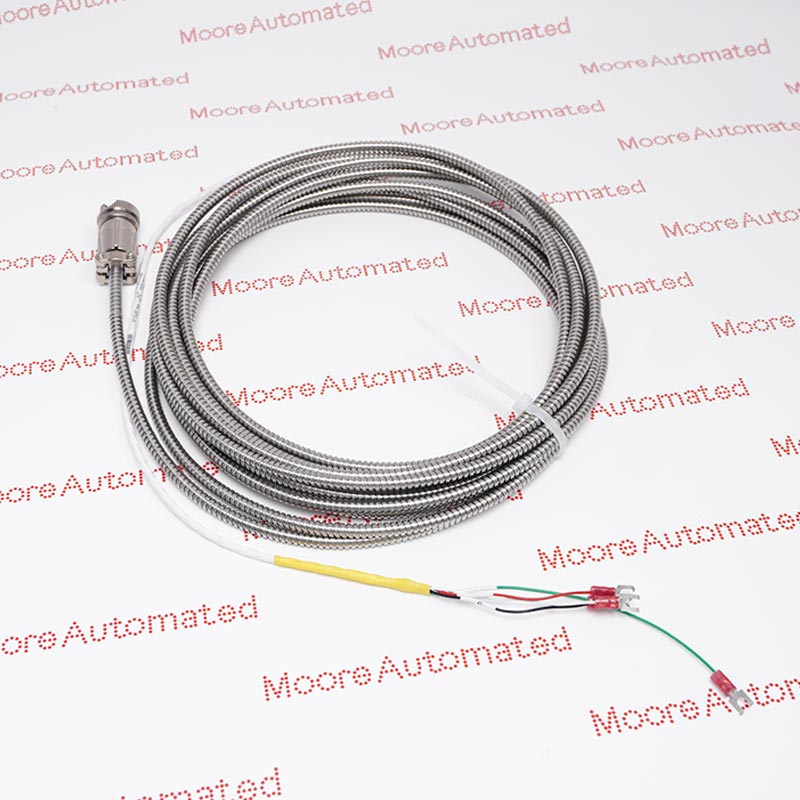

- Factory interface uses a 3-socket plug at the sensor end and terminal lugs at the monitor end.
The 16710 cable family is documented for Bently Nevada 330400 and 330425 accelerometers. The cable may be ordered in one-foot increments, but the -25 suffix fixes this item at 25 ft (7.6 m).
Before replacement, confirm the accelerometer model, connector condition, cable route and terminal identification. Do not substitute a non-armored 16925 cable unless the installation specification explicitly permits it.
The exact 16710-25 identity, condition, included hardware and receiving-system fit must be confirmed before purchase or replacement.

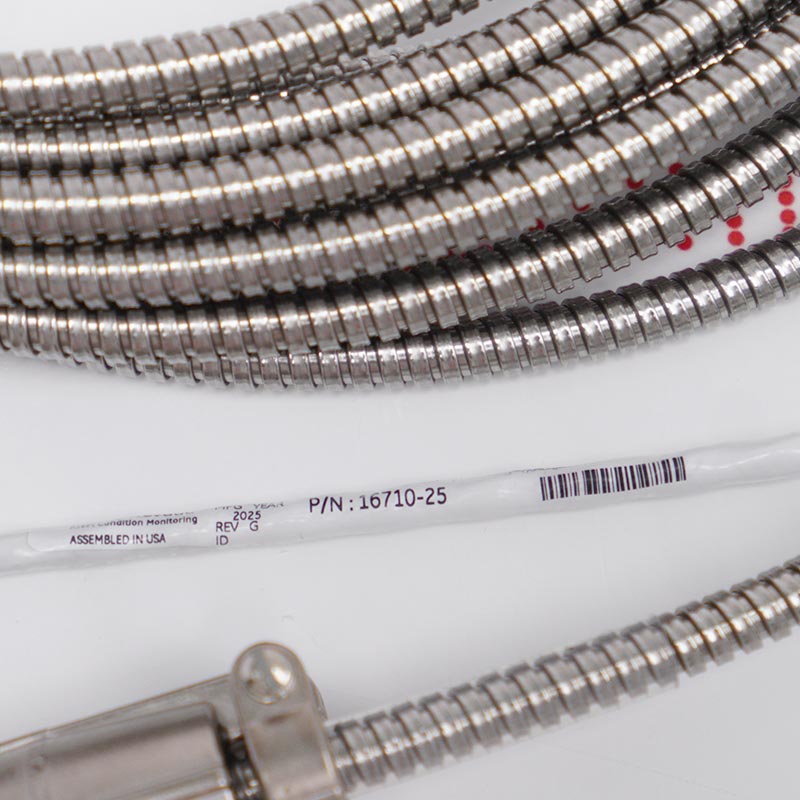

Bently Nevada 16710-25 25 ft Armored Interconnect Cable documentation and related resources.
Important Notice: The uploaded PDF contains the original manufacturer first page and only the pages relevant to this model or identified product family. Confirm the complete order code, nameplate, connected hardware and installation requirements before replacement. Accessories, cables and certificates are included only when stated in the written quotation.
Confirm the three-conductor shielded 22 AWG construction, armor condition, 3-socket sensor plug and terminal-lug monitor end before approving the item.
Use 16710-25 with the documented Bently Nevada 330400 or 330425 accelerometer and verify the connected monitor input, polarity and cable route.
Maintain the approved bend radius, protect the connector from strain and moisture, identify every terminal lug, then verify sensor bias and signal response after installation.
