Features:
- Proximity Probe Housing Assemblies

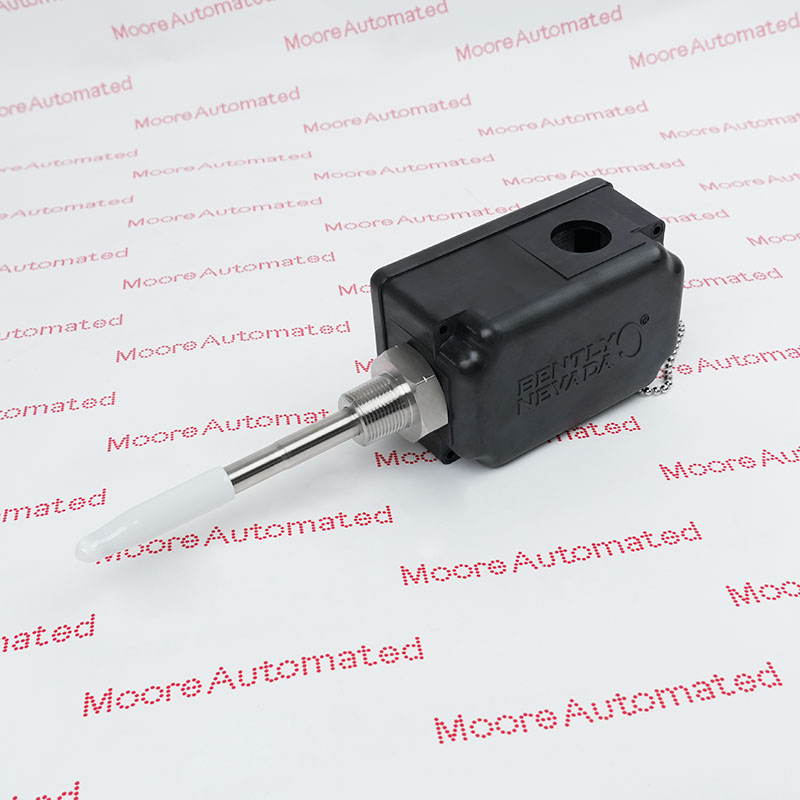

- 31000 and 32000 Proximity Probe Housing Assemblies
- The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS)
When proximity probes need to be mounted inside a machine housing, the 31000/32000 type proximity probe housing assembly is recommended. This assembly is typically used for radially mounted sensors, whether for vibration or key phase measurements. Using a proximity probe housing allows for easy external access to the proximity probe and its extension cables, enabling gap adjustment or probe replacement without disassembling the machine.
The 31000/32000 type proximity probe housing assembly is made of polyphenylene sulfide (PPS), an advanced high-strength thermoplastic material with excellent corrosion resistance. Other components of the housing assembly are made of corrosion-resistant stainless steel. Versions of this housing assembly pre-installed with the 3300 XL type proximity probe and various conduit fittings are available by order.
The 32000-29-05-04-090-07-02 Bently Nevada Proximity Probe Housing Assemblies may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 32000-29-05-04-090-07-02 Proximity Probe Housing Assemblies Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Model: 32000-29-05-04-090-07-02
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 31000 and 32000 Proximity Probe Housing Assemblies
Metric Proximity Probe Housing Assemblies
32000 - Axx-Bxx-Cxx-Dxxx-Exx-Fxx
A: Probe with Connector
00: Probe not required
16: 3300 XL 8 mm probe
26: 3300 XL NSv probe
27: 3300 XL NSv probe, multiple approvals
28: 3300 XL 8 mm probe, multiple approvals
29: 3300 XL 8 mm probe, with connector protector
30: 3300 XL 8 mm probe, with connector protector, multiple approvals
31: 3300 XL NSv probe with connector protector
32: 3300 XL NSv probe with connector protector, multiple approvals
33: 3300 XL 11 mm probe
34: 3300 XL 11 mm probe, multiple approvals
35: 3300 XL 11 mm probe with connector protector
36: 3300 XL 11 mm probe with connector protector, multiple approvals
B: Probe Cable Length
00: Probe cable not required (Option A must also be 00)
05: 0.5 m (20 in)
10: 1.0 m (39 in)
C: Standoff Adapter Length (Option C Dimension)
04: Minimum length 40 mm
20: Maximum length 200 mm
Recommendation
Order in increments of 10 mm
D: Probe Penetration Option (Option D Dimension)
760: Maximum length 760 mm
025: Minimum length 25 mm
Recommendation
Order in increments of 1.0 mm
Examples
No probe sleeve = 000
50 mm = 050
760 mm = 760
E: Fittings
00: Without fittings; two plugs and two washers.
01: One M25 fitting, two plugs.
02: Two M25 fittings, one plug.
03: Two plugs, one M20 fitting; One cable seal grip with grommets for armored probe cable
05: One DIN PG11 fitting, two plugs
07: One PG21 x M20 fitting Two plugs
08: Two PG21 x M20 fittings One plug
F: Mounting Thread
00: No outer sleeve, retainer, or retaining nut
01: M24 X 3
02: 3/4-14 NPT (Required if ordering Standoff Adapter Option.)
Antistatic Housing: The main housing is molded from glass fiber reinforced polyphenylene sulfide (PPS). Built-in conductive fibers ensure safe dissipation of static electricity in explosive or highly volatile industrial environments.
Stainless Steel Components: Inner and outer sheaths, fasteners, and tethers are all made of AISI 303 and AISI 304 stainless steel, offering excellent corrosion resistance.
Weatherproof Seal: IP66 and NEMA 4X certified, protecting critical internal sensors from industrial hazards such as dust, high humidity, oil mist, and high-pressure water jets.
API Compliant: Designed strictly according to American Petroleum Institute (API) 670 standards for externally mounted proximity probe hardware.
