Features:
- 3300 XL 8 mm Proximity Probes
- 3300 XL 8 mm Proximity Transducer System
- 330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

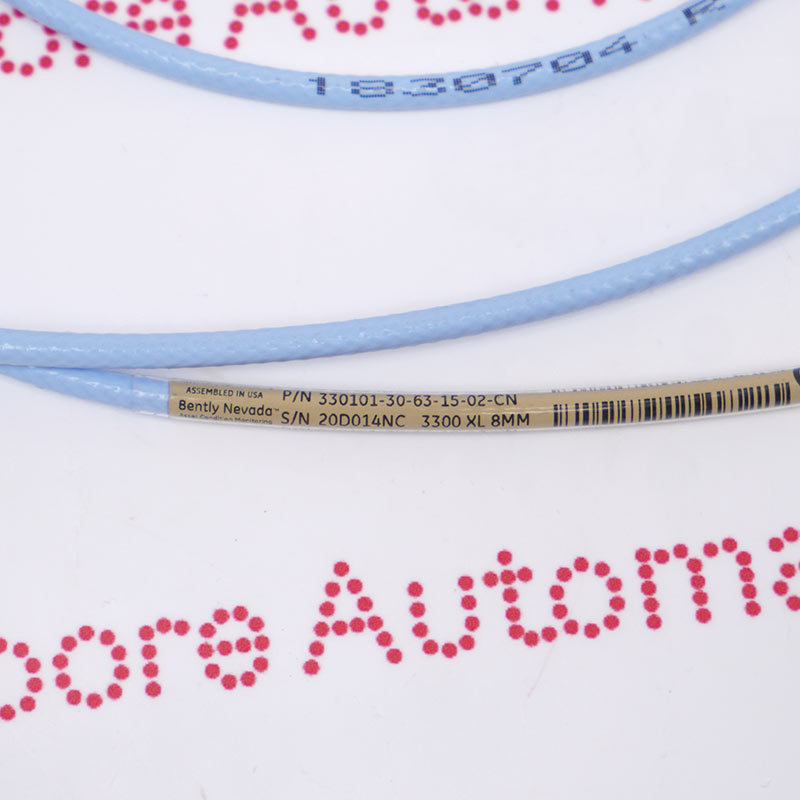

The 330101-30-63-15-02-CN Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-30-63-15-02-CN 3300 XL 8 mm Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
As the core sensor of the 3500-type mechanical protection system, this probe is widely used in the following heavy industrial sectors with extremely high safety requirements:
Oil & Gas:
Used to monitor centrifugal and reciprocating compressors on offshore drilling platforms and in refineries.
Used to detect bearing wear and axial displacement (thrust position) to prevent severe mechanical impacts.
Petrochemicals: Used in ethylene plants, large pump sets, and fans. With -CN certification, it can be safely installed in explosion-hazardous areas of chemical plants.
Power Generation:
Steam Turbines and Generators: Measures the radial vibration and axial position of the rotor.
Hydrogen Generator Sets: Monitors the runout of the turbine main shaft.
Mining & Metallurgy: Vibration monitoring of large blowers, gearboxes, and coal mills.
