Features:
- Non-contact Measurement: Eddy-current sensing measures a conductive shaft target as part of the matched proximity-transducer system.
- Defined Cable Execution: The 5 metre standard probe cable uses FEP insulation and the specified ClickLoc connector option.
- Metric Standard Mount: The 330103 construction is a metric-threaded standard-mount probe without cable armor.

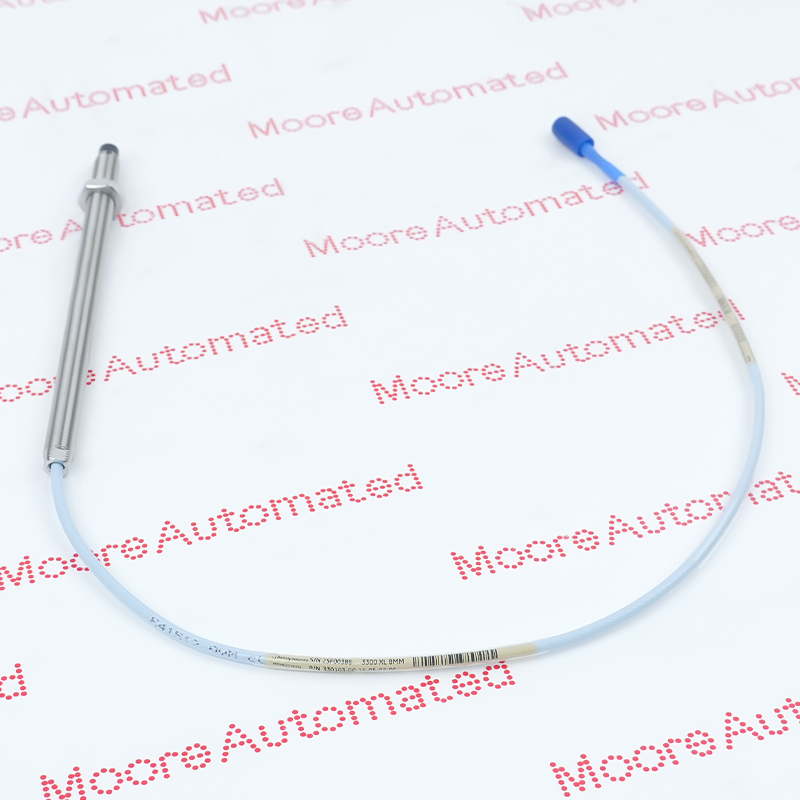

The Bently Nevada 330103-00-11-50-02-00 is a standard-mount, metric-threaded proximity probe for a 3300 XL 8 mm measurement system. It senses the distance to a conductive target without mechanical contact and is used as part of a matched probe and Proximitor combination. The complete ordering string specifies no unthreaded section, a 110 mm case, a 5 metre standard cable, a miniature coaxial ClickLoc connector without a protector, and no agency approval. Its PPS tip, stainless-steel case and FEP-insulated cable provide the documented construction for this execution. The 5 metre probe is intended for a compatible 5 metre system; connecting arbitrary extension lengths does not preserve the calibrated system characteristics.
The transducer calibration belongs to the complete measurement system, including probe, cable arrangement, Proximitor and target material. The electrical length must therefore be preserved when selecting a replacement, rather than adding cable solely to reach the cabinet. The standard probe temperature specification also has an important low-temperature seal caution, and the final -00 code does not grant agency approval. Cable bends, connector cleanliness and the mechanical mounting must follow the manufacturer installation guidance to protect the installed measurement.
Technical source: Bently Nevada datasheet 141194 Rev. AM. Match the complete ordering code and supplied execution.
Bently Nevada 330103-00-11-50-02-00 English manufacturer documentation
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A 5 metre probe is intended for use with a matching 5 metre Proximitor system. The total electrical length and the correct system components must be preserved; an arbitrary extension cable changes the configuration.
The probe measures a conductive target through the matched proximity system. Set the gap and verify target material using the manufacturer procedure and the installed monitoring-system requirements.
The standard probe operating range is -52°C to +177°C. The datasheet warns that temperatures below -34°C may cause premature failure of the probe pressure seal; assess process containment separately.
