Features:

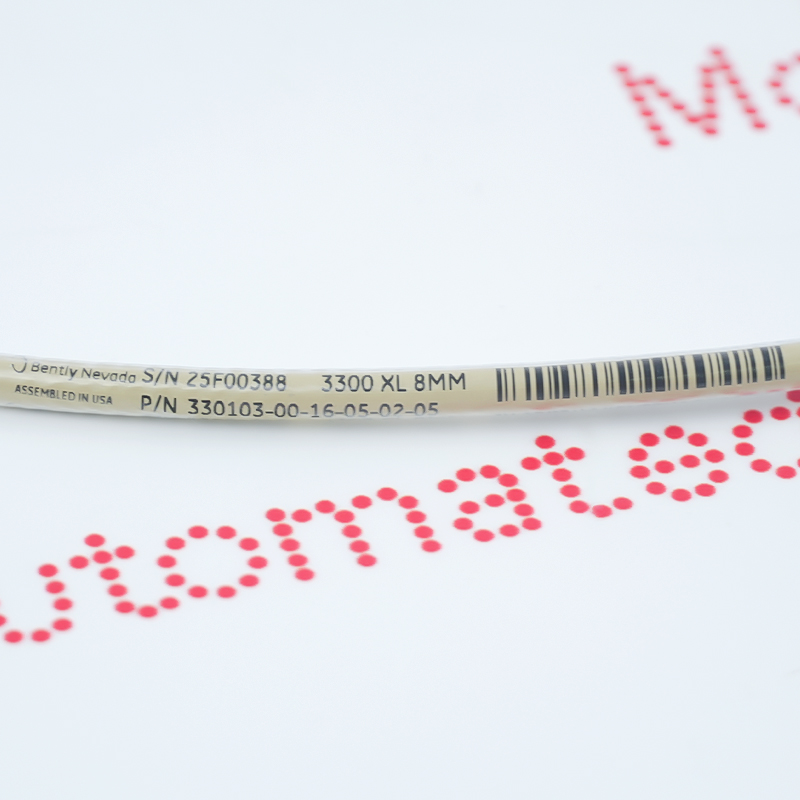

- 3300 XL 8 mm metric: 330103-00-16-05-02-05 belongs to the documented manufacturer product family.
- Configuration: 0 mm unthreaded length, 160 mm case, 0.5 m total cable, standard ClickLoc connector option 02, and multiple approvals option 05.
- Verification: Confirm all 00-16-05-02-05 suffixes, metric thread, case length, cable type, and system length before replacement.

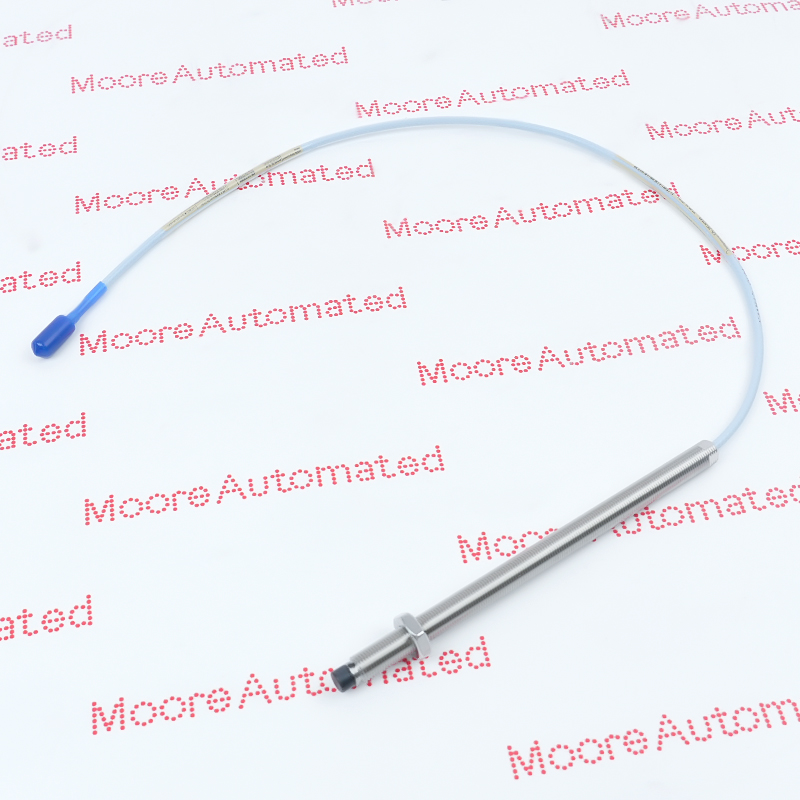

Bently Nevada 330103-00-16-05-02-05 is m10 x 1 proximity probe without armor designed for metric-thread Bently Nevada 3300 XL 8 mm proximity transducer systems. According to the official manufacturer documentation, it measures shaft vibration and position through a matched non-contact eddy-current transducer system. The ordering identity records 0 mm unthreaded length, 160 mm case, 0.5 m total cable, standard ClickLoc connector option 02, and multiple approvals option 05, so the complete suffix and nameplate information should be reviewed for a maintenance replacement, system extension, or critical spare.
Technical details for 330103-00-16-05-02-05 are limited to the applicable Baker Hughes Bently Nevada datasheet and official ordering information. Final suitability depends on the metric installation thread, 3300 XL 8 mm extension cable, Proximitor Sensor, target material, and approvals.
The Bently Nevada 330103-00-16-05-02-05 M10 x 1 proximity probe without armor is supported by Moore Automated for verified industrial replacement and spare-part requirements.
Bently Nevada 330103-00-16-05-02-05 M10 x 1 proximity probe without armor manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Integration Requirements
Confirm the metric installation thread, 3300 XL 8 mm extension cable, Proximitor Sensor, target material, and approvals. Compare the complete 330103-00-16-05-02-05 ordering code and nameplate data with the installed item before purchase.
Commissioning Guidance
Follow the manufacturer instructions and verify M10 x 1 thread engagement, probe gap, connector protection, cable routing, and total system length. Any cable, connector, housing, mounting hardware, or matched transducer component is separate unless listed in the quotation.
Model Selection Notes
0 mm unthreaded length, 160 mm case, 0.5 m total cable, standard ClickLoc connector option 02, and multiple approvals option 05. Use the official ordering table to confirm every suffix, country approval, and custom MOD detail that applies.
