Features:
- 3300 XL 8 mm Reverse Mount Probes
- 330105-02-12 3/8-24 UNF threads
- 3300 XL 8 mm Proximity Transducer System
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.
The 330105-xx-xx-10-02-05 mod：157310-11 Bently Nevada 3300 XL 8 mm Reverse Mount Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330105-xx-xx-10-02-05 mod：157310-11 3300 XL 8 mm Reverse Mount Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

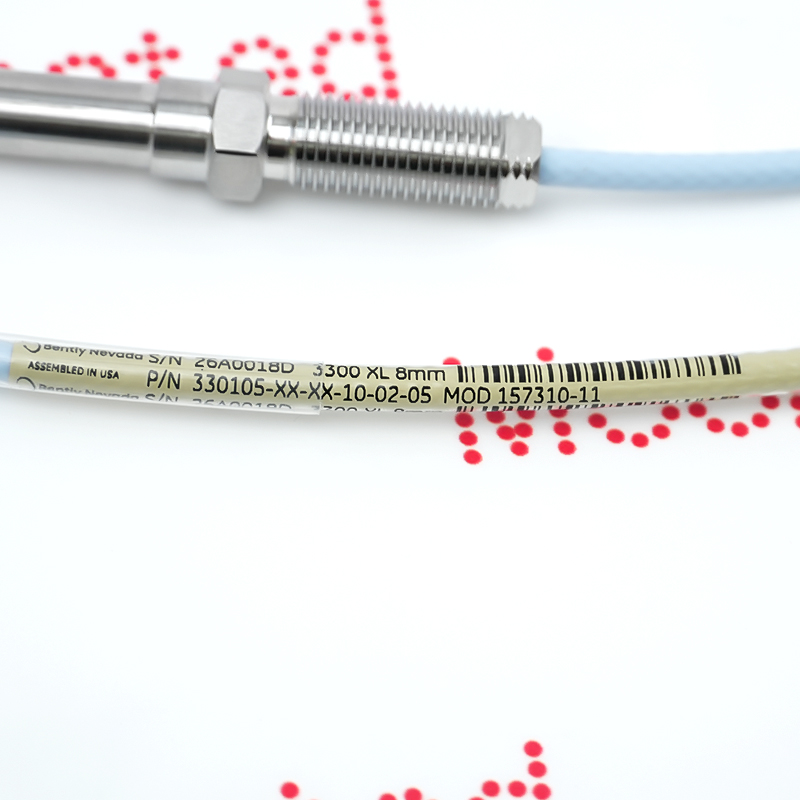

- Model: 330105-xx-xx-10-02-05 mod：157310-11
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3300 XL 8 mm Proximity Transducer System
3300 XL 8 mm Reverse Mount Probes
330105-02-12-Cxx-Dxx-Exx 3/8-24 UNF threads
Option Descriptions
C: Total Length
05: 0.5 meter (1.6 feet)
10: 1.0 meter (3.3 feet)
15: 1.5 meter (4.9 feet)
20: 2.0 meters (6.6 feet)
50: 5.0 meters (16.4 feet)
90: 9.0 meters (29.5 feet)
D: Connector and Cable-Type
02: Miniature ClickLoc coaxial connector
12: Miniature ClickLoc coaxial connector , FluidLoc cable
E: Agency Approval
00: Not required
05: CSA, ATEX, IECEx Approvals
1.ATEX/UKCA (Europe and UK): Complies with the stringent European Explosive Atmospheres Directive. When used in conjunction with intrinsically safe explosion-proof barriers, it is typically marked with symbols such as II 1 G Ex ia IIC T4/T5 Ga, suitable for Zone 0/1 applications.
2.IECEx (International Electrochemical Commission): Internationally certified by participating countries, conforming to Ex ia IIC T4/T5 Ga or Ex nA IIC T4/T5 Gc standards.
3.CSA/FM (North America): Approved for the Canadian and US markets, covering Groups A, B, C, and D of Class I 1 (intrinsically safe) and Groups A, B, C, and D of Class I 2 (non-flammable).
4.Regional Explosion-Proof Certification: Depending on the specific production batch and regional documentation, the -05 framework typically covers local regulations, such as NEPSI in China, KOSHA in South Korea, and INMETRO in Brazil.
5.CE Mark: Fully compliant with EU directives on health, safety, and environmental protection.
6.EMC Directive (2014/30/EU): Complies with industrial interference standards EN 61000-6-2 (Immunity) and EN 61000-6-4 (Radiation), ensuring the probe's 7.87 V/mm eddy current signal is not interfered with or damaged by nearby high-voltage equipment.
7.RoHS Directive: Manufactured in accordance with guidelines restricting hazardous substances and heavy metals.
8.ABS (American Bureau of Shipping): Certified to ABS steel ship specifications, allowing the probe to be used for mechanical protection on ships, tankers, and offshore platforms.
9.Pressure Seal Integrity: The probe body acts as a reliable pressure seal, isolating the high-pressure environment inside machine housings (e.g., compressor bearing housings) from the surrounding atmosphere.
10.ISO 9001: Manufactured at the Bently, Nevada plant according to stringent quality control design and manufacturing processes.
