      Bently Nevada 330130-030-00-00
      Bently Nevada 330130-030-00-00
      Bently Nevada 330130-030-00-00
      Bently Nevada 330130-030-00-00
      Bently Nevada 330130-030-00-00
      Bently Nevada 330130-030-00-00
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      330130-030-00-00

      3300 XL Standard Extension Cable
      In Stock
      Ships by Saturday, August 8
      Fast Shipping Available

      Product Information:

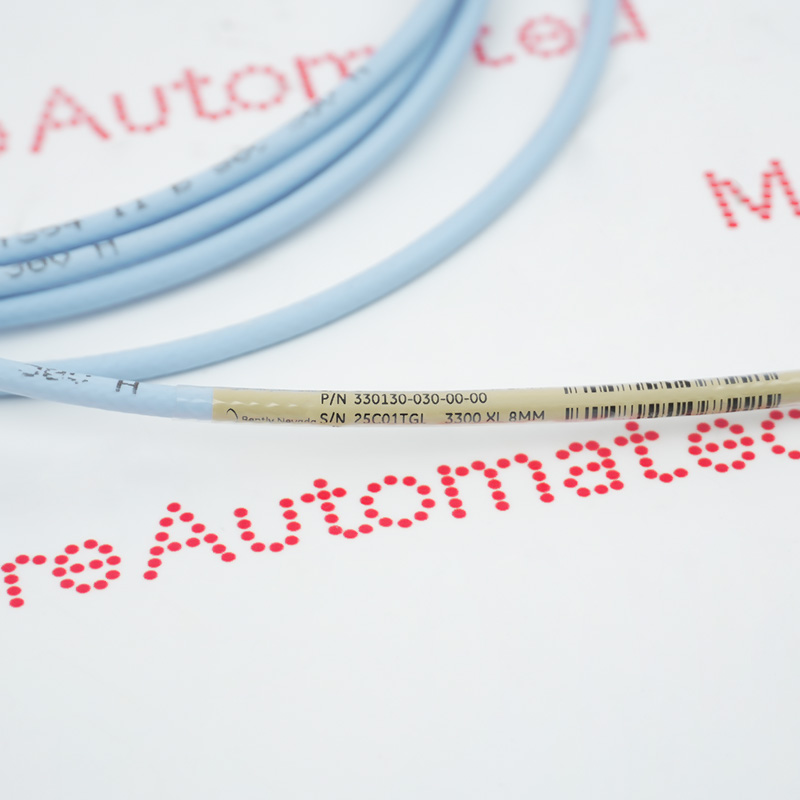

      The Bently Nevada 330130-030-00-00 is the standard extension cable for the 3300 XL series. It is a component used in the 3300 XL 8mm proximity sensor system to connect the proximity probe and the remote proximity sensor.

      This extension cable utilizes patented ClickLoc corrosion-resistant gold-plated connectors, ensuring stable signal transmission over a wide temperature range of -51°C to +177°C, even in harsh industrial environments. This guarantees the entire system can output high-precision static displacement and dynamic vibration voltage signals with an accuracy of up to 7.87 volts/mm (200 millivolts/mm).

      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 330130-030-00-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        TSI System
      • Estimated shipping dimensions:
        30 x 27 x 3 cm
      • Weight:
        0.034 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Cable Length:
        3.0 meters (9.8 feet)
      • Connector Protector and Cable:
        Standard cable
      • Agency Approval:
        Not required
      • Capacitance:
        69.9 pF/m (21.3 pF/ft)
      • Field Wiring:
        0.2 to 1.5 mm2 (16 to 24 AWG)
      • Material:
        75 Q triaxial, fluoroethylene propylene (FEP) insulated
      • Frequency Response:
        (0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring
      • Recommended Gap Setting for Radial Vibration:
        -9 Vdc [approximately 1.27 mm (50 mils)]
      • Operating and Storage Temperature:
        -52°C to +177°C (-62°F to +350°F)
      • Probe Relative Humidity:
        Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days
      • Product Type:
        Extension Cable
      • Category Series:
        3300 XL series 8mm
      • Stock:
        30
      Ask for Quote

      Alternative Names

      330130 030 00 00 330I30-030-00-00 33O13O-O3O-OO-OO 330130-030-00-05 330130-030-00-CN 330130-030-00-BR 330130-040-03-00 330130-030-10-CN 330130-035-00-00 330130-035-00-CN 330130-035-01-00 330130-040-00-05 330130-040-00-CN 330130-040-02-05 330130-030-00-RU

      Information

      Overview Manuals General Info Ordering Considerations

      Features:

      • 3300 XL Standard Extension Cable
      • 3300 XL 8 mm Proximity Transducer System
      • The 3300 XL probe and extension cable also reflect improvements over previous designs
      The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

      Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

      The 330130-030-00-00 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330130-030-00-00 3300 XL Standard Extension Cable Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330130-030-00-00
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3300 XL 8 mm Proximity Transducer System
      Ordering Information for Extension Cables
      3300 XL Standard Extension Cable
      330130-Axxx-Bxx-Cxx
      A: Cable Length
      030: 3.0 meters (9.8 feet)
      035: 3.5 meters (13.1 feet)
      040: 4.0 meters (11.5 feet)
      045: 4.5 meters (14.8 feet)
      060: 6.0 meters (19.7 feet)
      070: 7.0 meters (22.9 feet)
      075: 7.5 meters (24.6 feet)
      080: 8.0 meters (26.2 feet)
      085: 8.5 meters (27.9 feet)

      B: Connector Protector and Cable
      00: Standard cable
      01: Armored cable
      02: Standard cable with connector protector
      03: Armored cable with connector protector
      10: FluidLoc cable
      11: Armored FluidLoc cable
      12: FluidLoc cable with connector protector
      13: Armored FluidLoc cable with connector protector

      C: Agency Approval
      00: Not required
      05: CSA, ATEX, IECEx Approvals

      Manuals

      Technical notes

      The Bently Nevada 330130-030-00-00 is the core connector for the Bently Nevada 3300 XL 8mm eddy current sensor system and the standard extension cable for the 3300 XL. This extension cable is specifically designed for connecting 8mm probes and the Proximitor preamplifier. It features a high-quality 75-ohm triaxial construction and uses chemically resistant fluorinated ethylene propylene copolymer (FEP) insulation. Typical capacitance is 69.9 pF/m. In its specifications, 330130 represents the standard extension cable model; -030 indicates a physical cable length of 3.0 meters (approximately 9.8 feet), typically used with 2.0-meter probes to form an industry-standard 5-meter total power supply system; -00 indicates the use of a standard unarmored cable without a connector sheath. The -00... at the end indicates that no agency-specific explosion-proof certification is required.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How does the 330130-030-00-00 maintain signal integrity and measurement accuracy in Bently Nevada proximity sensor systems with its 30-meter extension cable configuration?
        The 330130-030-00-00 is designed to provide a stable electrical connection between the proximity probe and the Proximitor® sensor, maintaining signal quality over its 30-meter cable length.
      • What are the key technical specifications of the 330130-030-00-00, including its 30-meter cable length, system compatibility, conductor characteristics, and impedance requirements?
        The 330130-030-00-00 comes with a 30-meter factory-calibrated extension cable, carefully designed to meet the electrical characteristics required by compatible Bently Nevada eddy current sensor systems.
      • Why is the 330130-030-00-00 considered a key component for maintaining calibration accuracy in the 3300 XL 8 mm vibration monitoring system?
        The 330130-030-00-00 is part of the calibration sensor chain, ensuring the accuracy of displacement and vibration measurements throughout the monitoring system.
      • How does the 330130-030-00-00 contribute to high-resolution shaft vibration and rotor position monitoring by maintaining calibrated electrical characteristics?
        The 330130-030-00-00 ensures the entire sensor system operates within its specified calibration tolerances, supporting high-precision mechanical diagnostics.
      • Why is the 330130-030-00-00 particularly suitable for protection systems of rotating machinery such as turbines, compressors, generators, and centrifugal pumps?
        The 330130-030-00-00 combines industrial-grade durability with calibrated electrical performance, making it ideal for critical rotating equipment monitoring applications.
