Features:
- 3300 XL Standard Extension Cable
- 3300 XL 8 mm Proximity Transducer System
- The 3300 XL probe and extension cable also reflect improvements over previous designs
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 330130-045-00-05 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-045-00-05 3300 XL Standard Extension Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

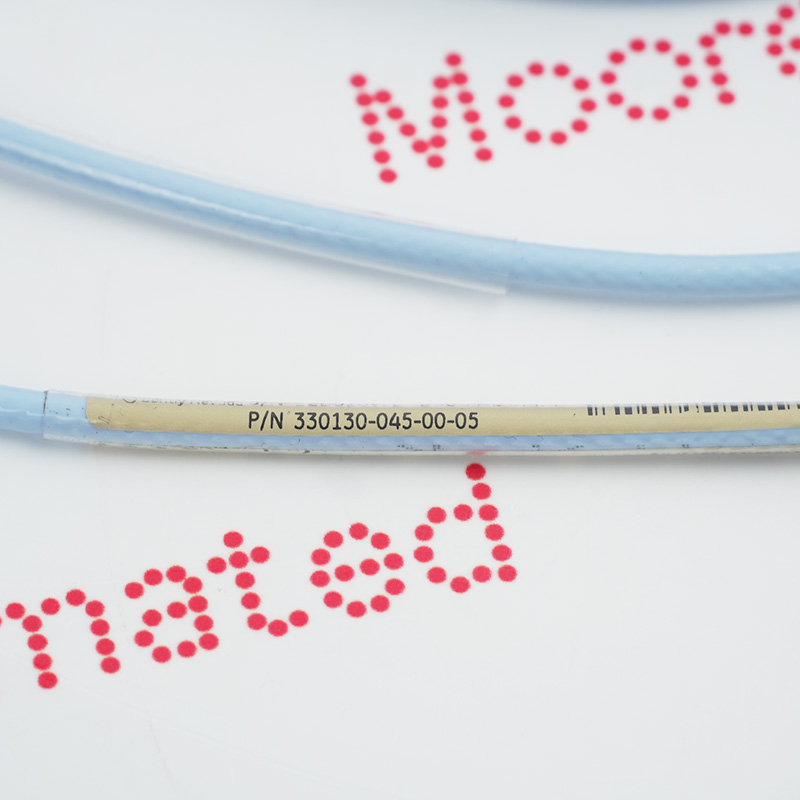

- Model: 330130-045-00-05
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 3300 XL 8 mm Proximity Transducer System
Ordering Information for Extension Cables
3300 XL Standard Extension Cable
330130-Axxx-Bxx-Cxx
A: Cable Length
030: 3.0 meters (9.8 feet)
035: 3.5 meters (13.1 feet)
040: 4.0 meters (11.5 feet)
045: 4.5 meters (14.8 feet)
060: 6.0 meters (19.7 feet)
070: 7.0 meters (22.9 feet)
075: 7.5 meters (24.6 feet)
080: 8.0 meters (26.2 feet)
085: 8.5 meters (27.9 feet)
B: Connector Protector and Cable
00: Standard cable
01: Armored cable
02: Standard cable with connector protector
03: Armored cable with connector protector
10: FluidLoc cable
11: Armored FluidLoc cable
12: FluidLoc cable with connector protector
13: Armored FluidLoc cable with connector protector
C: Agency Approval
00: Not required
05: CSA, ATEX, IECEx Approvals
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
1. Vibration and Position Monitoring: Used in mechanical equipment equipped with hydrodynamic bearings to measure dynamic vibration and static axial position.
2. Velocity and Reference Measurement: Suitable for measuring critical phasor signals and velocity in critical equipment such as turbines and compressors.
3. API 670 Compliant: Commonly used in the oil and gas industry because it supports systems compliant with the American Petroleum Institute (API) 670 mechanical protection standard.
