The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

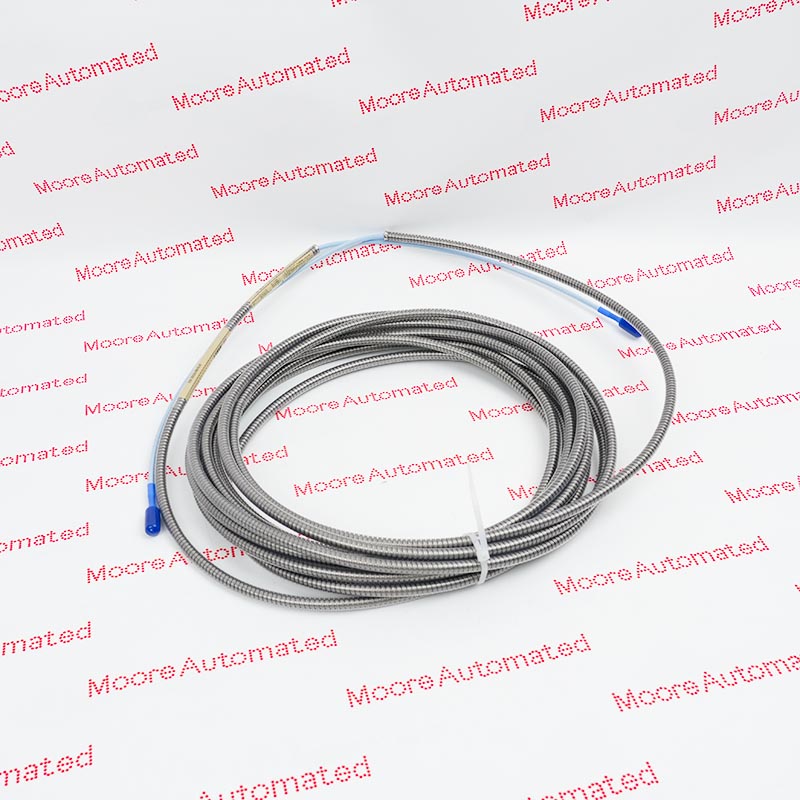

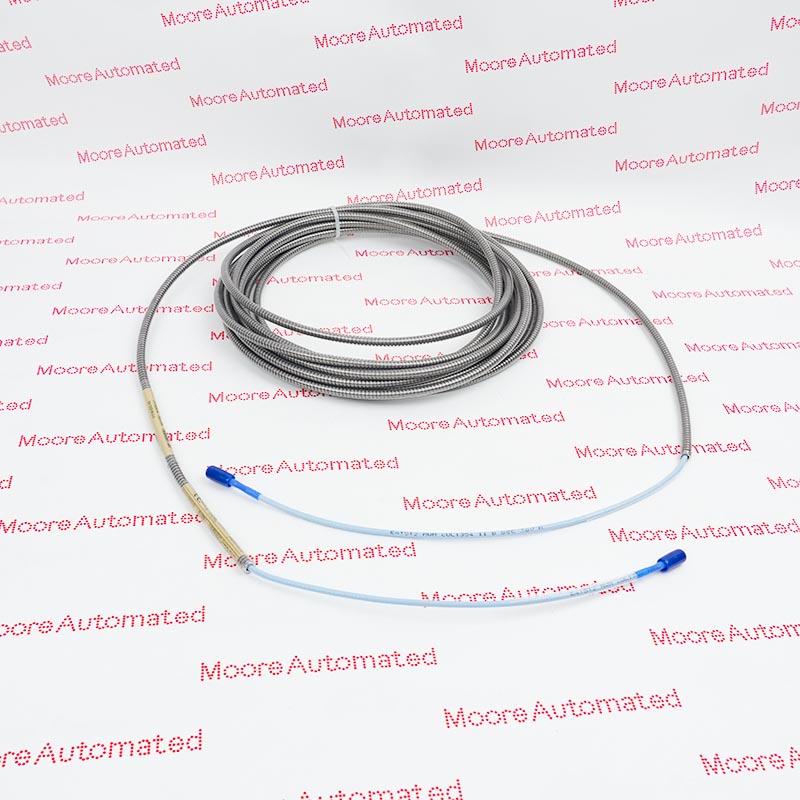

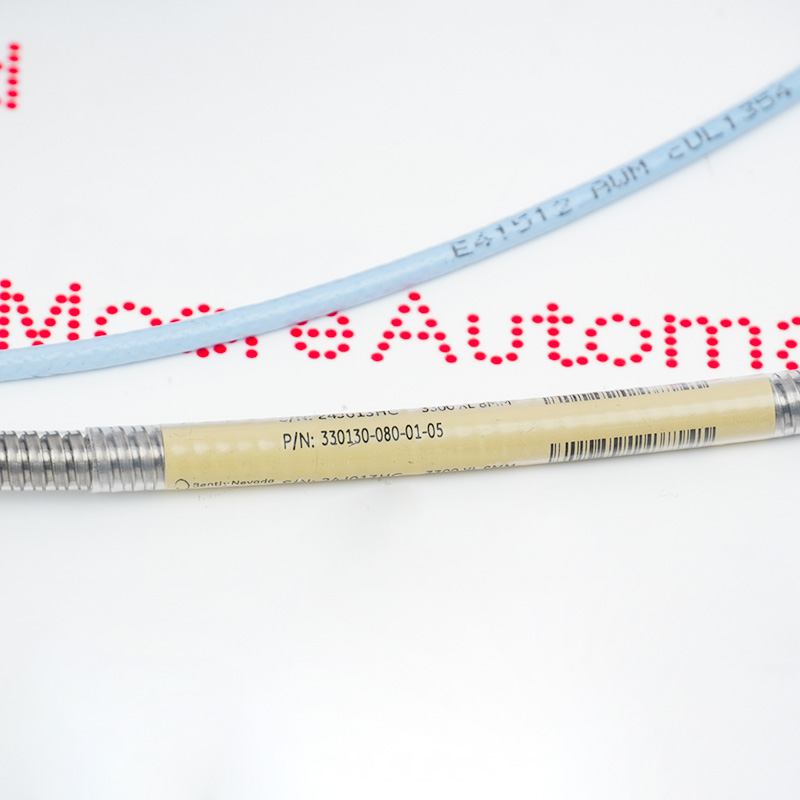

The 330130-080-01-05 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-080-01-05 3300 XL Standard Extension Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
This cable can be used to measure vibration and position in critical industrial equipment:
Vibration and Position Monitoring: Primarily used in hydrodynamic bearing machinery (e.g., turbines, compressors, and pumps) to measure radial vibration and axial (thrust) position.
Velocity and Phase Reference: As a link to the Keyphasor® signal, it provides timing with one pulse per revolution for velocity and phase tracking.
Harsh Mechanical Environments: The integrated armor (Option 01) acts as a flexible conduit, protecting the internal cable from crushing, abrasion, and sharp bends on high-flow or exposed machine platforms.
Hazardous Area Operations: Multiple certifications (Option 05), including ATEX, IECEx, and CSA, make it suitable for intrinsically safe and explosion-proof environments such as offshore oil platforms and chemical plants.
