Features:
- PROXPAC XL Proximity Transducer
- Similar to our 31000/32000 Proximity Probe Housing Assemblies
- Made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic
The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.
This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.

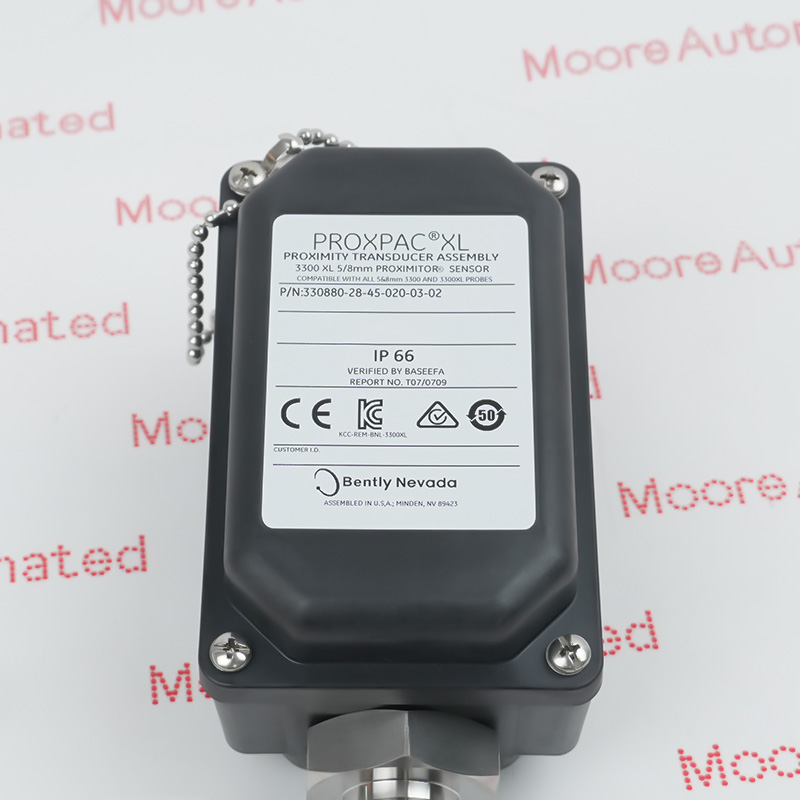

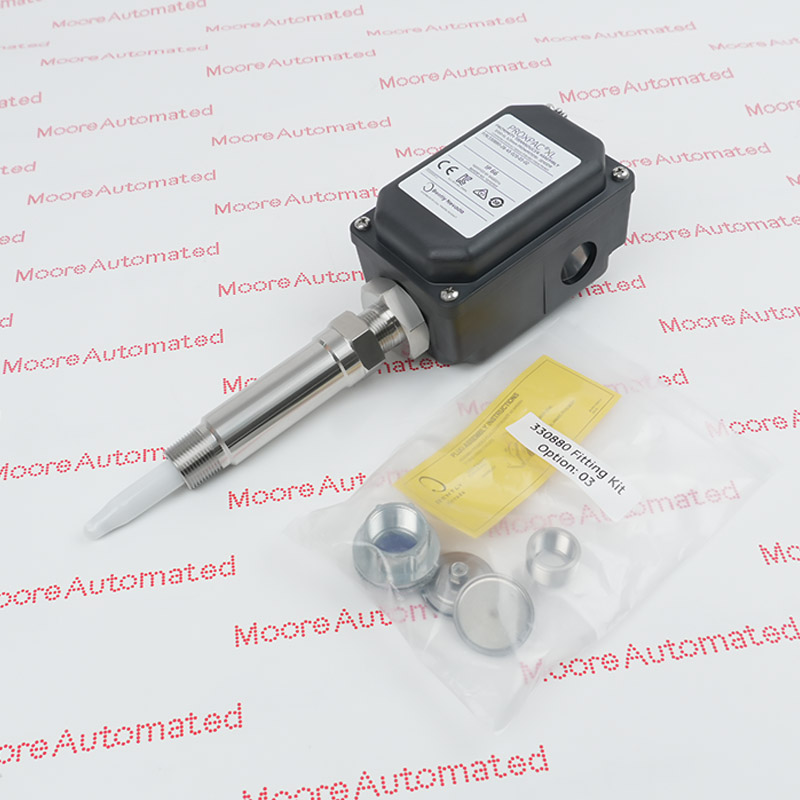

The 330880-28-45-020-03-02 Bently Nevada PROXPAC XL Proximity Transducer may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330880-28-45-020-03-02 PROXPAC XL Proximity Transducer Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PROXPAC XL proximity sensor assembly works by integrating a proximity probe and the 3300 XL Proximitor sensor into a single housing, forming a complete eddy current displacement measurement system. When the proximity probe approaches a metallic target, it generates a high-frequency electromagnetic field and eddy currents on the target's surface. Changes in the distance between the target and the probe cause changes in the eddy current intensity, thereby altering the impedance of the probe coil. The built-in Proximitor sensor processes and converts this impedance change, outputting a voltage signal proportional to the distance or vibration. This signal is then transmitted directly to the monitoring system via field wiring.
- Shaft Vibration and Position Measurement: Non-contact measurement of radial vibration and axial (thrust) position of shafts in critical rotating machinery such as turbines, compressors, and pumps.
- Hazardous and Harsh Environments: The Model 28 is certified for multiple hazardous areas, and its IP66-rated housing (made of polyphenylene sulfide) can withstand harsh chemical and climatic conditions in outdoor or marine environments.
- Simplified Field Wiring: Because the proximity sensor is integrated into the housing, there is no need for separate extension cables and external proximity sensor housings, making it ideal for installation environments with limited junction box space.
PROXPAC XL Proximity Transducer
330880-Axx-Bxx-Cxxx-Dxx-Exx
A: Probe and Approvals
0 0: No probe; Proximitor sensor without approvals
0 1: No probe; Proximitor sensor with Multiple Approvals
1 6: 3300 XL 8 mm probe without approvals
2 8: 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter (B Dimension)
Order in increments of 0.5 in (13 mm).
Minimum length: 1.5 in (38 mm)
Maximum length: 7.5 in (191 mm )
Examples:
0 0: No standoff adapter
1 5: 1.5 in (38 mm)
C: Probe Penetration (C Dimension)
For penetration lengths between 1.0 and 2.0 inches, counterbore may be required in machine case to reduce probe side view and/or rear view effects.
Order in increments of 0.1 in (2 mm).
Minimum length: 1.0 in (25 mm)
Maximum length: 30 in (762 mm )
Examples:
0 0: 0 No probe sleeve
0 3 7: 3.7 in (94 mm)
D: Fittings
0 0: No fittings; two plugs and two washers
0 1: One 3/4-14 NPT fitting, two plugs
0 2: Two 3/4-14 NPT fittings, one plug
0 3: One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs
E: Mounting Thread
0 0: No outer sleeve assembly
0 2: 3/4-14 NPT (Required if ordering Standoff Adapter Option.)
0 5: 7/8-14 UNF-2A
