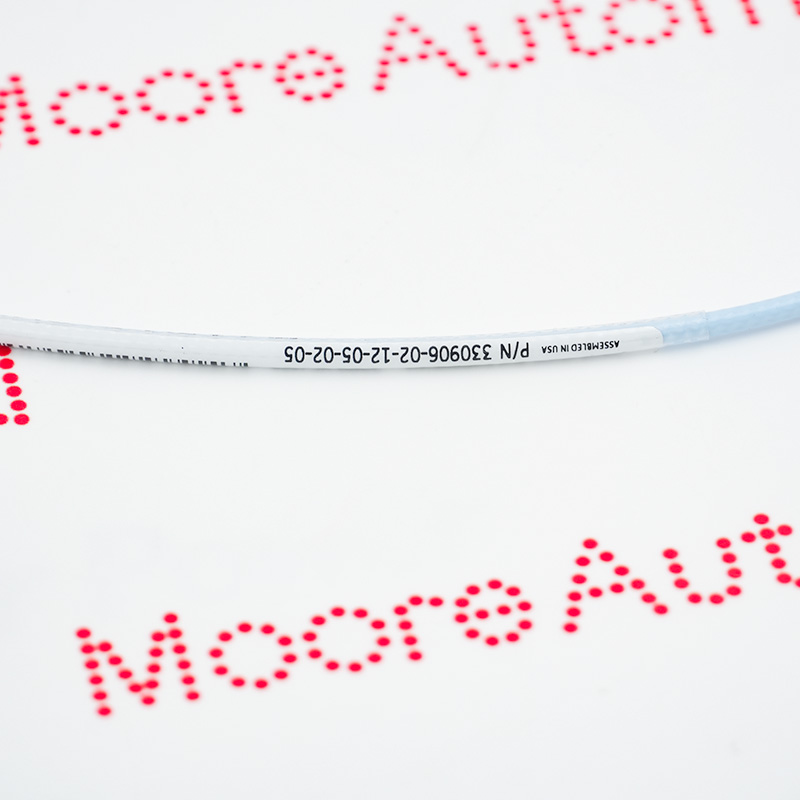

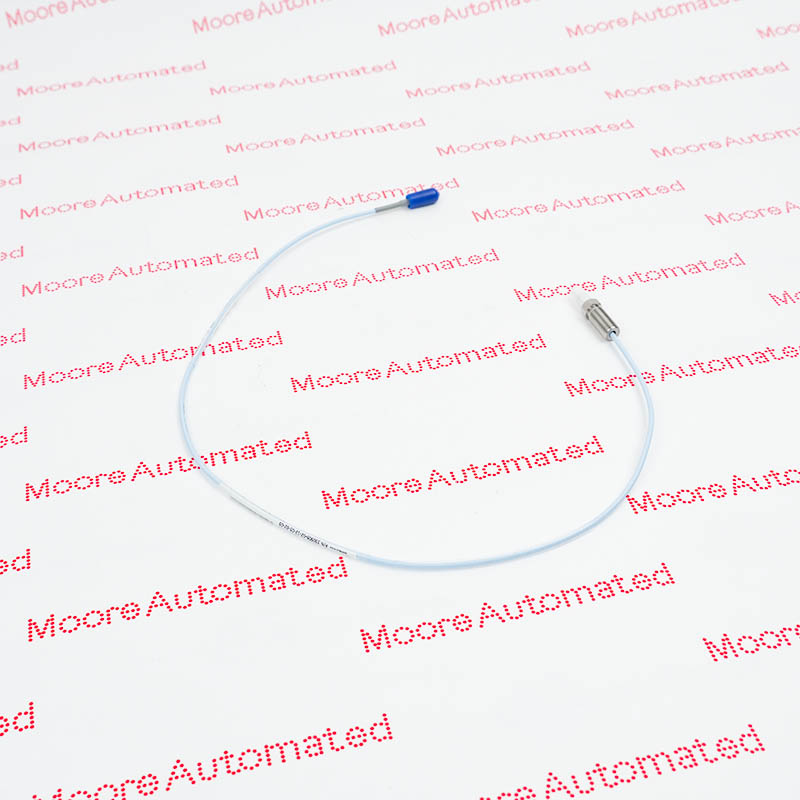

- 3300 NSv Reverse Mount Probe
- 330906-02-12 3/8-24 UNF threads
- 3300 XL NSv Proximity Transducer System
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
The 330906-02-12-05-02-05 Bently Nevada 3300 NSv Reverse Mount Probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330906-02-12-05-02-05 3300 NSv Reverse Mount Probe Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv sensor system has an average scale factor of 7.87 V/mm (200 mV/mil), which is the most commonly used output value for eddy current sensors. Its enhanced side-view and small-target characteristics result in a shorter linear range than the Bently Nevada 3300 XL series 5 mm and 8 mm sensor systems. Its 1.5 mm (60 mil) linear range surpasses that of the 3000 series 190 sensor system.
This probe is primarily used for vibration and position monitoring in compact, high-speed machinery:
Centrifugal Air Compressors: This is the most common application. It is designed specifically for the confined internal space of small to medium-sized centrifugal compressors.
Small Target Shafts: Suitable for shafts with diameters less than 51 mm (2.0 inches), where standard probes suffer from "side-view" interference due to shaft curvature.
Axial Position Monitoring: Ideal for measuring the thrust position of planar targets as small as 15 mm (0.6 inches).
Hydrodynamic Bearing Machinery: Used in small pumps, motors, and aerospace-derived turbines where conventional 8 mm probes are too bulky and difficult to install.
