Features:
- Power Supply Module for the documented Bently Nevada 3500 Machinery Protection System.
- Input Voltage: 110 to 220 Vac nominal.
- Input Frequency: 47 to 63 Hz.

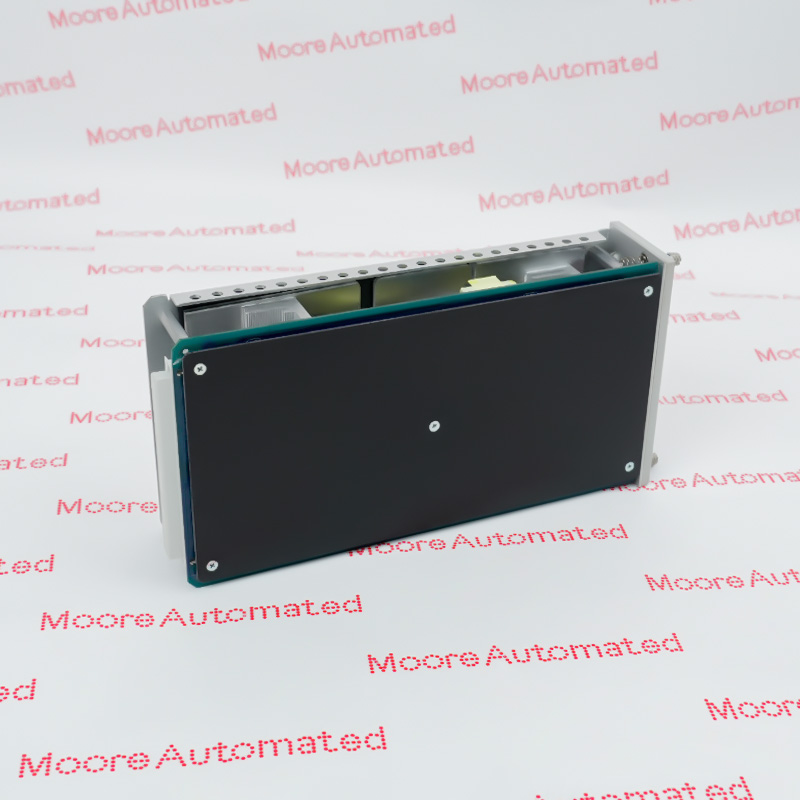

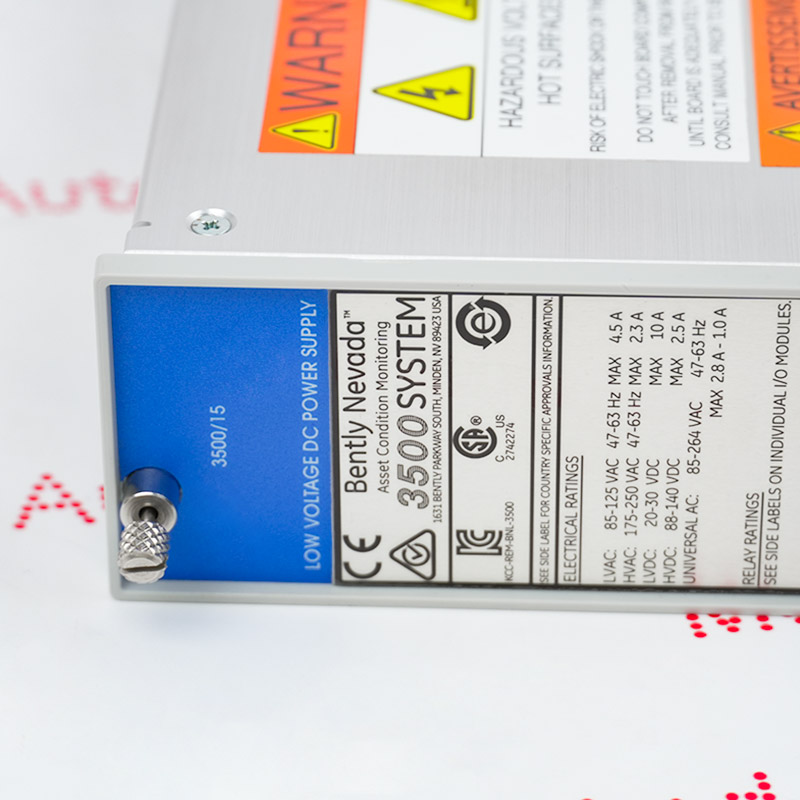

3500/15 114M5330-01 belongs to the Bently Nevada 3500 Machinery Protection System and performs the documented power supply module role in the Bently Nevada 3500 machinery protection architecture. The retained technical evidence records Input Voltage: 110 to 220 Vac nominal; Input Frequency: 47 to 63 Hz; Universal voltage AC: 2.8 A rms (maximum). The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Bently Nevada 3500 Machinery Protection System receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The 3500/15 114M5330-01 Power Supply Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Bently Nevada 3500/15 114M5330-01 Power Supply Module Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Supply Review: 3500/15 114M5330-01 performs the power supply module function within the Bently Nevada 3500 Machinery Protection System. The retained documentation identifies input voltage as 110 to 220 Vac nominal; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
System Match: approve 3500/15 114M5330-01 only for the documented Bently Nevada 3500 machinery protection architecture. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Commissioning: isolate the equipment, remove stored energy and inspect the receiving hardware before installing 3500/15 114M5330-01.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
