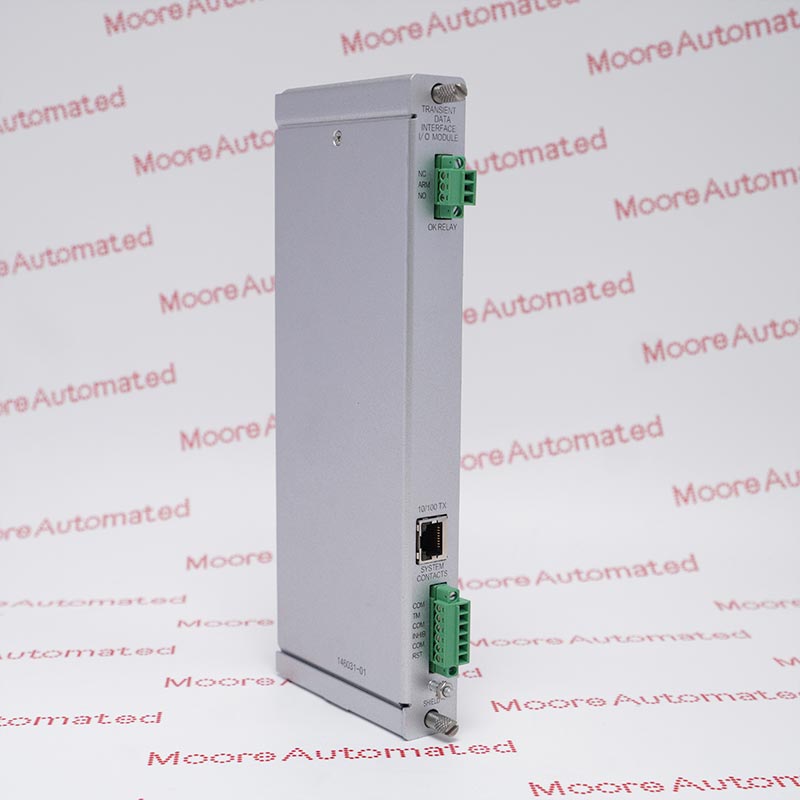

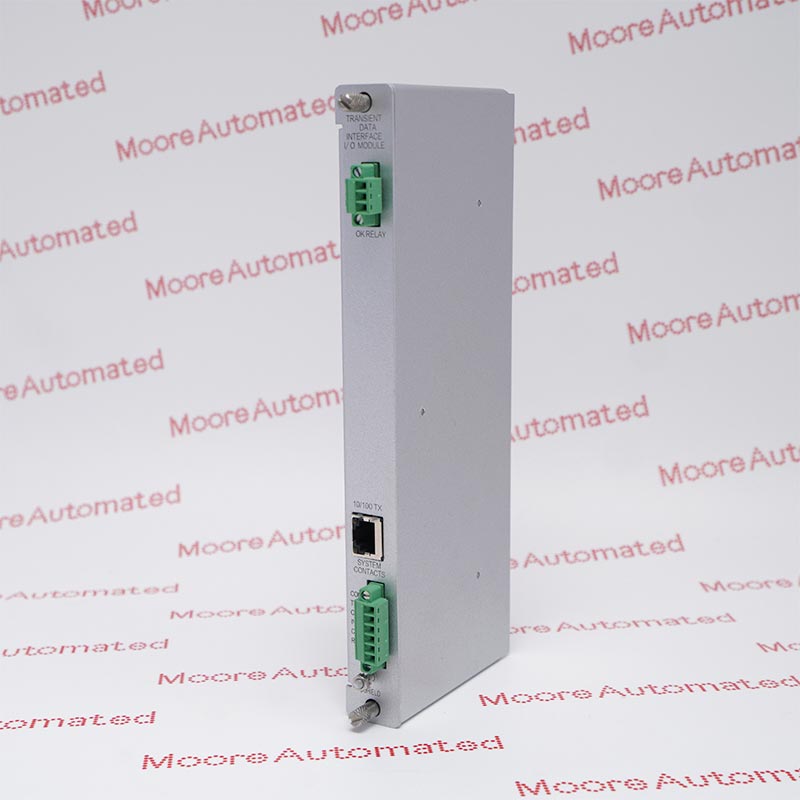

      Bently Nevada 146031-01
      Bently Nevada 146031-01
      Bently Nevada 146031-01
      Bently Nevada 146031-01
      Bently Nevada 146031-01
      Bently Nevada 146031-01

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available
      10Base-T/100Base-TX Ethernet I/O module

      146031-01

      Product Information:

      Bently Nevada 146031-01 is the copper Ethernet rear I/O module used with the 3500/22M Transient Data Interface. It provides an autosensing 10Base-T/100Base-TX RJ-45 connection for BN Host and BN TDI protocols over TCP/IP, with a maximum documented copper cable length of 100 m. The module also carries rack system contacts, the OK relay, and the signal-common grounding terminal.
      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          Bently Nevada 146031-01 is the copper Ethernet rear I/O module used with the 3500/22M Transient Data Interface in a 3500 machinery-protection rack. It provides an autosensing 10Base-T/100Base-TX connection through an RJ-45 connector and carries BN Host and BN TDI protocols over TCP/IP. Bently Nevada specifies IEEE 802.3 Ethernet operation and a maximum copper cable length of 100 m. In addition to network access, the rear module provides terminals for Trip Multiply, Alarm Inhibit and Rack Reset dry-contact inputs, the TDI OK relay, and the signal-common grounding connection. It occupies one full-height rear slot behind the associated TDI in rack slot 1. A correct replacement therefore requires the 146031-01 rear-module identity, installed 3500/22M TDI, RJ-45 network, rack-contact wiring, OK-relay selection and grounding arrangement to be checked together.

          Source boundary

          Official source: Bently Nevada 3500/22M Transient Data Interface Datasheet, document 161581. Part number 146031-01 identifies the rear 10Base-T/100Base-TX I/O module and does not by itself identify the TDI front module.
        • APPLICATIONS

          Where it may be used

          Use this rear I/O module only with the documented 3500/22M TDI configuration after confirming rack position, network medium, contact wiring and grounding.

          Copper TDI networking

          Connects the 3500/22M TDI to a 10/100 Ethernet network through the documented RJ-45 port.

          Host software link

          Carries BN Host and BN TDI protocols over TCP/IP within the specified 100 m cable limit.

          Rack contact access

          Provides Trip Multiply, Alarm Inhibit and Rack Reset dry-contact terminals for the installed rack.

          RIM-to-TDI upgrade

          Supports a documented TDI installation when network, relay, grounding and rack wiring are verified.
      Technical specifications for

      146031-01

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Product Type:
        10Base-T/100Base-TX Ethernet I/O module
      • Compatible Main Module:
        3500/22M Transient Data Interface
      • Ethernet Media:
        Copper twisted-pair
      • Ethernet Rates:
        10Base-T and 100Base-TX, autosensing
      • Ethernet Standard:
        IEEE 802.3
      • Network Protocols:
        BN Host and BN TDI over TCP/IP
      • Network Connector:
        RJ-45
      • Maximum Cable Length:
        100 m (328 ft)
      • System Contacts:
        Trip Multiply, Alarm Inhibit, and Rack Reset
      • Contact Input Rating:
        Dry contact to common; less than 1 mA DC
      • Signal Common:
        Two-pin connector for signal-common connection to instrument ground
      • OK Relay:
        Normally energized; software-selectable open or closed operation
      • Arc Protection:
        Arc suppressors are provided
      • Operating Temperature:
        -30 to +65 °C (-22 to +149 °F)
      • Storage Temperature:
        -40 to +85 °C (-40 to +185 °F)
      • Relative Humidity:
        95%, non-condensing
      • Rack Space:
        One full-height rear slot
      • Stock Availability:
        4
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      146031 01 3500/22M 146031-01 3500/22-01-01-00 3500/22-01-01-01 3500/22-01-01-02 3500/22-01-02-00

      Information

      Overview Manuals Ethernet Interface Rack Integration Contact Wiring

      Features:

      • Provides an autosensing 10Base-T/100Base-TX copper Ethernet interface through an RJ-45 connector for the documented rear-module position.
      • Supports BN Host and BN TDI protocols over TCP/IP with IEEE 802.3 operation and a maximum specified network-cable length of 100 m.
      • Integrates rack-system contacts, a selectable TDI OK-relay connection and a signal-common grounding terminal for the 3500/22M rear I/O position.
      Bently Nevada 146031-01 3500/22M Ethernet I/O module manual / Datasheet / Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      The 146031-01 rear I/O module provides one autosensing copper Ethernet connection for the associated 3500/22M TDI. The documented interface supports 10Base-T and 100Base-TX in accordance with IEEE 802.3, using an RJ-45 connector and BN Host or BN TDI protocols over TCP/IP. Keep the installed copper run within the specified 100 m maximum and verify the host-network addressing and rack configuration before service.

      Install 146031-01 in the full-height rear slot associated with the 3500/22M TDI in rack slot 1. The rear I/O part number must be matched separately from the front TDI part number. During replacement, verify the rear connector seating, TDI compatibility, rack power isolation and ESD controls before restoring the rack to operation.

      Before transferring wiring, document the RJ-45 network cable, Trip Multiply, Alarm Inhibit and Rack Reset dry-contact terminals, TDI OK-relay conductors and the two-pin signal-common grounding connection. The contact inputs are dry contacts to common with less than 1 mA DC. Restore each conductor to the recorded terminal and confirm relay and grounding behavior after installation.

      Technical notes

      Bently Nevada 146031-01 is the copper Ethernet rear I/O module specified for the 3500/22M Transient Data Interface. It provides autosensing 10Base-T/100Base-TX communication through an RJ-45 connector using BN Host and BN TDI protocols over TCP/IP, with a documented maximum cable length of 100 m. The module also exposes Trip Multiply, Alarm Inhibit, and Rack Reset dry-contact inputs, an OK-relay interface, and the signal-common grounding connection. Confirm the associated TDI, rear-slot position, network wiring, rack-contact wiring, relay behavior, and grounding before replacement. Environmental limits in Bently Nevada document 161581 are -30 to +65 °C operating, -40 to +85 °C storage, and 95% non-condensing humidity.

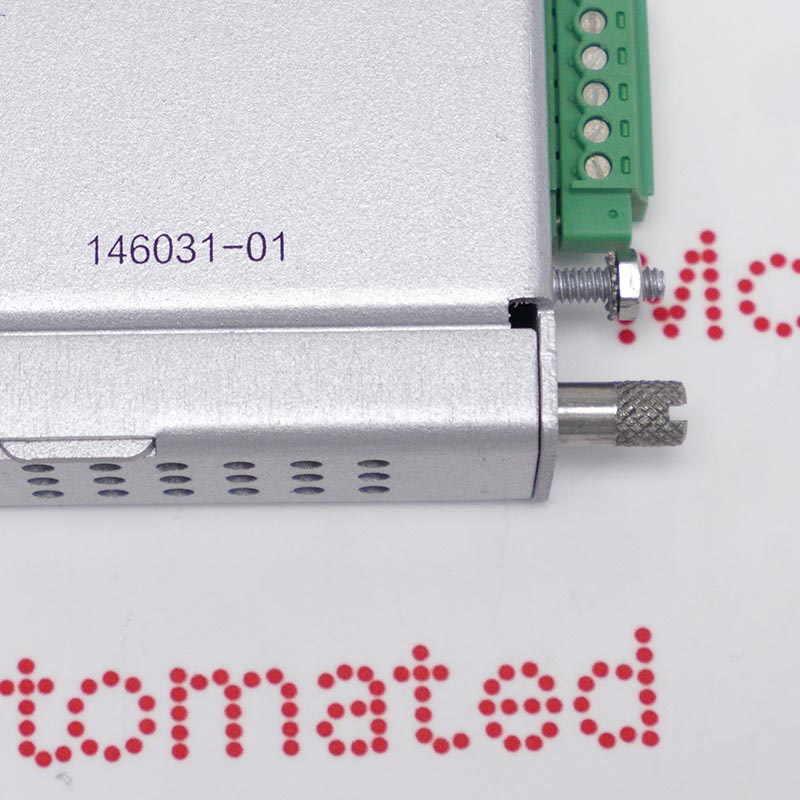

      Rear Module Identity Review

      Confirm the complete rear-module marking 146031-01 and identify the associated 3500/22M TDI front module separately. Record the rack serial number, slot-1 front and rear labels, RJ-45 connector arrangement, rack-contact terminal wiring, OK-relay selection and signal-common connection. If any marking or module position is uncertain, provide clear nameplate and installed-rack photographs before a replacement is matched.

      Quotation Data for 146031-01

      For an accurate quotation, provide the required quantity, complete 146031-01 identification, clear front and rear label photographs, the paired 3500/22M TDI part number, rack model, installed network medium, required accessories, receiving country and requested delivery date. Moore Automated will use these details to confirm the exact supplied scope, item condition, availability, warranty and shipping terms in writing.

      Customs & shipping dimensions / weight

      • Packed shipping dimensions
        Confirmed after final packing
        Product dimensions: 24.13 x 2.44 x 9.91 cm
      • Packed shipping weight
        Confirmed after final packing
        Net product weight: 0.20 kg (Bently Nevada datasheet)
      • HS / customs code
        To be confirmed for the destination
        Confirm the destination-country classification before shipment.
      • Country of origin
        To be verified from the supplied unit
        Confirm from the module label or certificate of origin.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 146031-01

      • How can 146031-01 be distinguished from the 3500/22M TDI front module?

        Bently Nevada 146031-01 is the rear 10Base-T/100Base-TX I/O module, not the front 3500/22M Transient Data Interface. Confirm the rear-module label, the matching TDI front-module part number, connector type, and rack configuration before purchase.

      • Which rack module is intended to operate with 146031-01?

        The 146031-01 rear I/O module is documented for the 3500/22M Transient Data Interface. It occupies the rear position associated with the TDI in rack slot 1; compatibility must be checked against the installed TDI and rack configuration.

      • What Ethernet connection does 146031-01 provide?

        It provides an autosensing copper 10Base-T/100Base-TX Ethernet interface through an RJ-45 connector. Bently Nevada specifies IEEE 802.3 operation, BN Host and BN TDI protocols over TCP/IP, and a maximum documented cable length of 100 m.

      • Which rack control contacts are available on this I/O module?

        The module provides Trip Multiply, Alarm Inhibit, and Rack Reset contacts. These are dry-contact inputs to common with less than 1 mA DC current; the installed rack logic and wiring must be reviewed before reconnection.

      • What should be checked before installing or replacing 146031-01?

        Verify the 146031-01 nameplate, associated 3500/22M TDI, rear-slot position, RJ-45 network connection, system-contact wiring, OK-relay selection, and signal-common grounding. Follow the 3500 rack maintenance and ESD procedures before removing or inserting hardware.

      • How is available stock for Bently Nevada 146031-01 confirmed?

        Moore Automated verifies the exact 146031-01 rear I/O module against current inventory. Send the required quantity plus clear front and rear label photographs so the supplied module and its connector arrangement can be confirmed.

      • What warranty is supplied with a quoted 146031-01 module?

        Moore Automated provides a one-year independent-supplier warranty for the exact Bently Nevada 146031-01 item and condition stated in the written quotation. Warranty coverage and return terms are confirmed before payment.

      • How is 146031-01 prepared for international shipment?

        The listed handling time is three days after exact-item confirmation. Dispatch is from Xiamen, Fujian, China; final packing dimensions, weight, customs documents, carrier, and transit time are confirmed for the destination in writing.
