Features:
- DeviceNet Master Module for the documented GE Fanuc Series 90-30.
- Compatibility: Series 90-30, PACSystems RX3i.
- Communication ports: One (1) DeviceNet terminal; One (1) Service port.

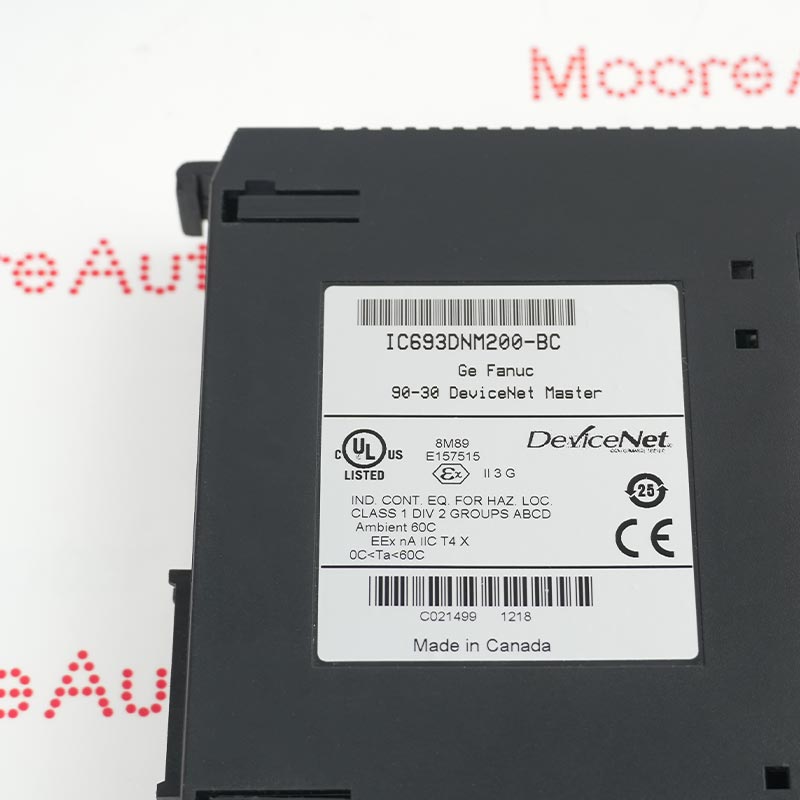

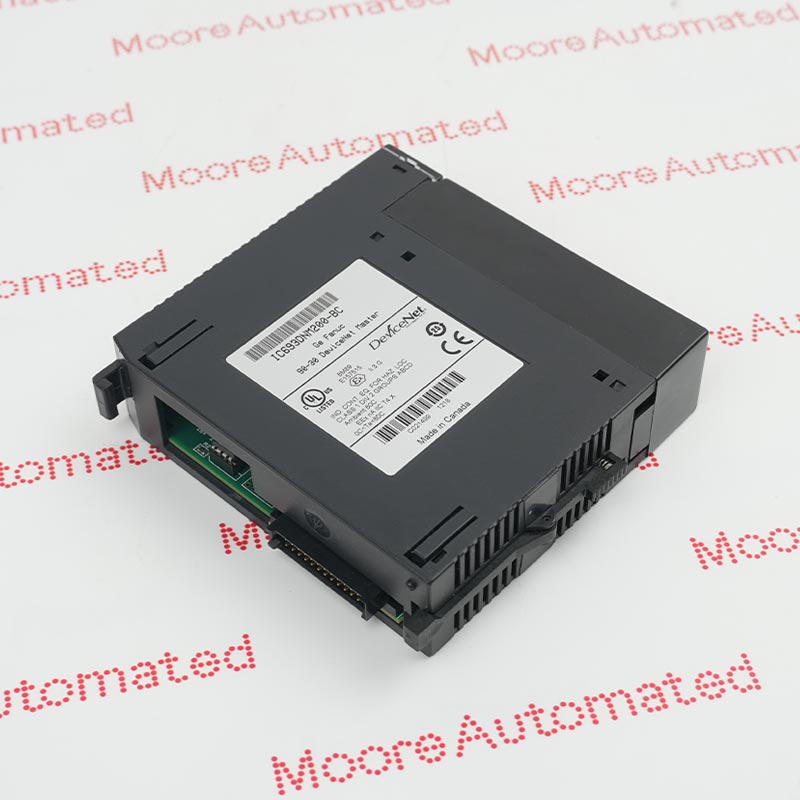

IC693DNM200-BC belongs to the GE Fanuc Series 90-30 and performs the documented devicenet master module role in the GE Fanuc Series 90-30 PLC architecture. The retained technical evidence records Compatibility: Series 90-30, PACSystems RX3i; Communication ports: One (1) DeviceNet terminal; One (1) Service port; Communication speed: 125K, 250K and 500K. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the GE Fanuc Series 90-30 receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The IC693DNM200-BC DeviceNet Master Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
GE IC693DNM200-BC DeviceNet Master Module Manual(Datasheets), Link
Important Notice: The linked PDF documents the listed model. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Board Interface: IC693DNM200-BC performs the devicenet master module function within the GE Fanuc Series 90-30. The retained documentation identifies compatibility as Series 90-30, PACSystems RX3i; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Integration Fit: approve IC693DNM200-BC only for the documented GE Fanuc Series 90-30 PLC architecture. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Service Checks: isolate the equipment, remove stored energy and inspect the receiving hardware before installing IC693DNM200-BC.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
