Features:
- Power Supply Unit 24/5 V DC, 16 A
- Tolerates a wide DC operational window from 20V DC to 32V DC (nominally rated at 24V DC)
- The module actively splits and outputs 5.0V DC at up to 16 Amps across two paths

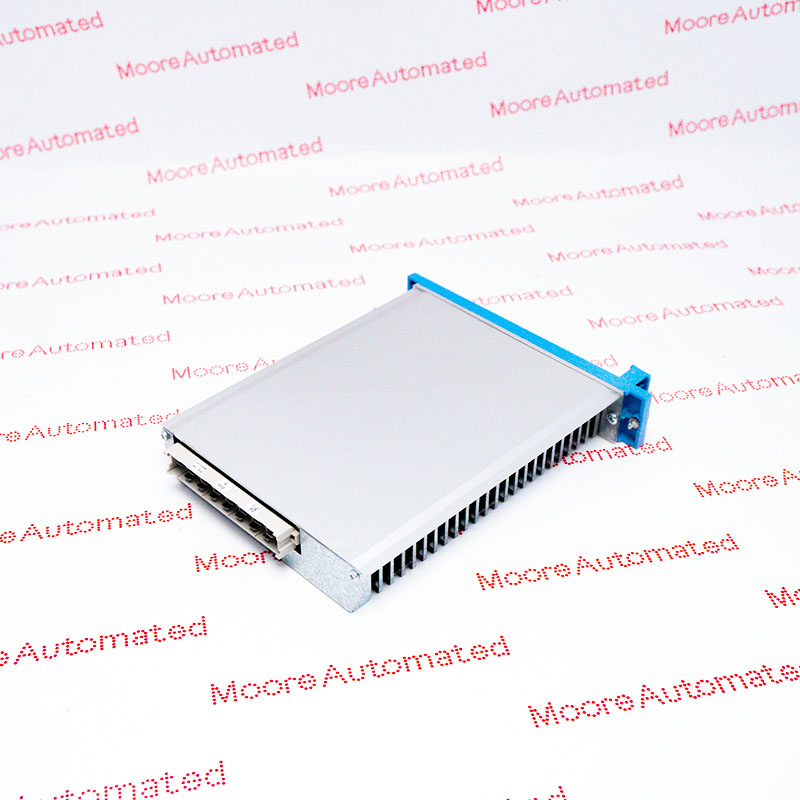

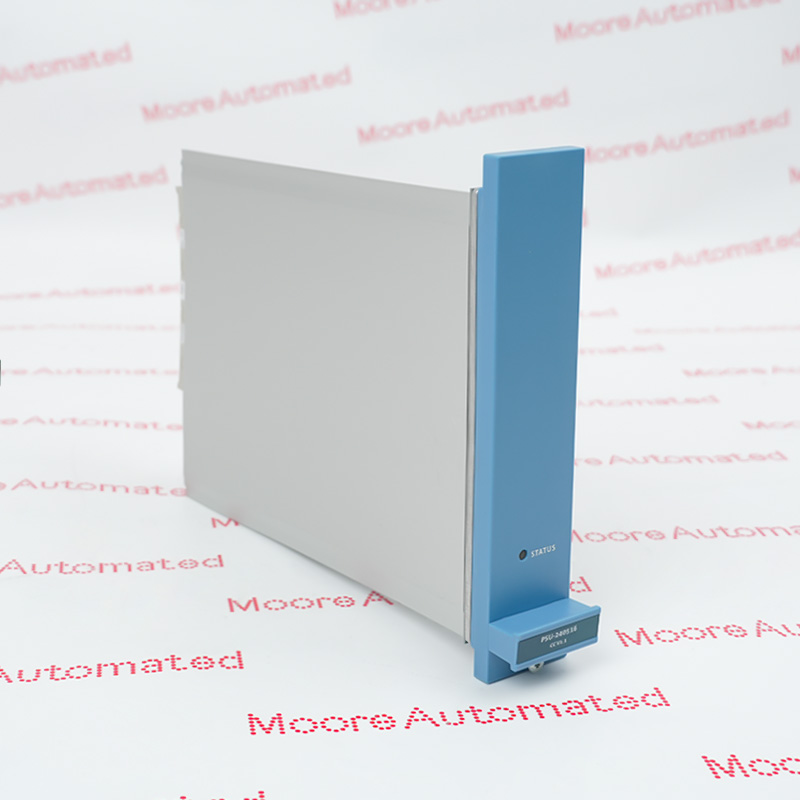

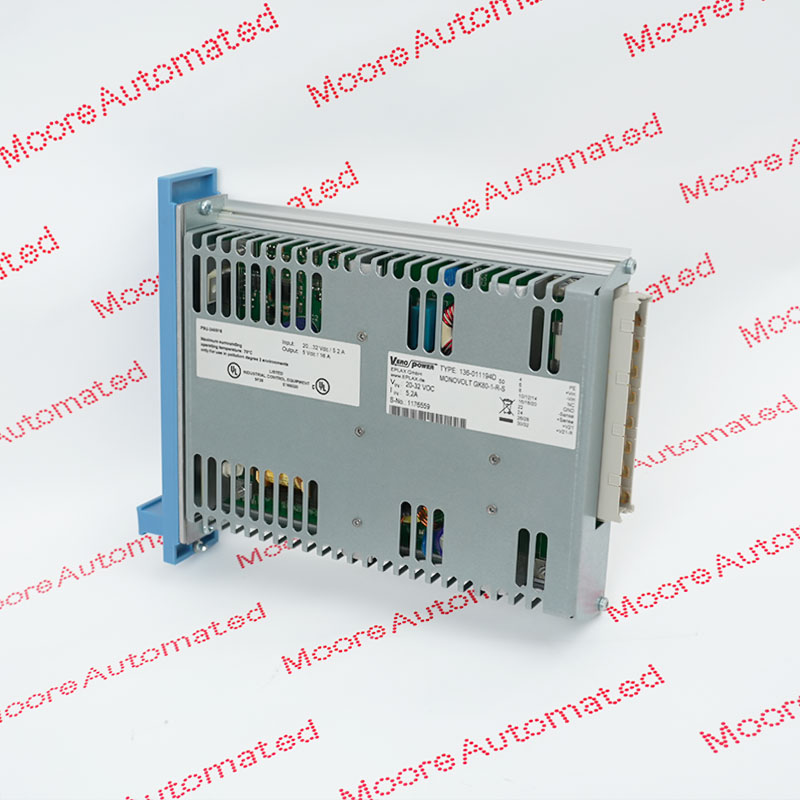

The PSU-240516 power supply unit converts incoming 24 V DC to (local) 5 V DC and (redundant) 5 V DC, and is located in the Controller chassis. The (local) 5 V DC output (5V1 resp. 5V2) supplies 5 V to its Control Processor and the redundant IO modules of its Control Processor. The (redundant) 5 V DC output (5VR) shares the 5 V load of the nonredundant IO modules with the PSU-240516 of the other Control Processor.
All 5 V supply signals are available on the WdPx connectors of the Controller backplane. The PSU-240516 module has two independent overvoltage protection circuits. This makes the module suitable for safe applications without maintenance checks on regular intervals.
The FC-PSU-240516 V1.1 Honeywell Power Supply Unit may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-PSU-240516 V1.1 Power Supply Unit Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PSU-240516 module has a galvanic isolation of:
≥ 2.5 kVdc between the 24 V DC input and the 5 V DC outputs.
≥ 1 kVdc between the 24 V DC and the casing of the PSU-240516.
≥ 1.5 kVdc between the 5 V DC outputs and the casing of the PSU-240516
Chassis Integration: Designed for direct insertion into the main safety controller backplane chassis (compatible with rackmount chassis models CPCHAS-0001, CPCHAS-0002, or CPCHAS-0003).

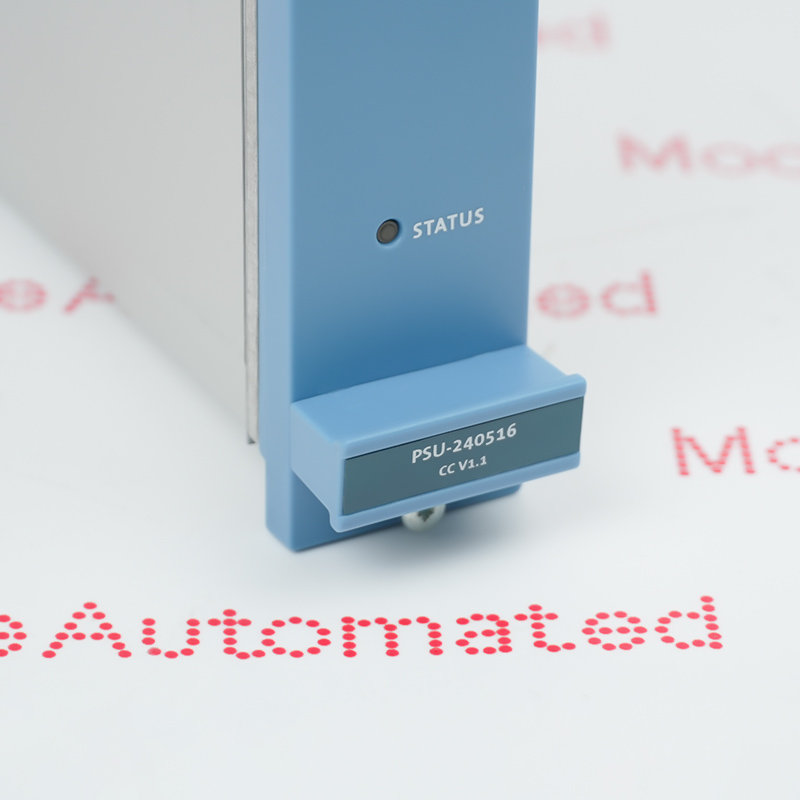

Hardware Type: Standard models are prefixed with "FS," while harsh or high-humidity environments require the FC-PSU-240516 CC version, which features a conformal coated circuit board.
