Features:

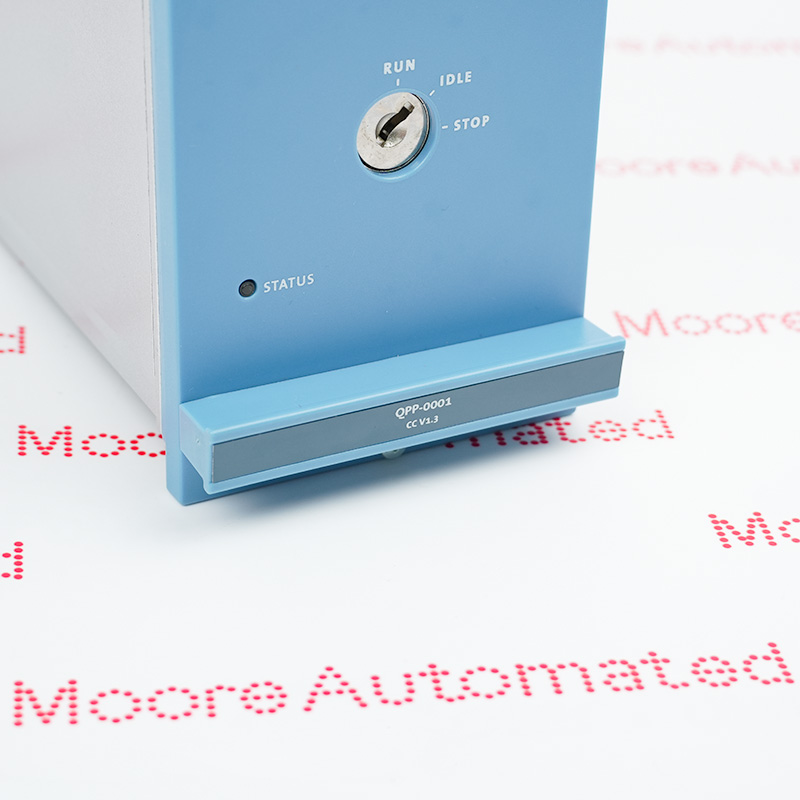

- Quad Processor Pack Module
- Processing module of Safety Manager and is located in the Controller chassis
- Flash memory for system and application program
The four-processor unit is the core of the safety manager, responsible for controlling all system operations. The QPP-0001 module reads I/O input signals and executes controller files created by the user in a graphical function logic diagram (FLD). The execution results of the controller files are then transmitted to the output interfaces.
In a safety manager configuration employing redundant controllers, two QPP-0001 modules operate synchronously via a dedicated redundant communication link between the two control processors. Continuous testing of the safety manager hardware by the QPP-0001 modules ensures the safety of process control and provides comprehensive diagnostics for the system and process equipment.
The FC-QPP-0001 V1.3 Honeywell Quad Processor Pack may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-QPP-0001 V1.3 Quad Processor Pack Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The QPP-0001 module contains two processors and two sets of memory. A hardware data comparator compares every read and write operation by the processors and triggers a watchdog timer when any data discrepancies are detected. Additional test hardware allows for comprehensive testing of the QPP-0001 modules, achieving over 99% diagnostic coverage.
