Features:
- Relay Modules with FlashScan
- The built-in type recognition function can automatically identify these devices in the control panel
- SEMS screws with clamping plates for wiring ease

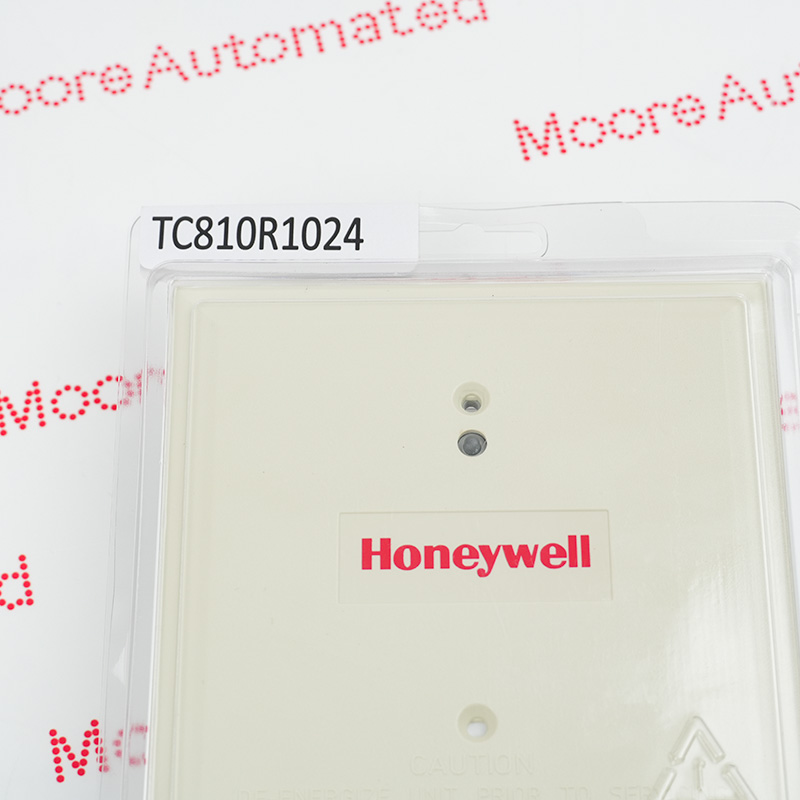

The TC810R1024(CDN) addressable relay module provides dry contact outputs for activating various auxiliary devices such as fans, dampers, and control equipment. Its addressable nature allows for manual or panel-programmed activation of the dry contacts in selected modes.
FlashScan is a communication protocol that significantly improves communication speed between analog smart devices. These devices communicate in groups. When a device in the group receives a new message, the control panel's CPU stops polling the entire group and instead focuses on processing the single message from that device. Ultimately, its response time is more than five times faster than other designs.
The TC810R1024 Honeywell Relay Modules may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell TC810R1024 Relay Modules Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each TC810R1024 (CDN) uses one of 159 possible module addresses in the SLC loop (99 in the CLIP loop). It responds to periodic polling of the control panel and reports its type and status, including the open/normal/short circuit status of its Notification Device Circuit (NAC). An LED flashes each time a poll is received. Upon receiving a command, it activates its internal relay.
The TC810R1024(CDN) TC810R1024(CDN) may be programmed to programmed to operate dry con- operate dry contacts for applications such as door holders or tacts for applications such as door holders or Air Handling Unit Handling Unit shutdown, and to reset four-wire smoke detect shutdown, and to reset four-wire smoke detector power.
