Features:
- Communication Interface Module for the documented ICS Triplex Trusted.
- Category Series: Trusted 8000 Series.
- Voltage Supply: 24V DC.
T8151C belongs to the ICS Triplex Trusted and performs the documented communication interface module role in the ICS Triplex Trusted TMR safety system. The retained technical evidence records Category Series: Trusted 8000 Series; Voltage Supply: 24V DC; Frequency Response: 50...60 Hz - 5...5 %. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the ICS Triplex Trusted receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The T8151C Communication Interface Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
ICS Triplex T8151C Communication Interface Module Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Network Fit: T8151C performs the communication interface module function within the ICS Triplex Trusted. The retained documentation identifies category series as Trusted 8000 Series; apply that value only to this documented execution.

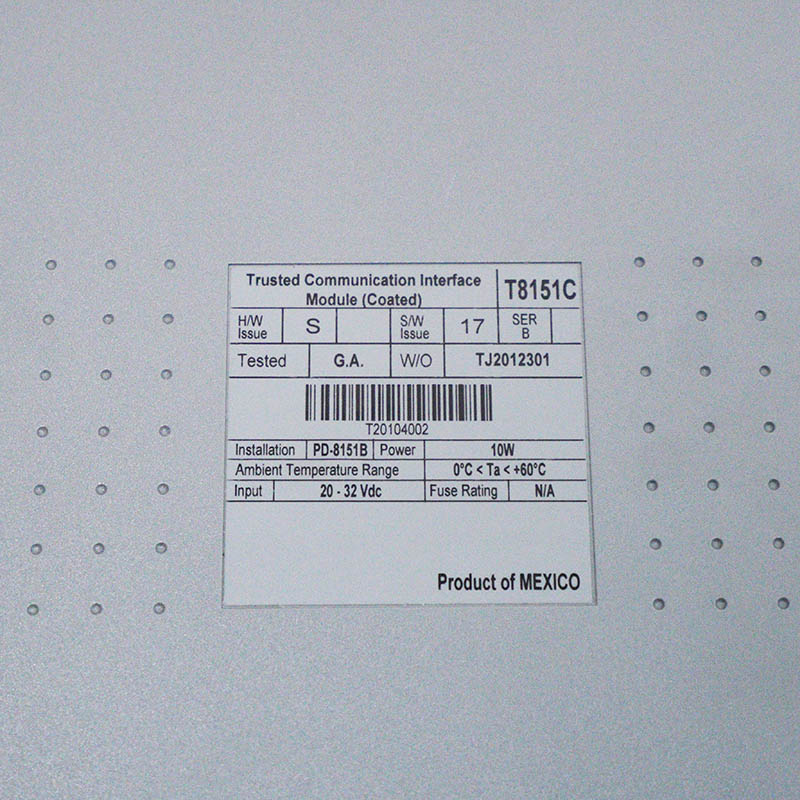

Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
System Alignment: approve T8151C only for the documented ICS Triplex Trusted TMR safety system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Startup Testing: isolate the equipment, remove stored energy and inspect the receiving hardware before installing T8151C.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
