Features:
- Analogue input has sixteen (T9432) isolated
- Triple Modular Redundant (TMR), fault tolerant (3-2-0) operation
- Hardware Implemented Fault Tolerant (HIFT) architecture
The Trusted TMR processor is a fault-tolerant design based on a Triple Module Redundancy (TMR) architecture, operating in a synchronous configuration. Figure 1 illustrates the basic structure of the Trusted TMR processor module in a simplified manner.
The module comprises three Processor Fault Isolation Regions (FCRs). Each FCR contains an NXP PowerQUICC® II™ series processor and its associated memory (EPROM, DRAM, Flash ROM, and Flash RAM), memory-mapped I/O, a voter, and glue logic. Each processor FCR employs a 2/3 (2oo3) read permission voting mechanism to vote on the memory systems of the other two processor FCRs to eliminate operational discrepancies.
The T9432 ICS triplex Analogue input has sixteen (T9432) isolated may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ICS Triplex T9432 Analogue input module maunal(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

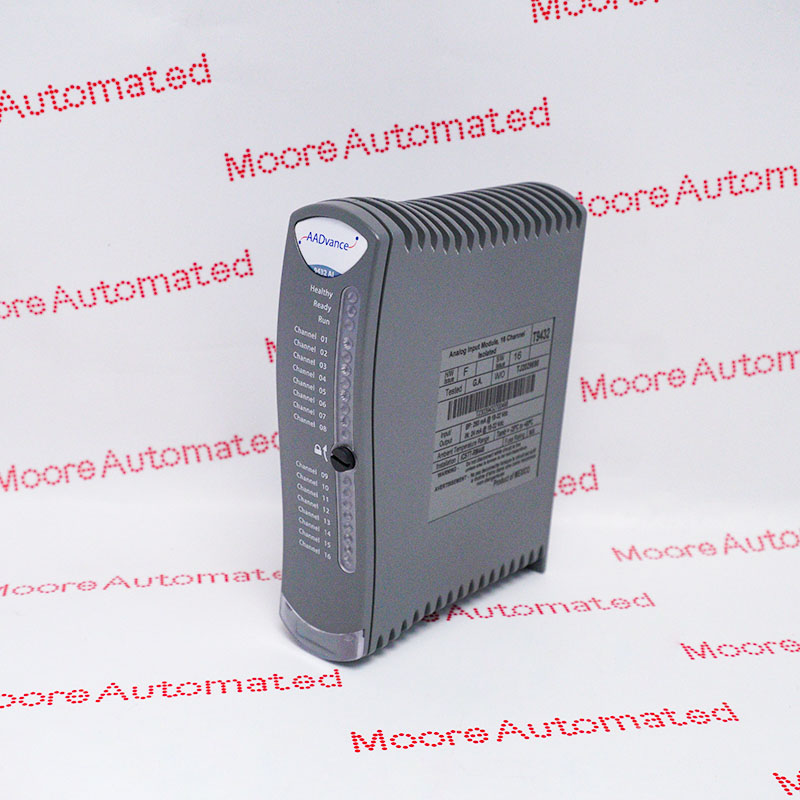

The input module displays local module and channel status via LED indicators on its front panel. This information can be linked to application variables and viewed on the workbench. Comprehensive system and module-level diagnostics provide clear indications, facilitating rapid maintenance and repair.
The T9432 is suitable for safety-critical and high-reliability environments for monitoring and controlling various analog quantities:
Process Variable Monitoring: Connects to various field sensors, such as temperature, pressure, flow, and level sensors, to acquire real-time data from industrial processes.
Safety Instrumented Systems (SIS): Commonly used in Emergency Shutdown (ESD) systems, fire and gas (F&G) protection, and burner management systems (BMS).
Critical Process Control: Applied to industries such as oil and gas, power generation, chemicals, and pharmaceuticals, where continuous monitoring is crucial to preventing business losses or environmental damage.
Product Notification 2025-06-002: If your device uses HART communication in a 4-20 mA meter circuit, please note that Rockwell Automation states that enabling HART may cause T9432 input value fluctuations or channel failures. Please check your AADvance system firmware to determine if your hardware version requires filtering or a firmware patch.
