Features:
- High-performance termination cable
- Used in the Foxboro (Invensys/Schneider Electric) I/A Series Distributed Control System (DCS)

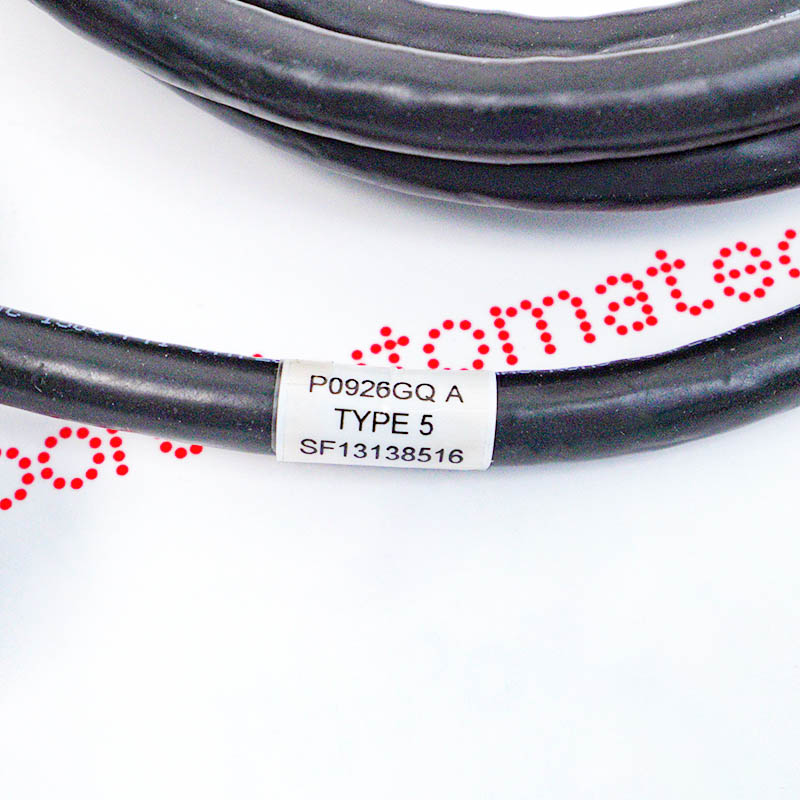

- It is specifically a Type 5 Hypalon termination cable designed to connect Fieldbus Modules (FBMs) to termination assemblies (TAs)
The core function of this component is to provide a robust physical mounting interface and electrical connection support for FBM modules (such as FBM201, FBM237, etc.), acting as a bridge between field signal lines and the control system. It supports analog or digital signal inputs, allowing users to quickly and accurately connect field instruments via screw terminals or pluggable connectors.
This component plays a crucial role in system reliability and maintenance. Its durable, industry-standard design effectively distributes cable stress, preventing loosening due to vibration or pulling. The P0926GQ typically integrates signal conditioning and protection circuitry, providing pre-filtering and physical isolation for input and output signals.
The P0926GQ Invensys Foxboro Termination cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Invensys Foxboro P0926GQ Termination cable datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Compliant with the Modbus protocol
- Provides RS-232, RS-422, or RS-485 communication interface standards
- Integrates Modbus slave device data into
- the I/A series control database
- Suitable for installation in Class 1 Zone 2 and Zone 2 locations when used with its matching Terminal Equipment (TA)
- DCS Signal Integration: Connects Foxboro 200 series FBMs (e.g., FBM224, FBM230, and FBM231) to field terminals.
- Harsh Environments: Designed for power plants and petrochemical facilities, especially suitable for G3 (harsh) environments as defined by the ISA S71.04 standard.
- Communication Protocols: Supports multiple electrical interface standards, including RS-232, RS-422, and RS-485, for connecting field devices such as modems, converters, or sensors to the main control network.
